Tutorial
2–30
TDS 500D, TDS 600B, & TDS 700D User Manual

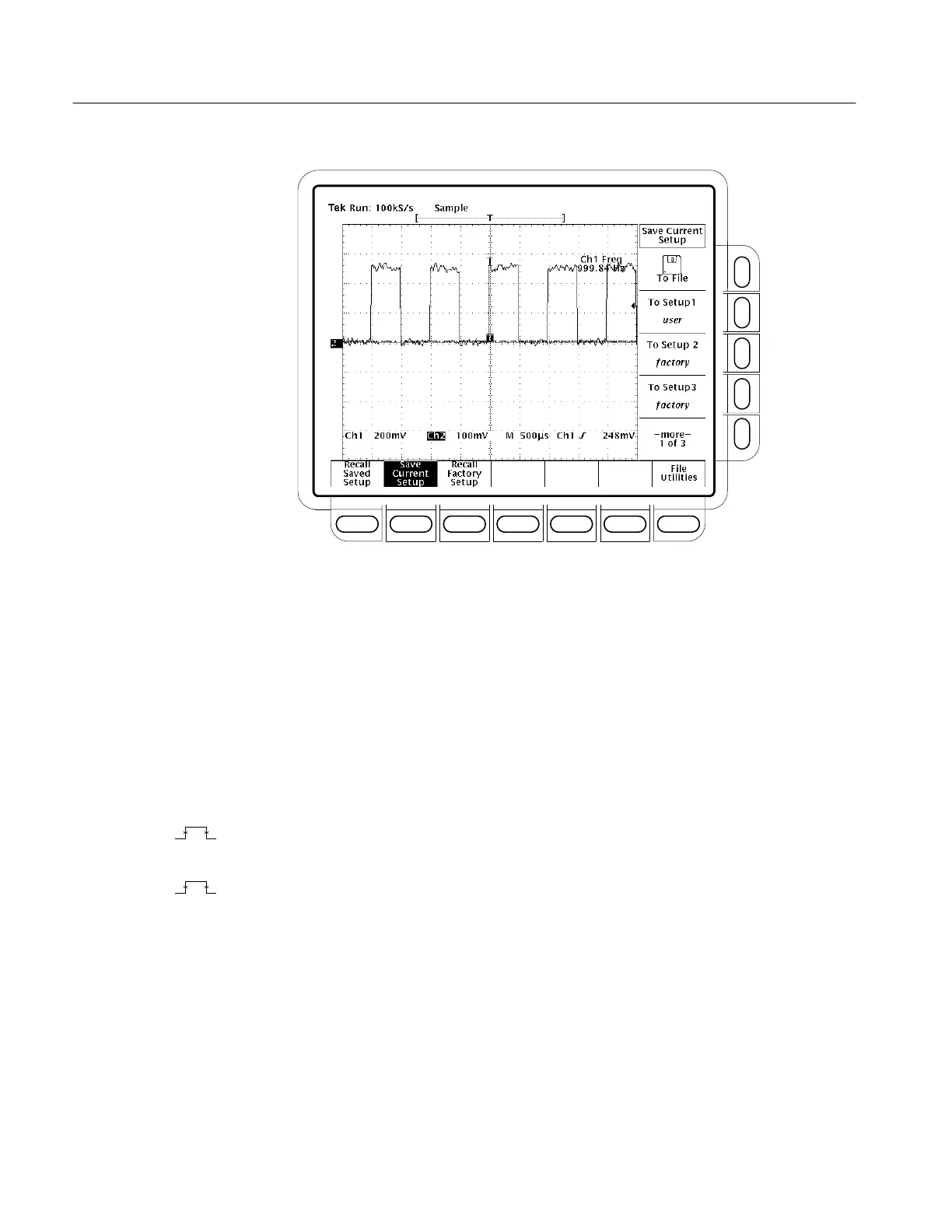

Figure 2–18: Save/Recall Setup Menu
7. Press one of the To Setup side menu buttons to store the current instrument
settings into that setup location. Remember which setup location you
selected for use later.
There are more setup locations than can be listed at one time in the side
menu. The –more– side menu item gives you access to all the setup
locations.
Once you have saved a particular setup, you can change the settings as you
wish, knowing that you can come back to that setup at any time.
8. TDS 600B models: Press MEASURE ➞ Positive Width (side) to add that
measurement to the display.
9. TDS 500D and TDS 700D models: Press MEASURE ➞ Measure
(pop-up) ➞ Positive Width (side) to add that measurement to the display.
