Saving Waveforms and Setups
3–176
TDS 500D, TDS 600B, & TDS 700D User Manual
2. TDS 500D and TDS700D: Press the SAVE/RECALL SETUP button to
bring up the Save/Recall Setup menu, or press SAVE/RECALL WAVE-
FORM ➞ Normal or Extended (pop-up) to bring up the Save/Recall
Waveform menu, or press the SHIFT HARDCOPY button to bring up the
Hardcopy menu.
3. Press File Utilities in the main menu to bring up the File Utilities side menu.
(See Figure 3–78.)
NOTE. The amount of free space on the active disk is shown in the upper right
corner of the display. The oscilloscope shows the amount in Kbytes (or in Mbytes
if the free space is 1 Mbyte or more). To convert the amount to bytes, you simply
multiply the Kbytes amount times 1024. Thus, the 690 Kbytes shown in
Figure 3–78 = 690 Kbytes x 1024 bytes/Kbyte = 706,560 bytes.

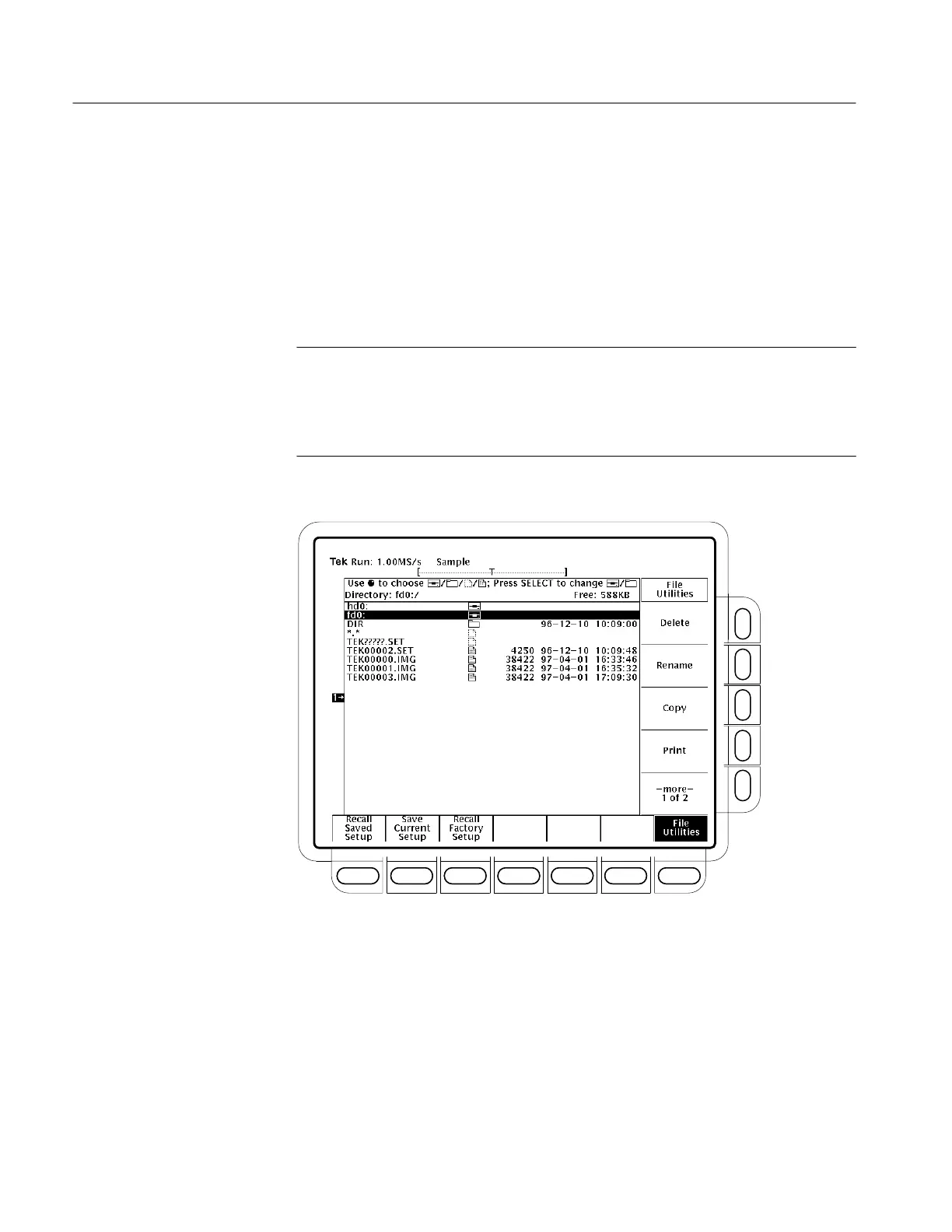

Figure 3–78: File Utilities
