Measuring Waveforms
3–134
TDS 500D, TDS 600B, & TDS 700D User Manual
The delay measurement lets you measure from an edge on the selected waveform
to an edge on another waveform. To take a delay measurement, do the following
steps:
1. TDS 600B: Press MEASURE ➞ Select Measrmnt (main) ➞ Delay
(side) ➞ Delay To (main) ➞ Measure Delay to.
2. TDS 500D and TDS 700D: Press MEASURE ➞ Measure (pop-up) ➞
Select Measrmnt (main) ➞ Delay (side) ➞ Delay To (main) ➞ Measure
Delay to.
3. Press Measure Delay to (side) repeatedly to choose the delay to waveform.
The choices are Ch1, Ch2, Ch3, Ch4, Math1, Math2, Math3,Ref1, Ref2,
Ref3, and Ref4.

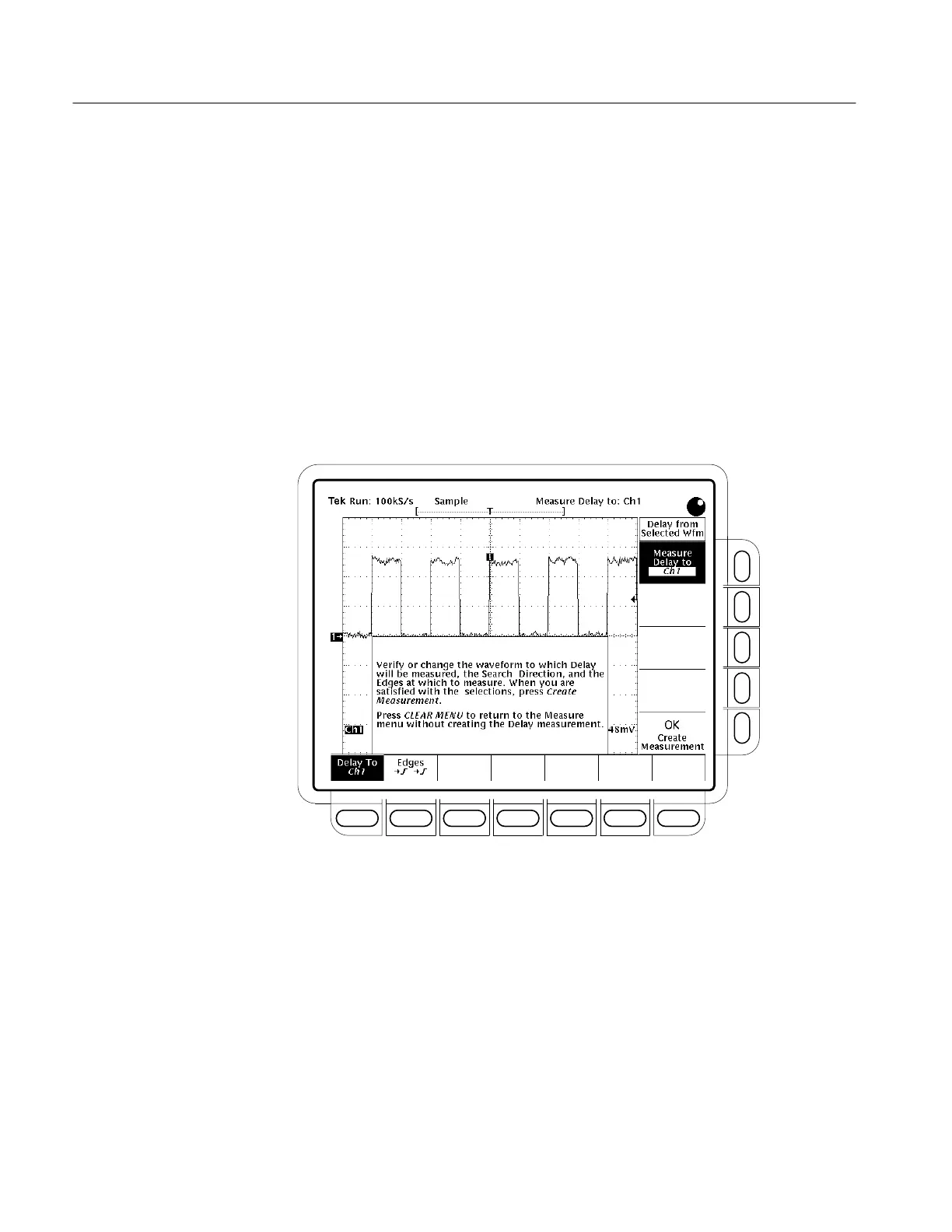

Figure 3–63: Measure Delay Menu — Delay To
The steps just performed select the waveform you want to measure to; note
that the waveform you are measuring delay from is the selected waveform.
(See Figure 3–63.)
Take a Delay
Measurement
