Maintenance
TDS1000 and TDS2000 Series Digital Storage Oscilloscopes Service Manual
6-- 19
You will need a torque-limiting Torx T-15 screwdriver and pliers for this
procedure.
Removal. To remove the display cable, refer to Figure 6--10 and follow these
steps:
1. Remove the power button and rear case using the procedures on page 6--10.
2. Untwist the cable tie to release the display cable.
3. Disconnect the display cable at J201 on the main board by pulling straight up
from the connector.
4. Disconnect the display cable on the display module by pulling it through the
horizontal slot on the chassis.
Display cable slot on
the chassis
Display cable
Main board J201

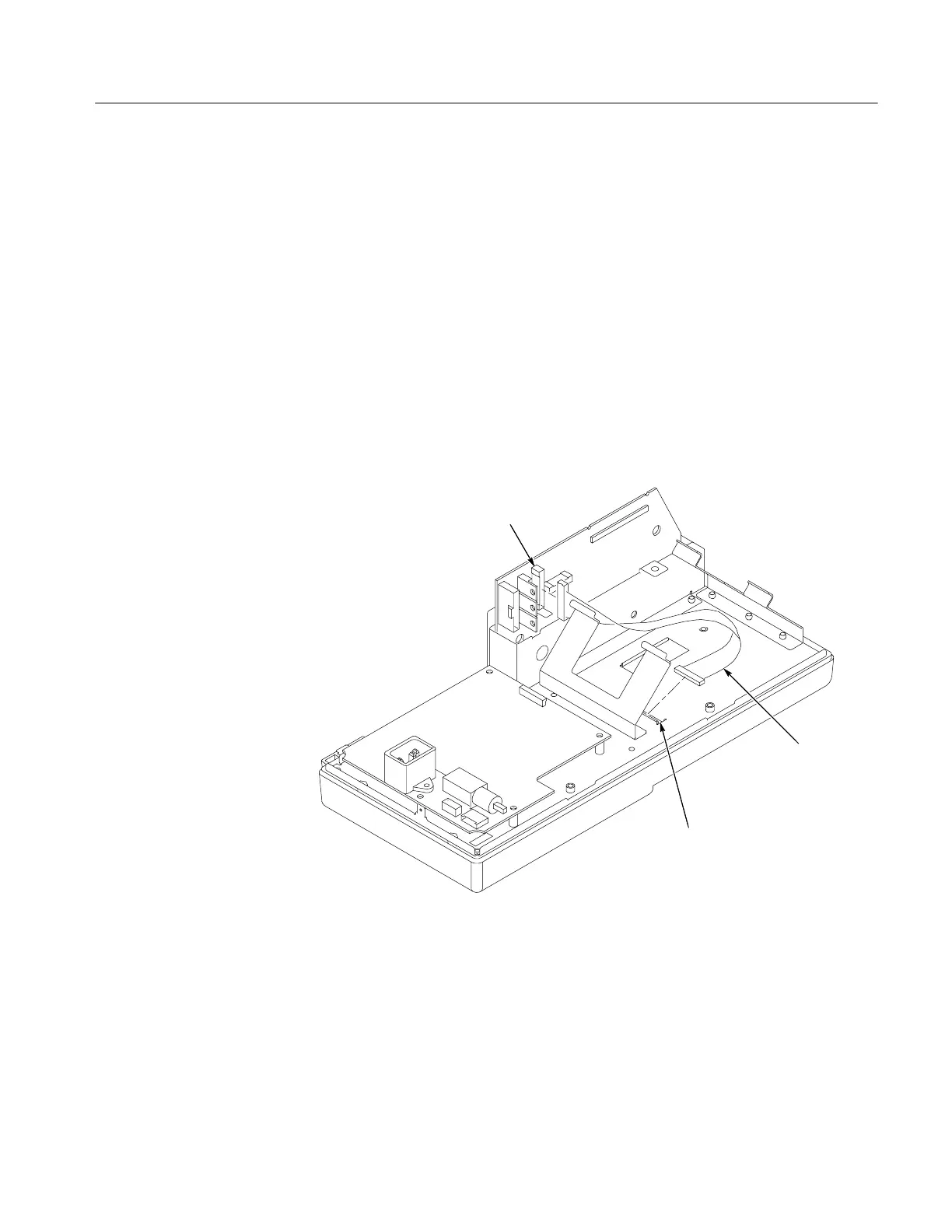

Figure 6--10: Removing the display cable
