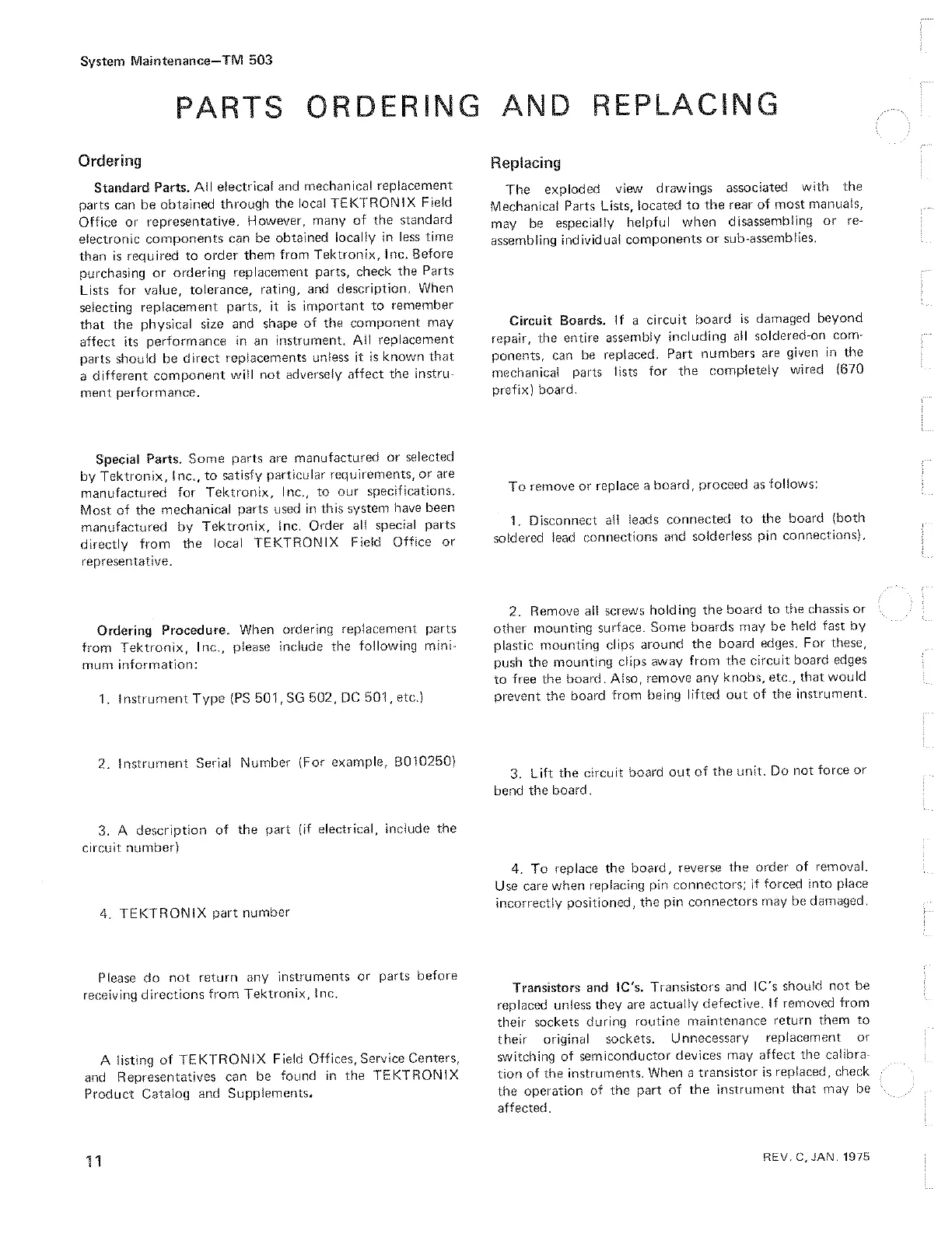

System
Maintenance—TM
503
PARTS
ORDERING
AND
REPLACING
Ordering
Standard
Parts.
All
electrical
and
mechanical
replacement
parts
can
be
obtained
through
the
local
TEKTRONIX
Field
Office
or
representative.
However,
many
of
the
standard
electronic
components
can
be
obtained
locally
in
less
time
than
is
required
to
order
them
from
Tektronix,
Inc.
Before
purchasing
or
ordering
replacement
parts,
check
the
Parts
Lists
for
value,
tolerance,
rating,
and
description.
When
selecting
replacement
parts,
it
is
important
to
remember
that
the
physical
size
and
shape
of
the
component
may
affect
its
performance
in
an
instrument.
All
replacement
parts
should
be
direct
replacements
unless
it Is
known
that
a
different
component
will
not
adversely
affect
the
instru-
ment
performance.
Special
Parts.
Some
parts
are
manufactured
or
selected
by
Tektronix,
Inc.,
to
satisfy
particular
requirements,
or
are
manufactured
for
Tektronix,
Inc.,
to
our
specifications.
Most
of
the
mechanical
parts
used
in
this
system
have
been
manufactured
by
Tektronix,
Inc.
Order
all
special
parts
directly
from
the
local
TEKTRONIX
Field
Office
or
representative.
Ordering
Procedure.
When
ordering
replacement
parts
from
Tektronix,
Inc.,
please
include
the
following
mini-
mum
information:
1.
Instrument
Type
(PS
501,
SG
502,
DC
501,
etc.)
2.
Instrument
Serial
Number
(For
example,
BO10250)
3.
A
description
of
the
part
(if
electrical,
include
the
circuit
number)
4.
TEKTRONIX
part
number
Please
do
not
return
any
instruments
or
parts
before
receiving
directions
from
Tektronix,
Inc.
A
listing
of
TEKTRONIX
Field
Offices,
Service
Centers,
and
Representatives
can
be
found
in
the
TEKTRONIX
Product
Catalog
and
Supplements.
V1
Replacing
The
exploded
view
drawings
associated
with
the
Mechanical
Parts
Lists,
located
to
the
rear
of
most
manuals,
may
be
especially
helpful
when
disassembling
or
re-
assembling
individual
components
or
sub-assembles.
Circuit
Boards.
if
a
circuit
board
is
damaged
beyond
repair,
the
entire
assembly
including
all
soldered-on
com-
ponents,
can
be
replaced,
Part
numbers
are
given
in
the
mechanical
parts
lists
for
the
completely
wired
(670
prefix)
board.
To
remove
or
replace
a
board,
proceed
as
follows:
1.
Disconnect
all
leads
connected
to
the
board
(both
saidered
lead
connections
and
solderless
pin
connections},
2.
Remove
all
screws
holding
the
board
to
the
chassis
or
other
mounting
surface.
Some
boards
may
be
held
fast
by
plastic
mounting
clips
around
the
board
edges.
For
these,
push
the
mounting
clips
away
from
the
circuit
board
edges
to
free
the
board.
Also,
remove
any
knobs,
etc.,
that
would
prevent
the
board
from
being
lifted
out
of
the
instrument.
3.
Lift
the
circuit
board
out
of
the
unit.
Do
not
force
or
bend
the
board.
4.
To
replace
the
board,
reverse
the
order
of
removal.
Use
care
when
replacing
pin
connectors;
if
forced
into
place
incorrectly
positioned,
the
pin
connectors
may
be
damaged.
Transistors
and
iC’s.
Transistors
and
IC’s
should
not
be
replaced
unless
they
are
actually
defective.
If
removed
from
their
sockets
during
routine
maintenance
return
them
to
their
original
sockets.
Unnecessary
replacement
or
switching
of
semiconductor
devices
may
affect
the
calibra-
tion
of
the
instruments.
When
a
transistor
is
replaced,
check
the
operation
of
the
part
of
the
instrument
that
may
be
affected.
REV.C,
JAN.
1975
