TM 503

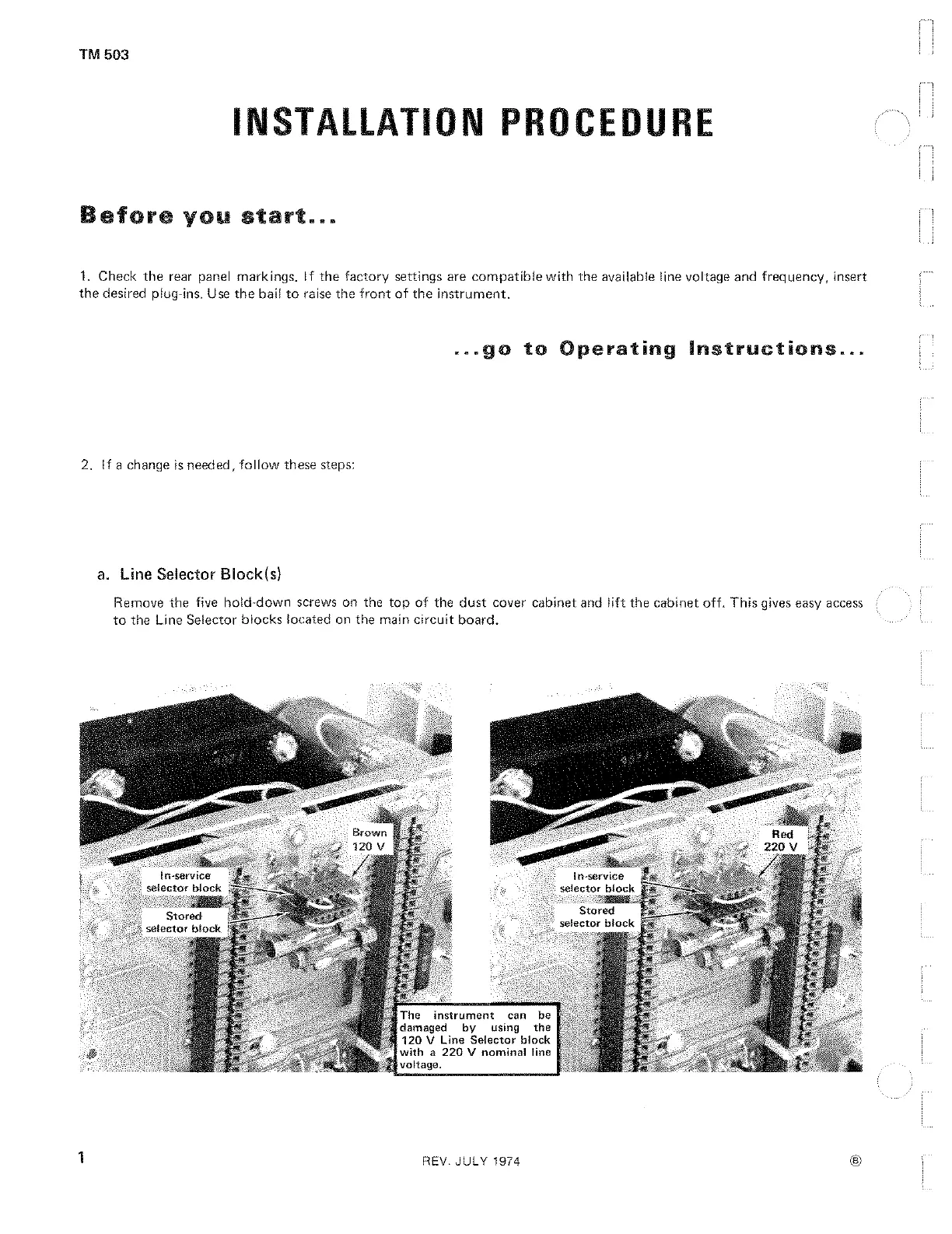

INSTALLATION PROCEDURE
Before you start...
1. Check the rear panel markings. If the factory settings are compatible with the available line voltage and frequency, insert
the desired plug-ins. Use the bail to raise the front of the instrument.
-.-g0 to Operating Instructions...
2. if a change is needed, follow these steps:
a. Line Selector Block(s)
Remove the five hold-down screws on the top of the dust cover cabinet and lift the cabinet off. This gives easy access
to the Line Selector blocks located on the main circuit board.
In-service
@ athe instrument can be
ig damaged by using the
4120 V Line Sefector block
with a 220 V nominal tine
oltage.
1 REV. JULY 1974 ®
