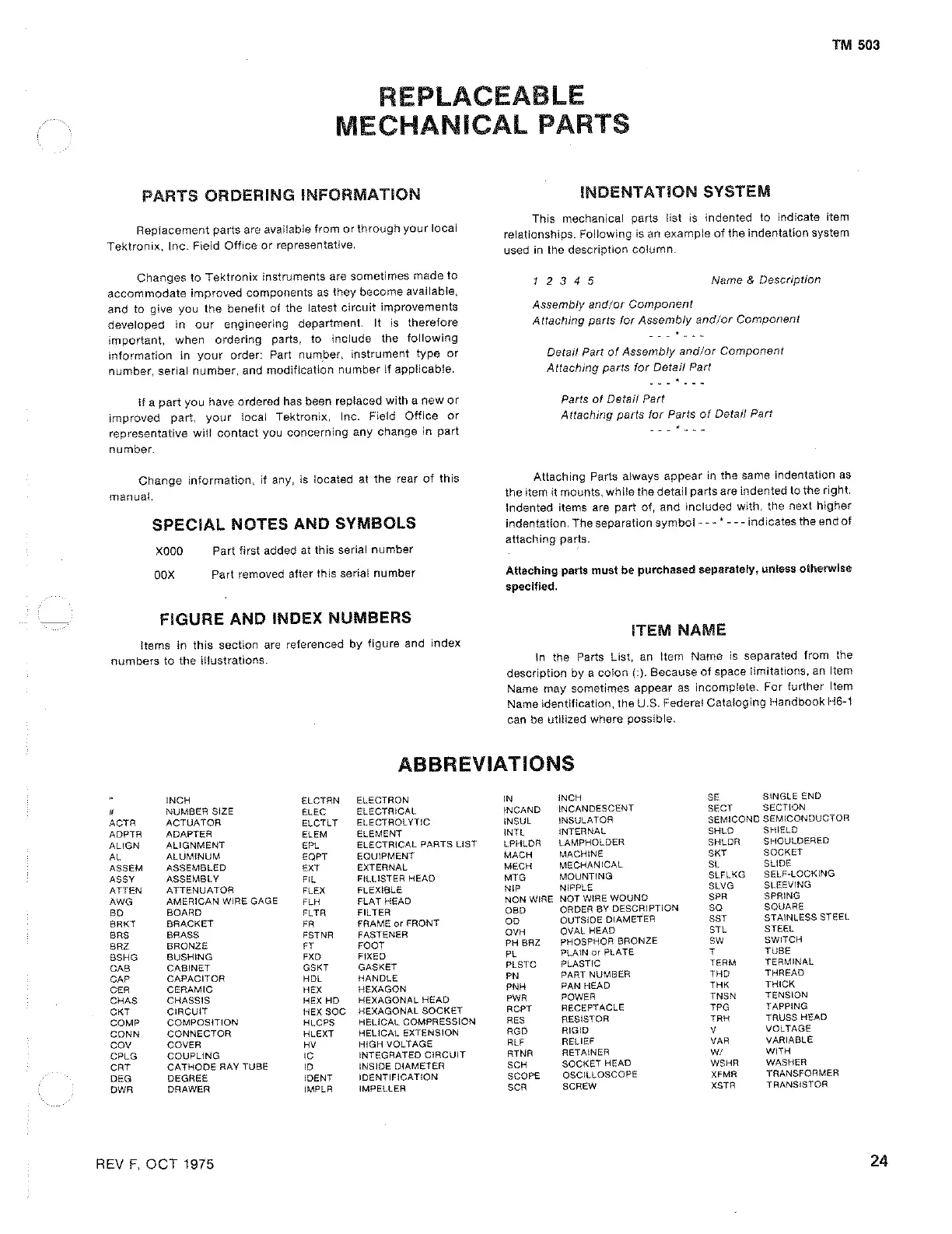

REPLACEABLE
MECHANICAL PARTS
PARTS ORDERING INFORMATION
Replacement parts are available from or through your local
Tektronix, Inc. Field Office or representative.
Changes to Tektronix instruments are sometimes made to
accommodate improved components as they become available,
and to give you the benefit of the latest circuit improvements
developed in our engineering department. It is therefore
important, when ordering parts, to include the following
information in your order: Part number, instrument type or
number, serial number, and modification number if applicable.
lf a part you have ordered has been replaced with a new or
improved part, your local Tektronix, Inc. Field Office or
representative will contact you concerning any change in part
number.
Change information, if any, is located at the rear of this
manual.
SPECIAL NOTES AND SYMBOLS
xo00 Part first added at this serial number
00x Part removed after this serial number
FIGURE AND INDEX NUMBERS
Htems in this section are referenced by figure and index
numbers to the illustrations.
INDENTATION SYSTEM
This mechanical parts list is indented to indicate item
relationships. Following is an example of the indentation system
used in the description column.
12346 Name & Description
Assembly and/or Component
Attaching parts for Assembly and/or Component
Detail Part of Assembly and/or Component
Attaching parts for Detail Part
Parts of Detail Part
Altaching parts for Parts of Detail Part
Attaching Parts always appear in the same indentation as
the item it mounts, while the detail parts are indented to the right.
indented items are part of, and included with, the next higher
indentation. The separation symbol - -~ * -- - indicates the end of
attaching parts.
Attaching parts must be purchased separately, untess otherwise
specified.
ITEM NAME
In the Parts List, an ttem Name is separated from the
description by a colon (:). Because of space fimitations, an Item
Name may sometimes appear as incomplete. For further Item
Name identification, the U.S. Federal Cataloging Handbook H6-1
can be utilized where possible,
ABBREVIATIONS
“ INCH ELCTRN ELECTRON
# NUMBER SIZE ELEC ELECTRICAL
ACTA ACTUATOR ELCTLT ELECTROLYTIC
ADPTR ADAPTER ELEM ELEMENT
ALIGN ALIGNMENT EPL ELECTRICAL PARTS LIST
AL ALUMINUM EQPT EQUIPMENT
ASSEM ASSEMBLED EXT EXTERNAL
ASSY ASSEMBLY Fit. FILLISTER HEAD
ATTEN ATTENUATOR FLEX FLEXIBLE
AWG AMERICAN WIRE GAGE FLH FLAT HEAD
BD BOARD FLTR FILTER
BRKT BRACKET FR FRAME or FRONT
BRS BRASS FSTNR FASTENER
BRZ BRONZE FT FOOT
BSHG BUSHING FXO FIXED.
CAB CABINET GSKT GASKET
CAP CAPACITOR HBL HANDLE
CER CERAMIC HEX HEXAGON
CHAS, CHASSIS HEX HD HEXAGONAL HEAD
CKT CIRCUIT HEX SOC HEXAGONAL SOCKET
COMP COMPOSITION HLCPS HELICAL COMPRESSION
CONN CONNECTOR HLEXT HELICAL EXTENSION
cov COVER HV HIGH VOLTAGE
CPLG COUPLING ic INTEGRATED CIRCUIT
CRT CATHODE RAY TUBE 1D INSIDE DIAMETER
DEG DEGREE IDENT IDENTIFICATION
DWR DRAWER IMPLR IMPELLER
REV F, OCT 1975
iN INCH SE SINGLE END
INCAND
INCANDESCENT
SECT
SECTION
INSUL,
INSULATOR
SEMICOND
SEMICONDUCTOR
INTE INTERNAL SHLD SHIELD
LPHLOR
LAMPHOLDER
SHLOR
SHOULDERED
MACH MACHINE SKT SOCKET
MECH MECHANICAL SL SLIDE
MTG
MOUNTING
SLFLKG
SELF-LOCKING
NIP
NIPPLE
SLVG
SLEEVING
NON
WIRE
NOT
WIRE
WOUND
SPR
SPRING
OBD
ORDER
BY
DESCRIPTION
sQ
SQUARE
oD
OUTSIDE
DIAMETER
sst
STAINLESS
STEEL
OVH
OVAL
HEAD
STL
STEEL
PH
BRZ
PHOSPHOR
BRONZE
sw
SWITCH
Pt
PLAIN
or
PLATE
T
TUBE
PLSTC
PLASTIC
TERM
TERMINAL
PN
PART
NUMBER
THD
THREAD
PNH
PAN
HEAD
THK
THICK
PWR POWER TNSN TENSION
ROPT RECEPTACLE TPG TAPPING
RES
RESISTOR
TRH
TAUSS
HEAD
RGD RIGID v VOLTAGE
RLF RELIEF VAR VARIABLE
RTNR RETAINER Wi WITH
SCH
SOCKET
HEAD
WSHR
WASHER
SCOPE
OSCILLOSCOPE
XFMR
TRANSFORMER
SCR
SCREW
XSTR
TRANSISTOR
