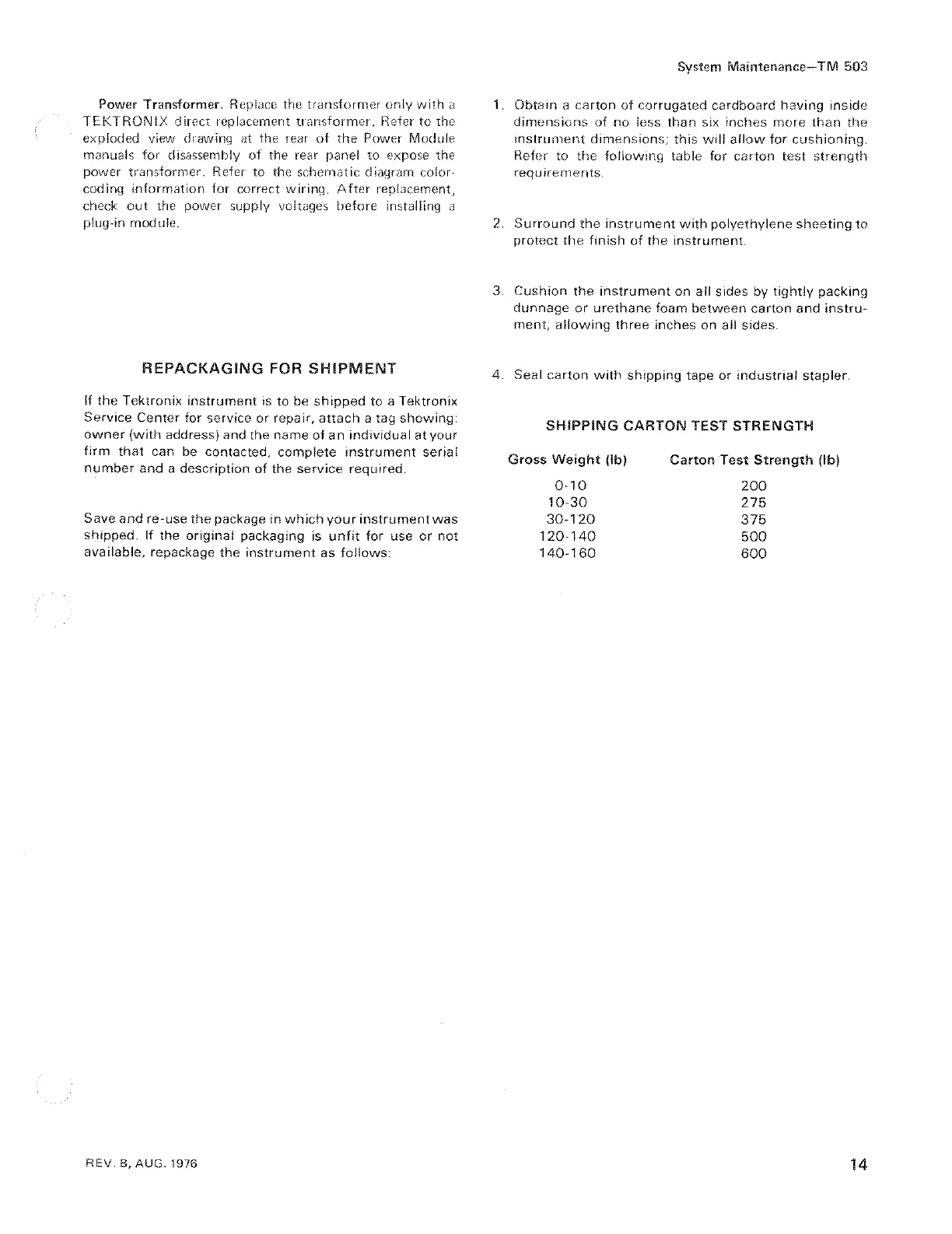

Tektronix TM 503 User Manual

Power Transformer, Replace the transformer only with a
TEKTRONIX direct replacement transformer, Refer to the
exploded view drawing at the rear of the Power Module
manuals for disassembly of the rear panel to expose the
power transformer. Refer to the schematic diagram color
coding information for correct wiring. After replacement,
check out the power supply voltages before installing a
plug-in module.
REPACKAGING FOR SHIPMENT
Hf the Tektronix instrument is to be shipped to a Tektronix
Service Center for service or repair, attach a tag showing:
owner (with address) and the name of an individual at your
firm that can be contacted, complete instrument serial
number and a description of the service required.
Save and re-use the package in which your instrument was
shipped. lf the original packaging is unfit for use or not
available, repackage the instrument as follows:
REV. B, AUG. 1976
System Maintenance—-TM 503
. Obtain a carton of corrugated cardboard having inside
dimensions of no less than six inches more than the
instrument dimensions; this will aflow for cushioning.
Refer to the following table for carton test strength
requirements,
protect the finish of the instrument.
. Surround the instrument with polyethylene sheeting to
Cushion the instrument on ail sides by tightly packing
dunnage or urethane foam between carton and instru-
ment, allowing three inches on all sides.
. Seal carton with shipping tape or industrial stapler.
SHIPPING CARTON TEST STRENGTH
Gross Weight (Ib)
0-10
10-30
30-120
120-140
140-160
Carton Test Strength (Ib)
200
275
375
500
600
