Tektronix TM 503 User Manual

TMS503 POWER MODULE

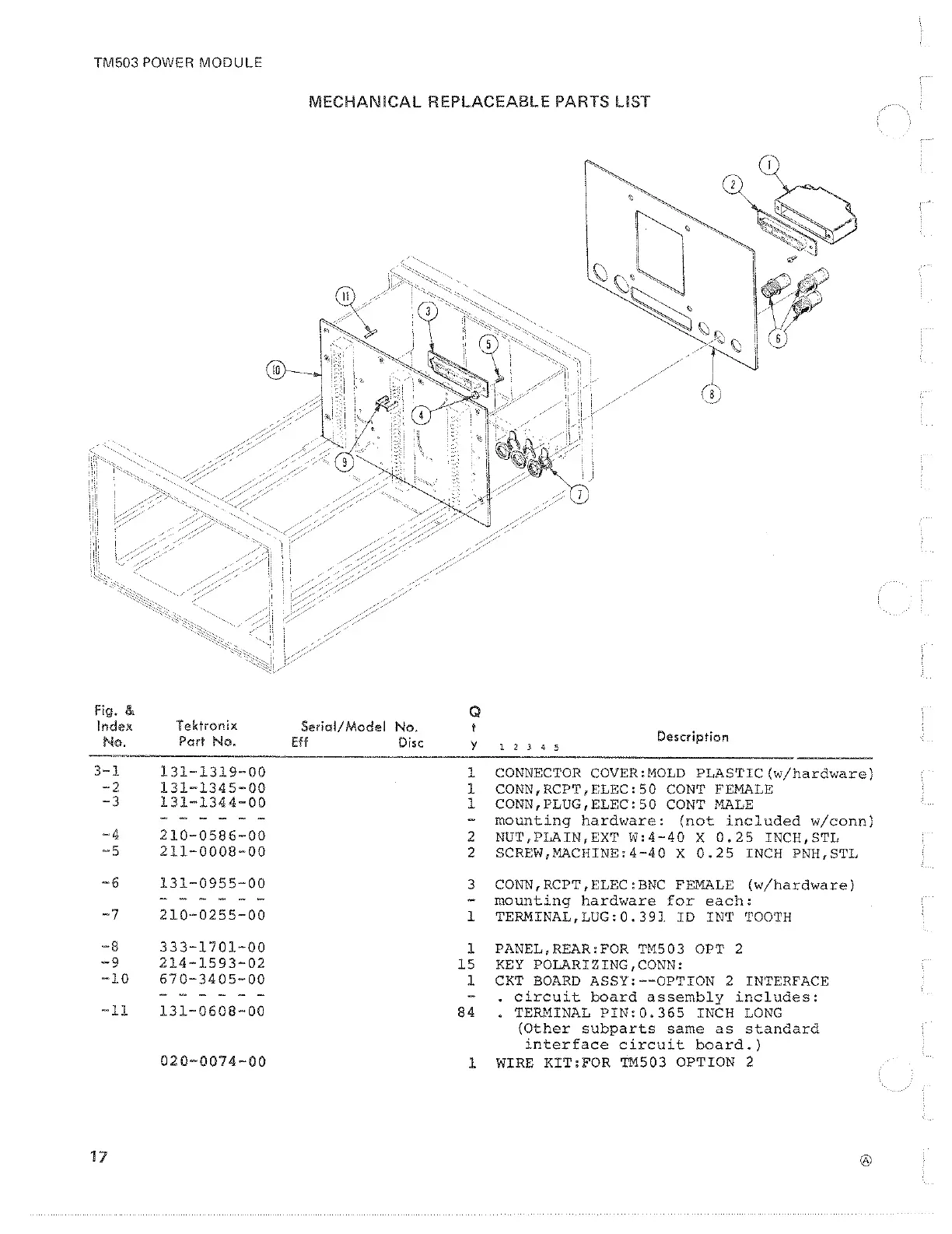

MECHANICAL REPLACEABLE PARTS LIST
Fig. & Q
Index Tektronix Serial/Model No. t D te
Nea.
Part
No.
Eff
Dise
Y
re365
escription
3-1 133-1319-00 1 CONNECTOR COVER:MOLD PLASTIC (w/hardware)
“2 131-1345-00 L CONN, RCPT,ELEC:50 CONT FEMALE
~3 131-1344-00 1 CONN, PLUG,ELEC:50 CONT MALE
me ~ mounting hardware: (not included w/conn}
74 210-0586-00 2 NUT,PLAIN, EXT W:4-40 X 0.25 INCH,STL
“5 211-0008~-00 2 SCREW,MACHINE:4-40 X 0.25 INCH PNH,STL
~6 131-0955-00 3. CONN, RCPT,ELEC:BNC FEMALE (w/hardware)
ee ~ mounting hardware for each:
~7 210-0255-00 1 TERMINAL,LUG:0.391 ID INT TOOTH
~8 333-1701~00 1 PANEL,REAR:FOR TM503 OPT 2
“9 214-1593~02 15 KEY POLARIZING,CONN:
-10 670~3405~00 1 CKT BOARD ASSY:--OPTION 2 INTERFACE
me - . circuit board assembly includes:
~il 131-0608~-00 84 « TERMINAL PIN:0.365 INCH LONG
(Other subparts same as standard
interface circuit board.)
020~0074-00 1 WIRE KIT:FOR TM503 OPTION 2
17
®
