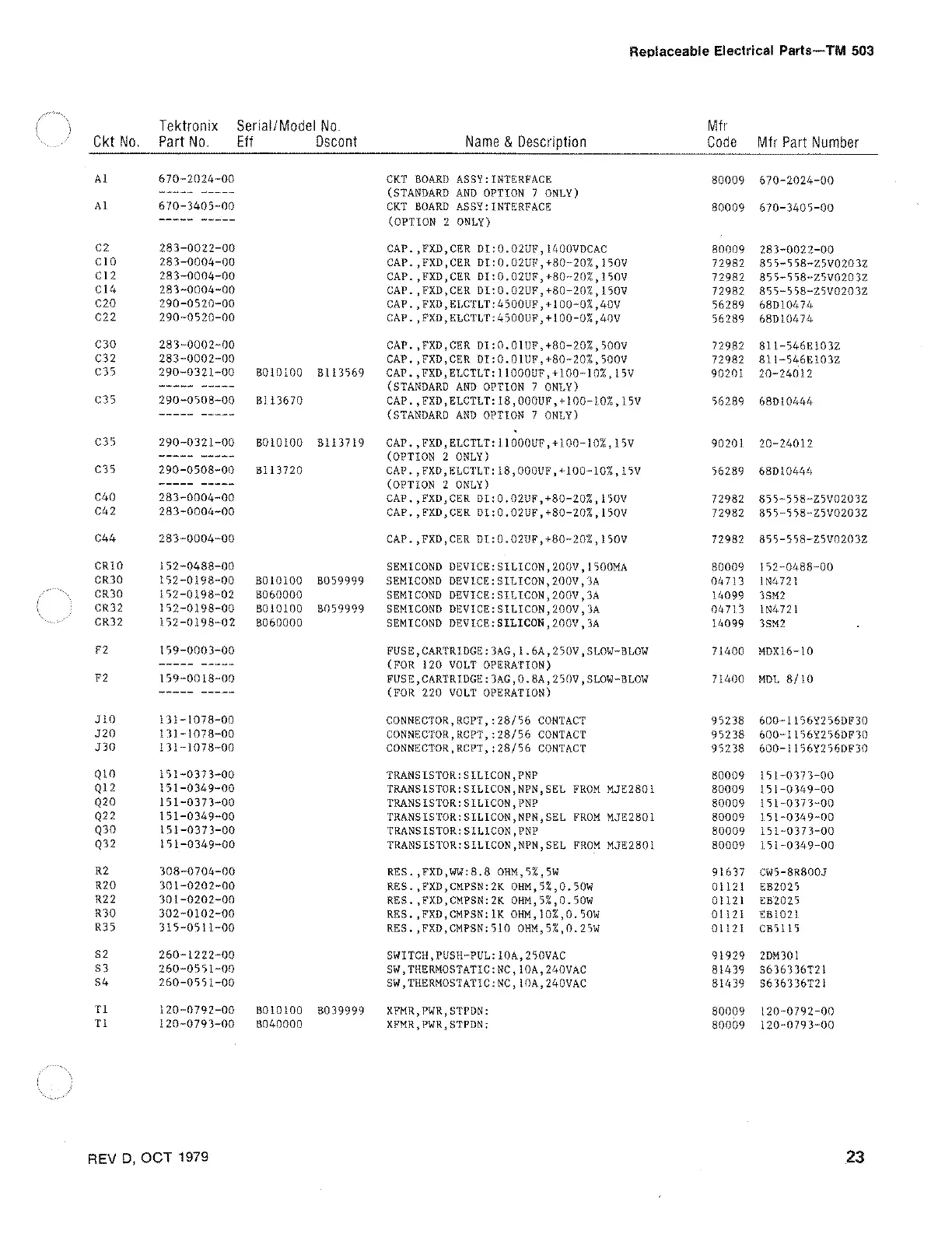

Replaceable Electrical Parts-—-TM 503
Tektronix Serial/Model No. Mfr
CktNo. PartNo. = Eff Dscont Name & Description Code Mfr Part Number
AL €70-2024-00 CKT BOARD ASSY: INTERFACE 80009 670-2024-00
women wooo (STANDARD AND OPTION 7 ONLY)
AL 670-3405-00 CRT BOARD ASSY: INTERFACE 80009 670-3405-00
Soon wean (OPTION 2 ONLY)
cz 283-0022-00 CAP. ,FXD,CER DI:0.02UF, 1400VDCAC 80909 283-0022-00
c10 283-0004-00 CAP, ,FXD,CER DI:0,02UF, +80-20%, 150V 72982 855~558-Z5V0203Z
c12 283-0004-00 CAP. ,FXD,CER DI:0,02UF,+80-20%, 150V 72982 855-558-Z5V02032
cl4 283-0004~00 CAP. ,FXD,CER DI:0,02UF,+80-20%, 150V 72982 855-558-25V02032
€20 290-0520-00 CAP. , FXD, ELCTLT: 4500UF , +100-0%, 40V 56289 68D10474
622 290-0520-00 CAP. , FXD, ELCTLT: 4500UF , +100-0%, 40 56289 68D10474
630 283-0002~00 CAP. ,FXD,CER DI:0.01UF,+80-20%, 500V 72982 811-546E103Z
€32 283-0002-00 CAP, ,FXD,CER DI:0.01UF,+80-20%, 500V 72982 811-546E1032Z
C35 290-0321-00 BO10100 B113569 CAP. , FXD, ELCTLT: 11000UF, +100-10%, 15V 90201 20-24012
were wee (STANDARD AND OPTION 7 ONLY)
C35 290-0508-00 B113670 CAP. ,FXD,ELCTLT: 18, OOGUF,+100-L0%, 15V 56289 68D10444
(STANDARD AND OPTION 7 ONLY)
C35 290-0321-00 BO10100 B113719 CAP, , FXD, ELCTLT: 11000UF ,+100-10%, 15V 90201 20-24012
(OPTION 2 ONLY)
c35 290-0508-00 —_B113720 CAP. , FXD,ELCTLT: 18, OO0UF,+100-10%, 15V 56289 68D10444
motos cere (OPTION 2 ONLY)
c40 283-0004-00 CAP. ,FXD,CER DI:0,02UF,+80-20%, 150V 72982 855~558-Z5V0203Z
C42 283-0004-00 CAP, ,FXD,CER DI:0.02UF,+80-20%, 150V 72982 855-558-25V02032Z
Cae 283-0004~-00 CAP. ,FXD,CER DI:0.02UF,+80-20%, 150¥ 72982 855-558-25102032
cRLO 152-0488-00 SEMICOND DEVICE: SILICON, 200V, 1500MA 80009 152-0488-00
CR30 152-0198-00 BO10100 B059999 = SEMICOND DEVICE: SILICON, 200V, 3A 04713 1N4721
CR30 152-0198-02 8060000 SEMICOND DEVICE: SILICON, 200V,3A 14099 3SM2
CR32 152-0198-00 BO10100 BO59999 SEMIECOND DEVICE: SILICON, 200V, 3A 04713 1N4721
CR32 152-0198-02 8060000 SEMICOND DEVICE: SILICON, 200V, 3A 14099 3SM2
F2 159-0003-00 FUSE, CARTRIDGE: 3AG, 1.6A, 250V, SLOW-BLOW 71400 MDK16-10
weece ween (FOR 120 VOLT OPERATION)
F2 159-0018~00 FUSE, CARTRIDGE: 3AG, 0.8A, 250V, SLOW-BLOW 71400 MDL 8/10
wane noone (FOR 220 VOLT OPERATION)
J10 131-1078-00 CONNECTOR, RGPT, :28/56 CONTACT 95238 600-1156Y256DF30
J20 131-1078-00 CONNECTOR, RCPT, :28/56 CONTACT 95238 600-1156Y256DF30
J30 131-1078-00 CONNECTOR, RCPT,:28/56 CONTACT 95238 600-1156Y256DF30
Quo 151~-0373-00 TRANSISTOR: SILICON, PNP 80009 151-0373-00
Ql2 151-0349-00 TRANSISTOR: SILICON,NPN,SEL FROM MJE2801 80009 151-0349-00
Q20 151~0373~00 TRANSISTOR: SILICON, PNP 80009 151-0373-00
Q22 151-0349-00 TRANSISTOR: SILICON, NPN,SEL FROM MJE2801 g0009 151-0349-00
Q30 151-0373-00 TRANSISTOR: SILICON, PNP 80009 151-0373-00
Q32 151-0349-00 TRANSISTOR: SILICON,NPN,SEL FROM MJE2801 80009 151-0349-00
R2 308-0704-00 RES. ,FXD,WW:8.8 OHM,5%,5W 91637 CW5-8R8007
R20 301-0202-00 RES. ,FXD,CMPSN: 2K OHM,5%,0.50W 01121 &B2025
R22 301-0202-00 RES. ,FXD,CMPSN: 2K OHM,5%,0.50W 61121 EB2025
R30 302-0102-00 RES. ,FXD,CMPSN: 1K OHM, 10%,0.50W O112L EB1021
R35 315~0511-00 RES, ,FXD,CMPSN:510 OHM,5%,0.25W O1121 ¢B5115
$2 260~1222-00 SWITCH , PUSH-PUL: 10A, 250VAC 91929 2DM301
$3 260-0551-00 SW, THERMOSTATIC: NC, 10A, 240VAC 81439 $636336T21
84 260-0551-00 SW, THERMOSTATIC: NC, 10A, 240VAC 81439 $636336T21
TL 120-0792-00 BOL0100 BO39999 —- XFMR, PWR, STPDN: 80009 120-0792-00
TL 120-0793-00 3040000 XFMR, PWR, STPDN; 80909 120-0793-00
REV D, OCT 1979
