Operating
Instructions—TM
503
BUILDING
A
SYSTEM
Family
Compatibility
Mechanically,
the
plug-in
modules
are
very
similar
to
other
TEKTRONIX
product
families.
However,
they
are
not
electrically
compatible.
Therefore,
the
TM
503
inter-
face
has
barriers
on
the
mating
connectors
between
pins
6
and
7
to
insure
that
incompatible
plug-ins
cannot
be
inserted.
See
Figure
1.
A
compatible
module
will
have
a
matching
slot
between
pins
6
and
7
of
its
main
circuit
board
edge
connector.
This
slot
and
barrier
combination
is
the
primary
keying
assignment.
Another
modules
identifier
for
TM
500-compatible
plug-in
is
the
white
color
of
the
release
latch.
Customizing
the
Interface
The
modularity
of
this
instrumentation
system
provides
for
a
host
of
functions
to
be
performed
by
the
plug-in
modules.
Specific
functions
are
grouped
into
families
or
classes,
of
which
there
may
be
several
plug-in
module
SIGNAL
SOURCE
FAMILY
KEY
MEASUREMENT
FAMILY
KEY
members,
For
instance,
some
classes
are
Power
Supplies,
Signal
Sources,
Measurement
and
so
forth.
Each
modular
member
of
a
functional
family
will
have
a
second
slot
peculiar
to
its
family
assignment
located
in
its
edge
connector.
The
TM
503
user
can
“program”
one
or
more
compartments
to
accept
only
members
of
that
family
by
installing
a
second
barrier
in
the
interface
connector
to
match
the
module's
stot
location.
Entire
TM
503’s
could
be
“programmed”
in
this
manner
to set
up
instrumentation
systems
for
specific
work
functions.
For
extra
barriers
order
TEKTRONIX
Part
Number
214-1593-02.
a
Jumper
wires
can
be
used
to
further
specialize
the
interface.
Compartments
can
be
made
to
‘talk’
to
each
other
by
connecting
jumpers
on
the
back
side
of
the
interface
board,
using
pins
14
through
28,
A-side
and
B-side
both,
of
the
interconnecting
jacks.
See
the
following
description
of
catalog
Option
2.
Refer
to
each
plug-in
module’s
Manual
for
the
1/O
assignments
of
each
pin
at
the
rear
interface.
Once
having
made
interconnections
of
a
specialized
nature,
it is
recommended
that
barriers
be
installed
on
the
interconnecting
jacks
to
insure
module
compatibility
with
the
customized
wiring.
POWER
SUPPLY
FAMILY
KEY
TM
500
FAMILY
KEYING
1B

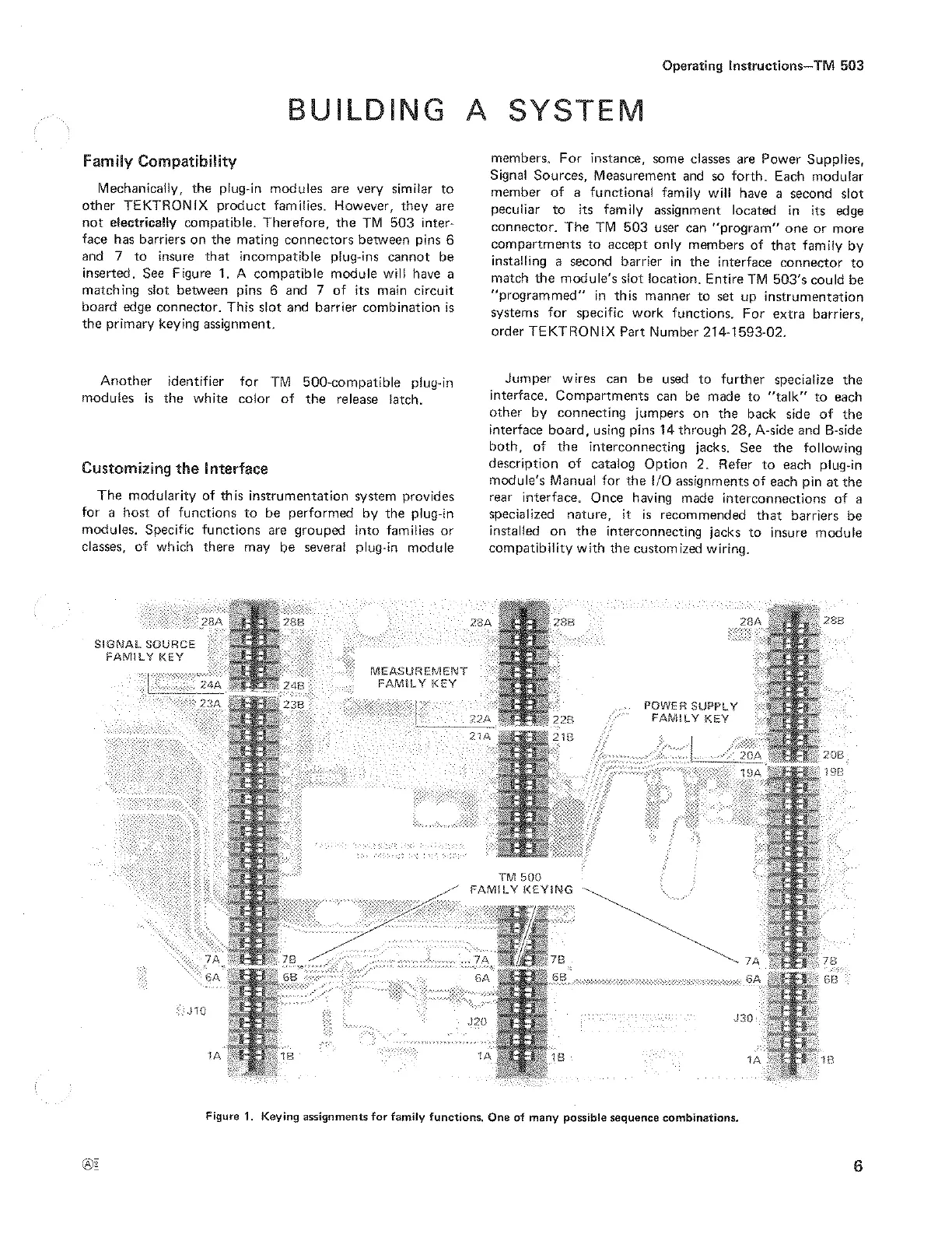

Figure
1.
Keying
assignments
for
family
functions,
One
of
many
possible
sequence
combinations,
