Tekvox TEK 1201-HD User Manual

7.4 HDMI input
HDMI resolution support:
No.
Resolution
No.
Resolution
1
640×480@60 Hz
9
1024×768@70 Hz
2
640×480@72 Hz
10
1024×768@75 Hz
3
640×480@75 Hz
11
1280×1024@75 Hz
4
800×600@56 Hz
12
1280×720P
5
800×600@60 Hz
13
1360×768
6
800×600@72 Hz
14
1920×540
7
800×600@75 Hz
15
1920×1080I
8
1024×768@60 Hz
16
1920×1080P
Digital embedded audio decoding.
Changeable aspect ratios. (Full-screen, wide screen, 4:3, auto-adjust)
Support HDCP 1.3, compatible with DVI signal
7.5 Audio input/output
2 pairs of L/R analog audio input, 4 VGA audio and 2 MIC audio inputs
2x10W@8Ω amplifier output. L/R stereo audio output and HDMI embedded audio.
Volume/Bass/Treble adjustable
Audio status presets, changeable scene mode (Wall-mounted, Desk)
8. OSD Operation (On-Screen-Display)
The TEK 1201-HD provides On Screen Display (OSD) menu, with various functions and language.
The operation includes:

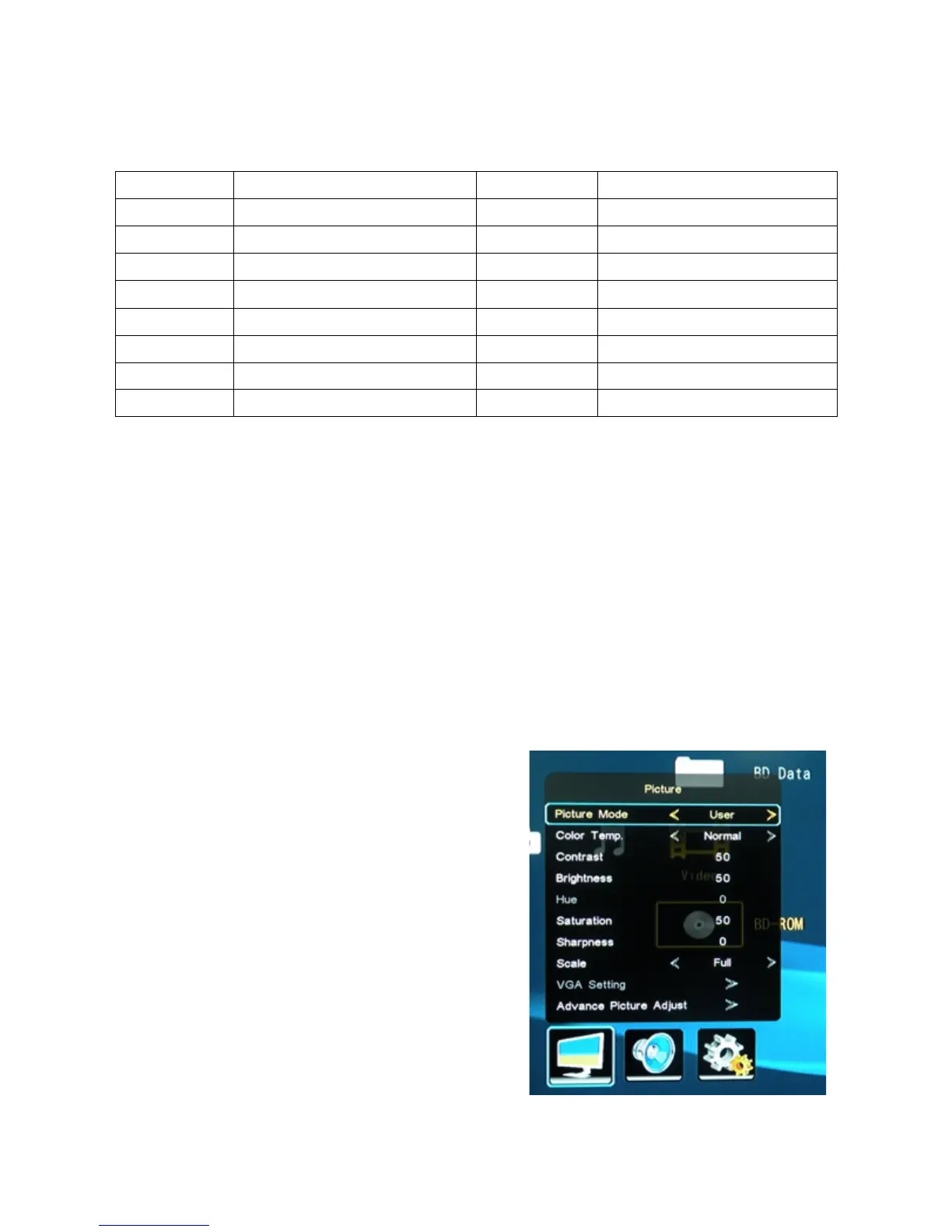

8.1 Picture Settings
The first icon from left of OSD menu is to set the
picture parameters. It includes the pictures mode
preset, color temperature, contrast, brightness,
hue, saturation, sharpness, scale, VGA setting
and Advance picture adjustments. Some
parameters are available depending on the input
type. For example: VGA setting can be set only
when a VGA input is displayed.
The Advance Picture Adjust can set the Digital
Noise Reduction, dynamic color, skin tone and
Adaptive Luma adjustments. DNR is suggested to
be on, it can make the output image clear and
smooth.
