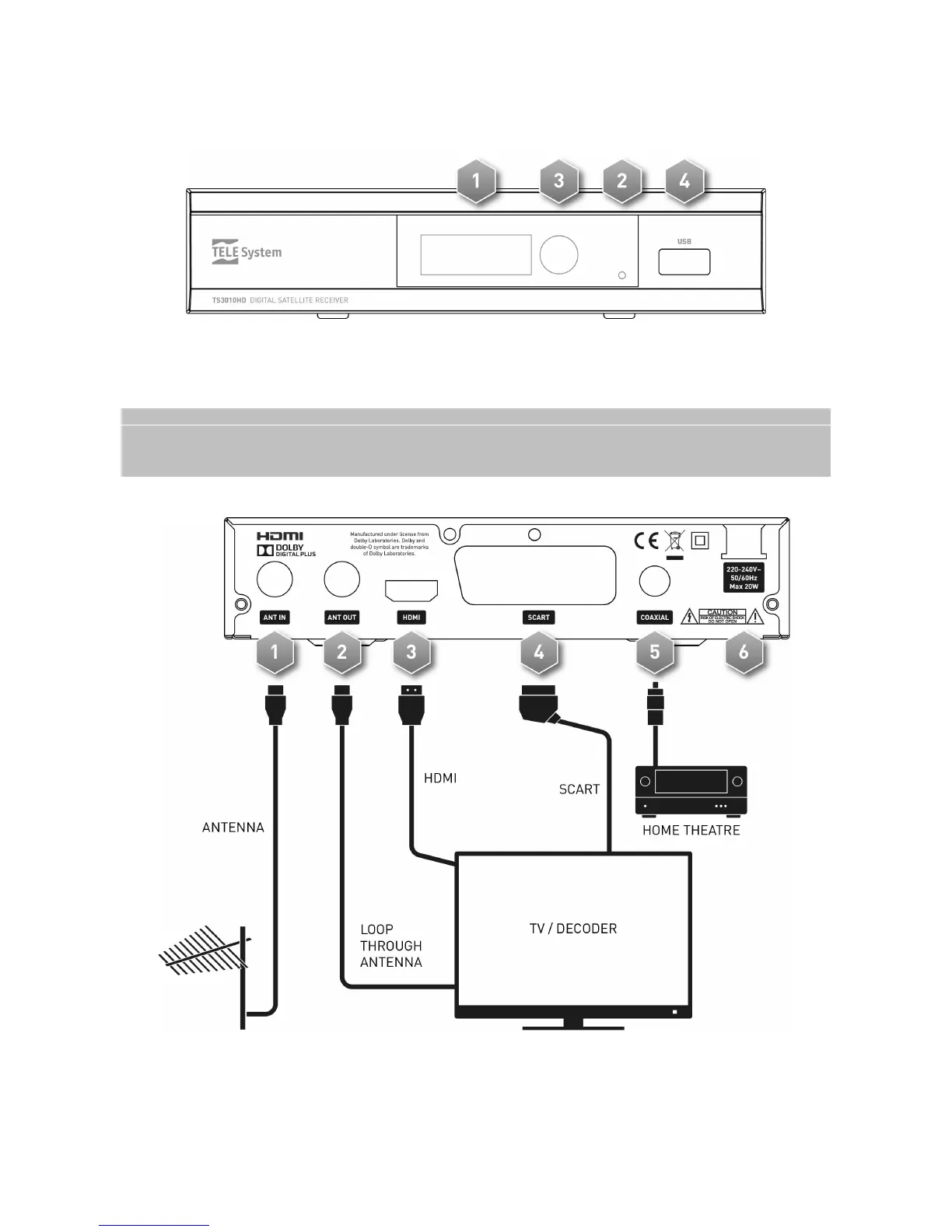

1.2 Product Description
1.2.1 Front panel
1. DISPLAY LED : display, 4-digit, 7-segment
2. LED : LED indicator: green=ON, red=Standby
3. IR Infrared : sensor for remote control
4. USB : USB port for memory device connection (optional).
CAUTION!
Compatible with USB memory devices formatted with FAT32 file systems.
Full compatibility with all USB memory devices on the market is not guaranteed.
Some USB hard-disks could require auxiliary power. It is advised that disks with external power cables be used.
1.2.2 Back panel
1. ANT IN : Antenna input
2. ANT OUT : Antenna output (Loop through)
3. HDMI : HDMI output connection for TV
4. TV SCART : AV SCART output connection for TV
5. COAXIAL (S/PDIF) : Coaxial digital audio output
6. POWER : Mains lead for connection to mains power socket (230V~, 50Hz)
