Installing without the window kit.

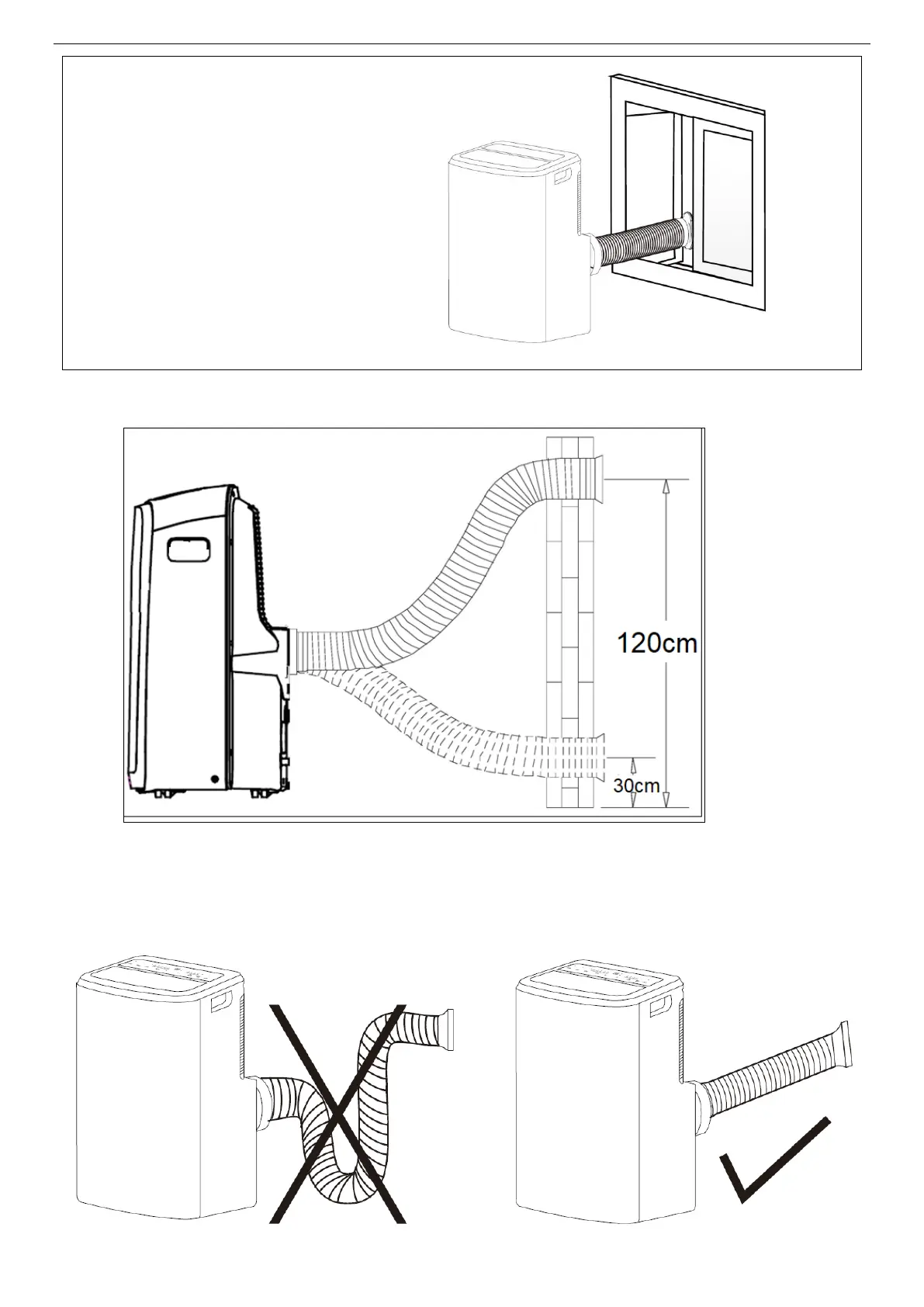

For wall mounting installation, follow below figure:
Attention, wall installation requires a specific connector not supplied. Please contact the manufacturer or
the after sales services to purchase this connector.
Bad versus good setting of the exhaust pipe:
