SYSTEM SETUP
The marking head is designed to be used as a hand-held marker.
Optionally, it may be suspended from a cable balancer or mounted
on a Telesis tool stand.
The following procedures provide only a general overview of
the installation process. For complete installation instructions,
refer to the TMP4500E Installation & Maintenance Manual and
the TMC600 Controller Installation & Maintenance Manual.
The TMC600 is not a sealed unit. Protect it from potentially
damaging conditions and contaminants. Do not block the vents in
case. Ensure the marking system is electrically isolated from any
devices that may generate extreme electromagnetic interference
(EMI).
1. Locate controller as close as practical to marking head.
Standard marker cable length is 4 m (13 ft.).
2. Install the controller as a table-top, wall-mounted, panel-
mounted, or enclosure-mounted unit, as applicable.
3. Ensure controller power switch is OFF.
4. Connect marker cable to controller.
5. Connect power cable to controller.
6. Position controller power switch to ON (on back panel)
to start the marking system software.
7. Adjust pin stroke for impact depth, as required.
TMP4500E MARKING HEAD
Specifications
The TMP4500E marking head specifications are subject to
change without prior notice.
Dimensions .............................. see TMP4500E Hand-Held
Marking Head Dimensions
Rating ...................................... NEMA
®
1 (I.P. 30)
Weight ..................................... 3.82 kg (8.4 lb) marker & cable
3.00 kg (6.6 lb) marker only
Noise ........................................ 81.4 dB (max); 73.1 dB (LEQ)
See Marking Noise for details
Vibration ................................... Does not exceed 2.5 m/s
2
See Vibration Data for details
Marking Area (W x H) .............. 100 x 25 mm (4.0 x 1.0 in.)
Number of Impact Pins ............ 1
Pin Types ................................. 30° or 45° cone angle
Pin Type ................................... Carbide with
30° or 45° cone angle
Pin Stroke (max.) ..................... 8.26 mm (.325 in) Long Throw
4.45 mm (.175 in.) Short Throw
Operating Temp. ...................... 0° to 50°C (32° to 122° F),
non-condensing
Humidity ................................... 10% to 80%

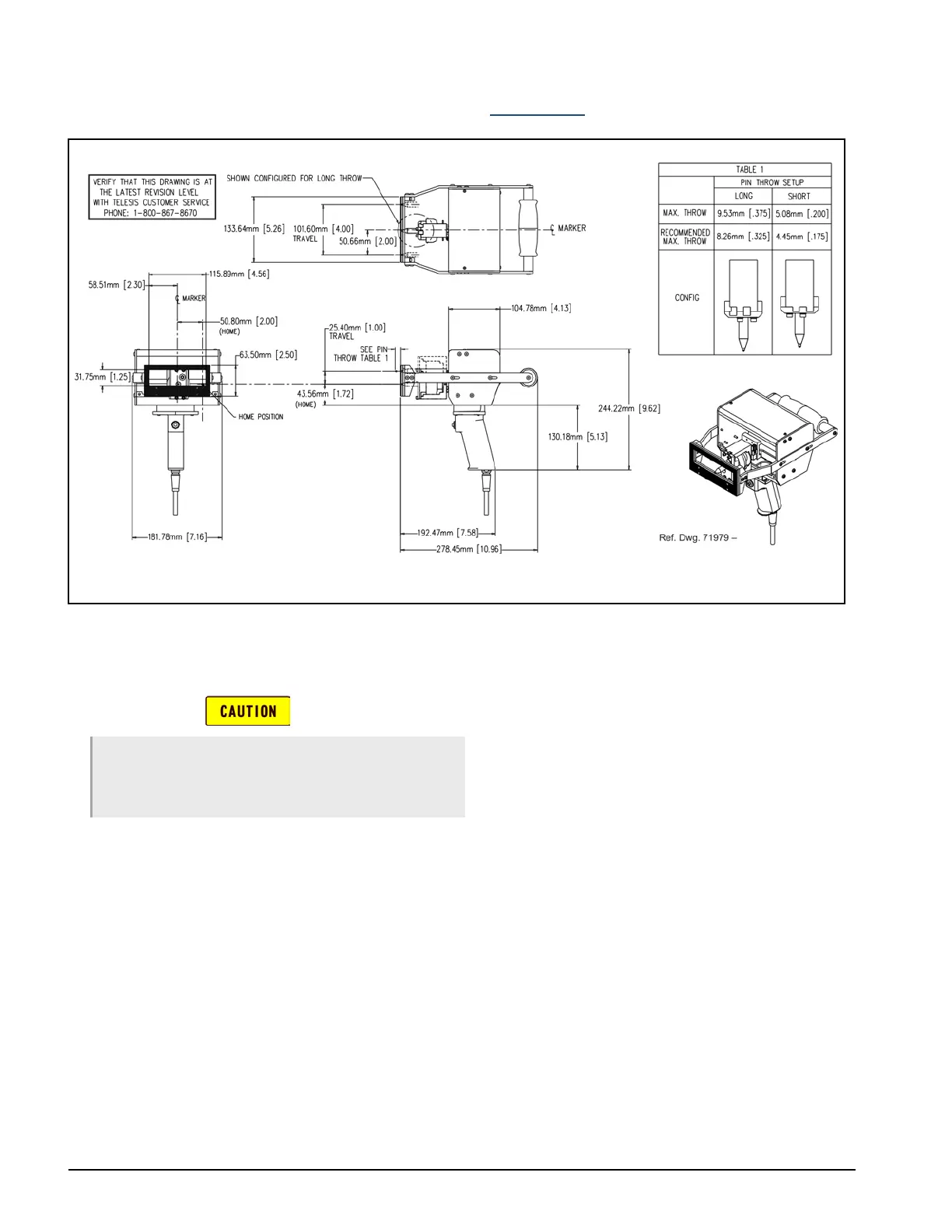

TMP4500E Hand-Held Marking Head Dimensions
