Teleste CXE180 - Front Panel Overview

User Manual CXE180
59300401 Rev.001
26.5.2010 8(12)
Front panel
8910051

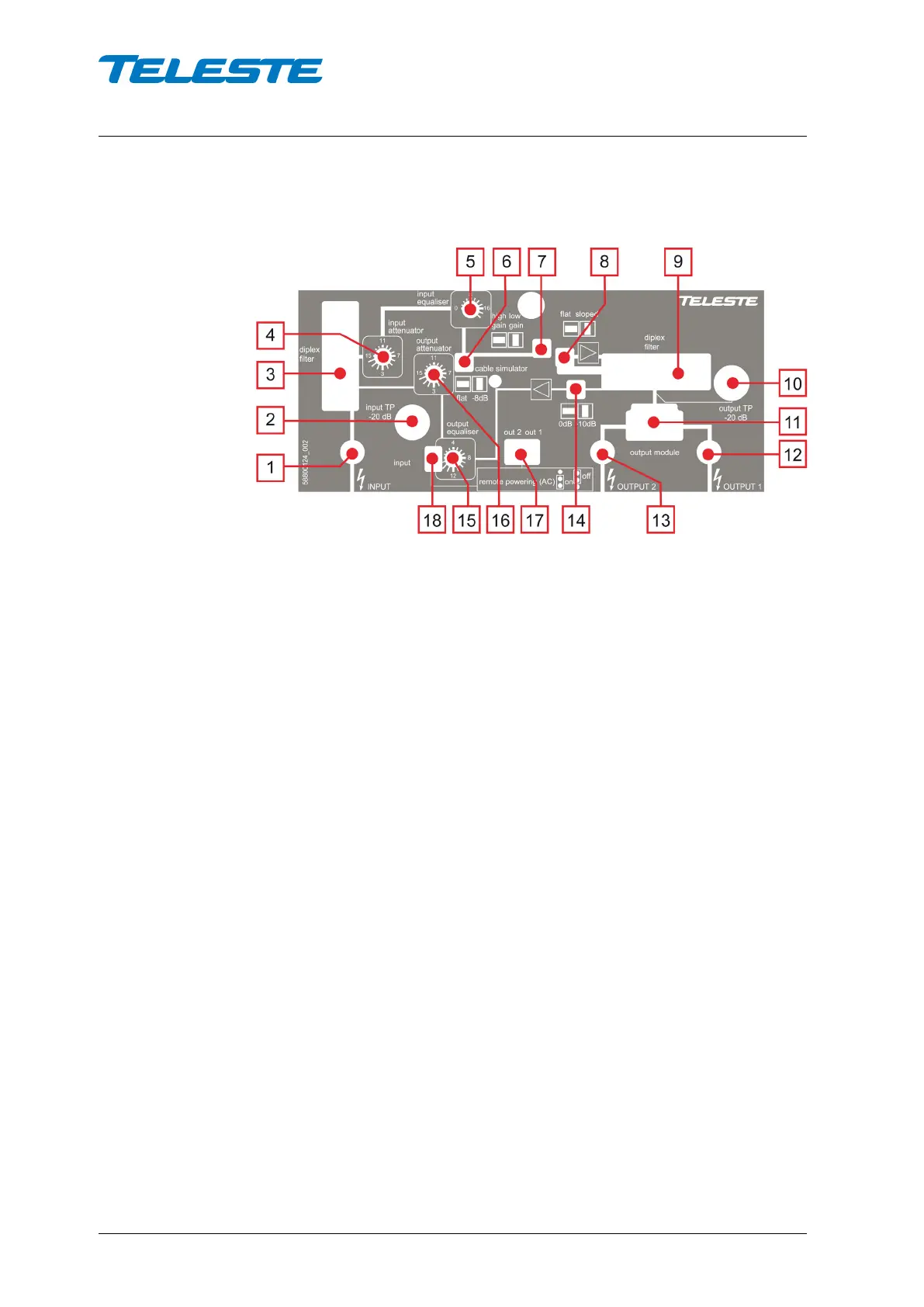

Figure 4. CXE180 Front panel
1) RF input
2) Input test point, -20 dB
transformer
3) Input diplex filter
4) Input attenuator
5) Input equaliser
6) Cable simulator *)
7) Mid stage gain selection
jumper *)
8) Mid stage slope selection
jumper *)
9) Output diplex filter
10) Output test point, -20dB
directional coupler
11) Output module (see table 1)
12) RF output 1
13) RF output 2
14) Return path input attenuator
*)
15) Return path equaliser
16) Return path attenuator
17) Remote powering jumper for
outputs *)
18) Remote powering jumper for
input *)
*) See chapter ‘Jumper settings’
