User Manual CXE180
59300401 Rev.001
26.5.2010 9(12)
Jumper settings
8610040

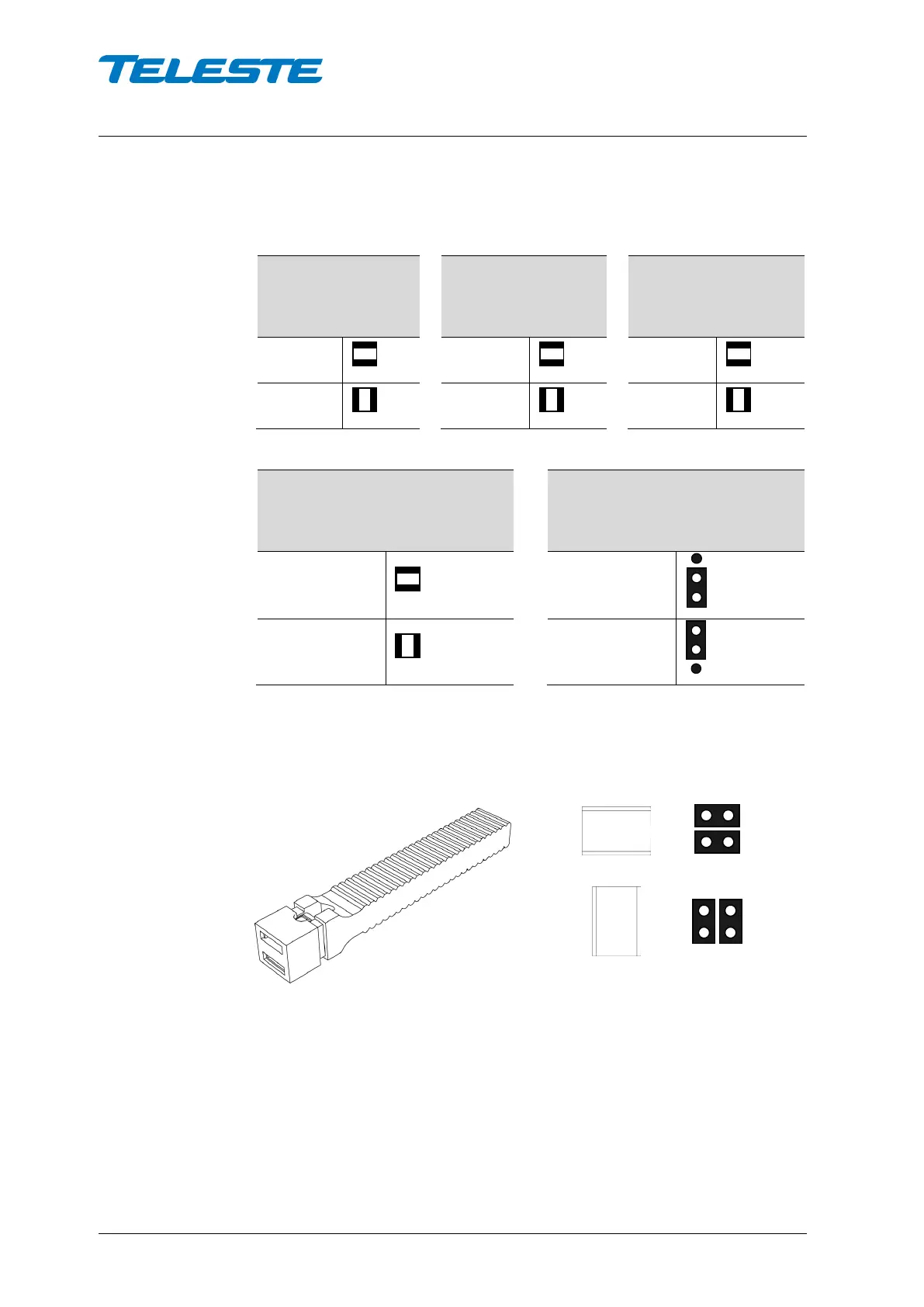

Figure 5. Illustration of the jumper plug used for cable simulation, mid stage gain
selection, mid stage slope selection and return path attenuation
Cable simulator
jumper
(Figure 4 pos. 6)
Mid stage gain
selection jumper
(Figure 4 pos. 7)
Mid stage slope
selection jumper
(Figure 4 pos. 8)
flat
high gain
(40 dB)
flat
- 8 dB
low gain
(32 dB)
Sloped
(8 dB)
Return path
attenuator
(Figure 4 pos. 14)
Remote power
jumpers
(Figure 4 pos. 17, 18)
0 dB
on
- 10 dB off
