Teletek electronics ECLIPSE 8 - APPENDIX 6. Style Diagrams for Zone Connection

Eclipse 8/ 16/ 32 Series - Engineer Programming Manual
93

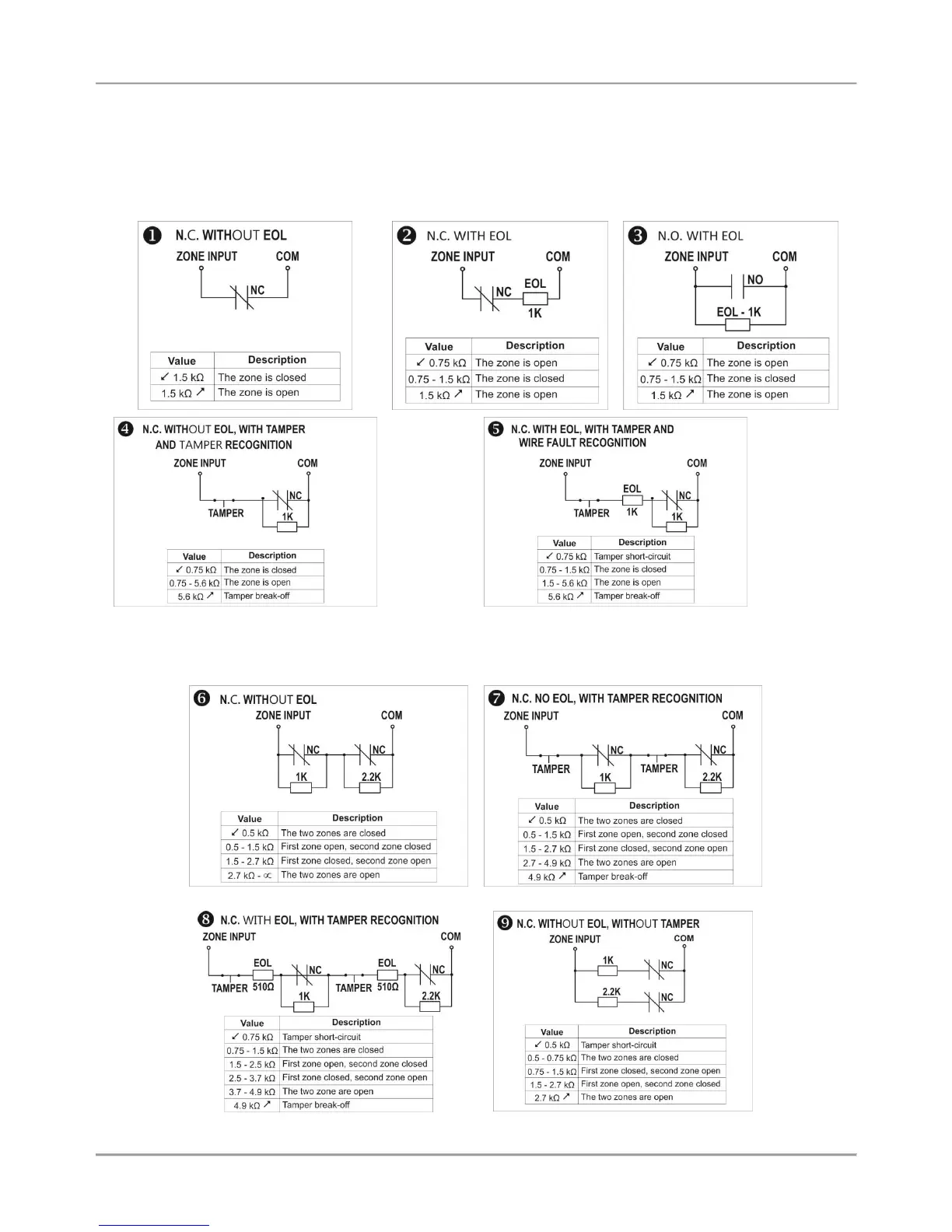

APPENDIX 6. Style Diagrams for Zone Connection
(The value is checked at ADDRESS 2zz9, where “zz” is a zone number)
LEGEND: “” means “lower than” value; “”means “higher than” value
SINGLE ZONE CONNECTION
DOUBLING ZONE CONNECTION
