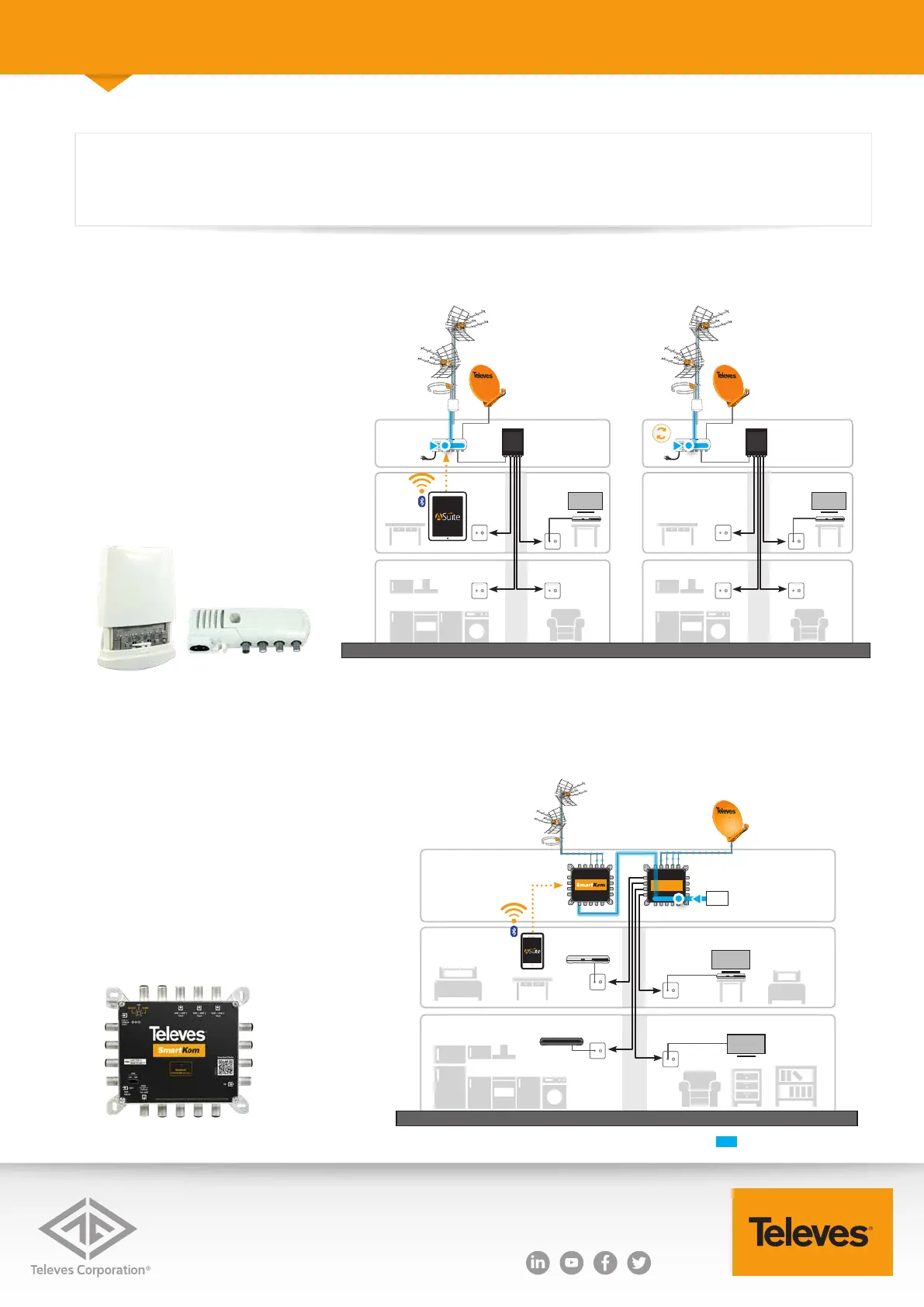

SmartKom indoor amplier installation
SmartKom oers a range of two ampliers perfectly adapted to each installation:
Choose between mast version (outdoors) or indoors version!
The device is installed in the headend of the
building.
The amplifier can be powered locally by external
power supply (Ref. 732101 recommended), or
remotely through the output connector
connected to a domestic PSU or to the MSW
distribution trunk lines already powered.
SmartKom mast amplier installation
The device is installed on the antenna
mast and is powered through the coaxial
output connector.
The PSU is located indoors and includes a
Bluetooth antenna to wireless program
with ASuite App.
TV DISTRIBUTION
SmartKom Serie: Intelligent Amplication
FM
SAT
LNB
Quattro
TV
TV
stb
stb
DC ow from the PSU
TV
SAT
DTT
SPLITTER
FM
TV
SAT
DTT
SPLITTER
FM
AUTO
DTT
MSW
PSU
Ref. 732101
Manual Conguration Automatic Conguration
