29
CHAPTER 5
Wiring Diagrams

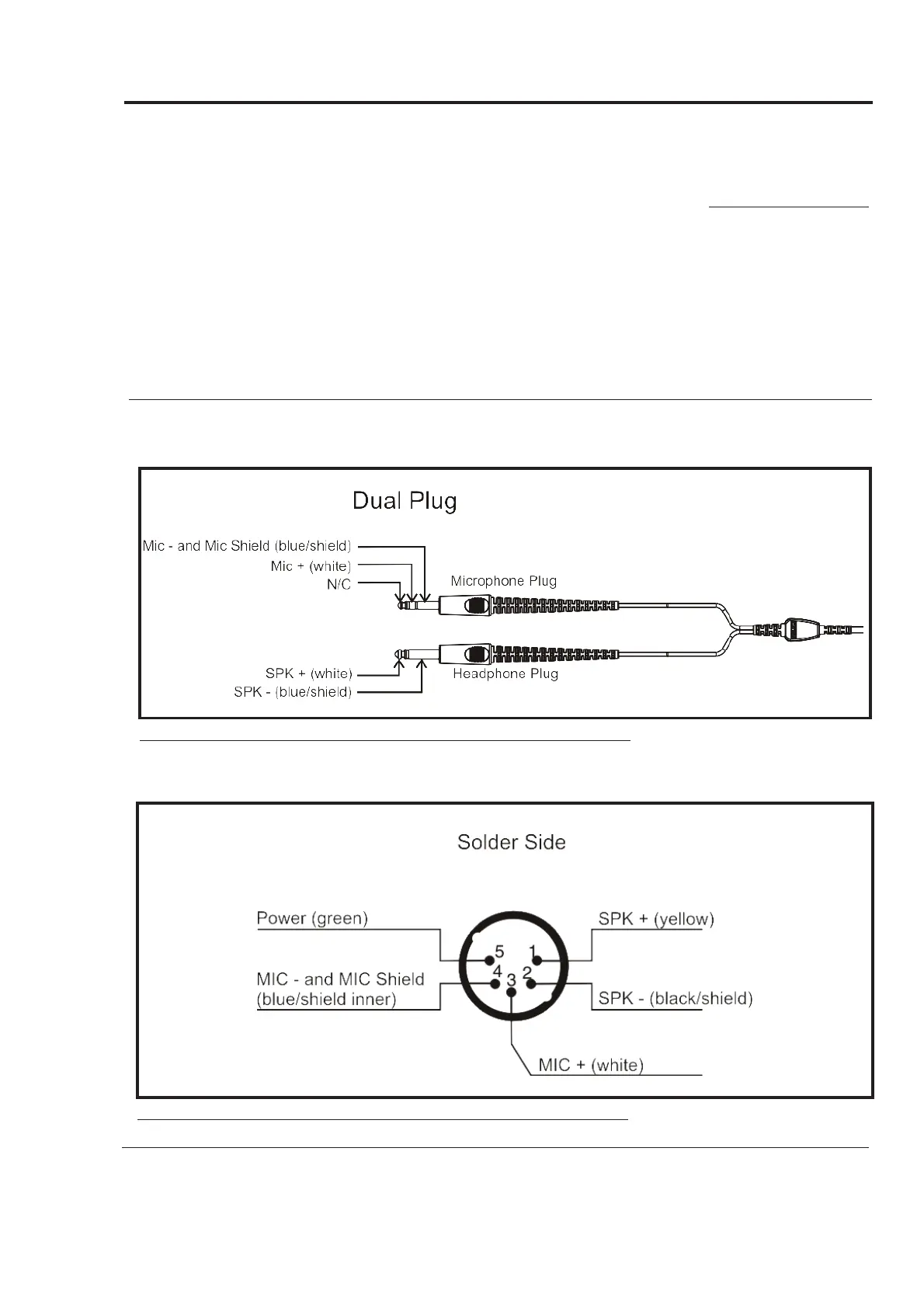

FIGURE 27. Dual Plug Wiring Diagram
FIGURE 28. 5-Pin XLR (male) Wiring Diagram
