Telex IP-1616 - Option Kit Contents; Option Kit Parts Identification

2
4. Lay out the Option Kit parts and compare with the assembly list to determine if all of the parts are present. See Figure 2.
NOTE: When drilling holes, items 9, 10, and 12 are used to mount the Hanger Return Spring. (Item 13 is not used.)
The Washer and Spacer both go on the inside of the case. If installing in a case with predrilled holes, items 9,10, and 12 are
not required.

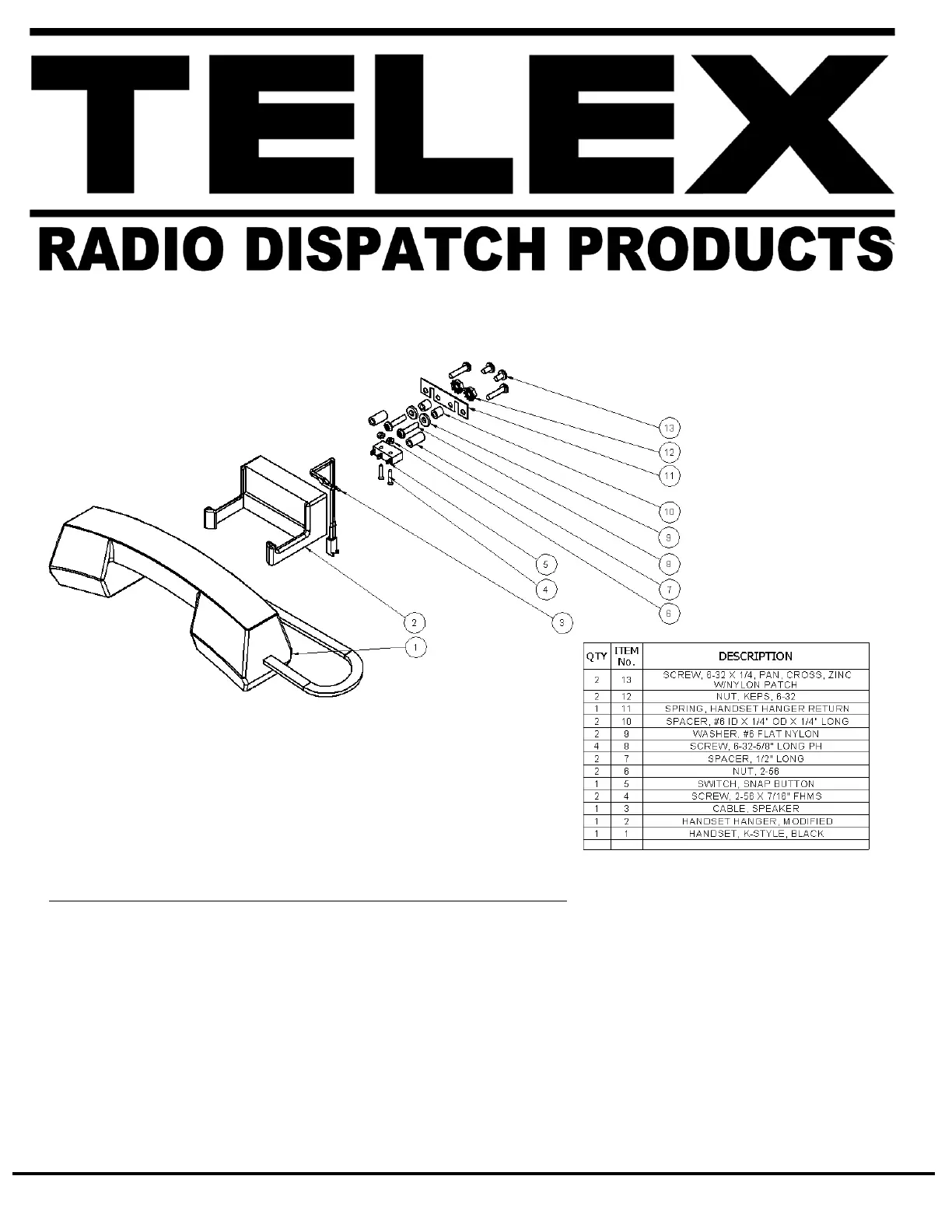

FIGURE 2. Option Kit Parts
