3

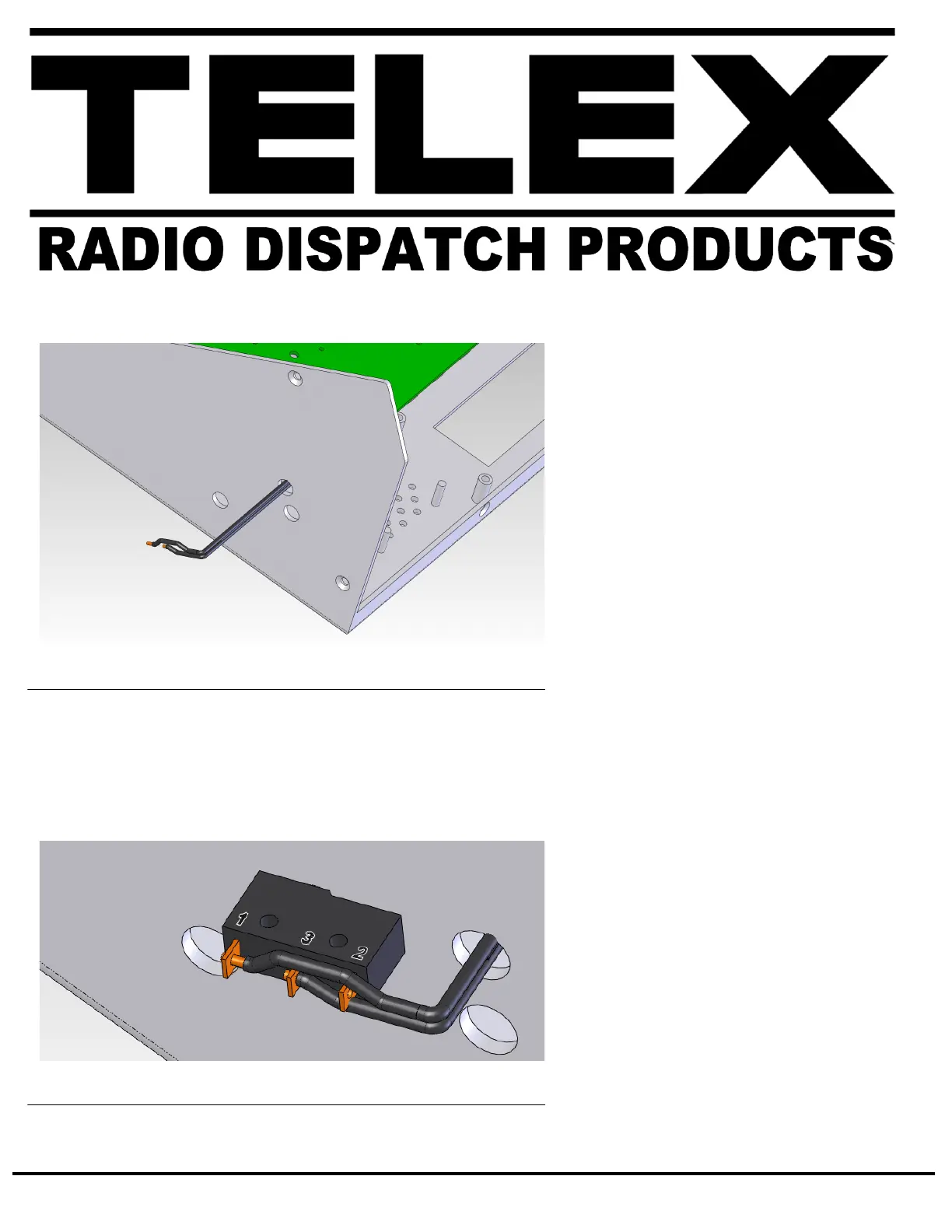

5. Insert the cable through the hole of the case top so the connector is on the inside of the case. See Figure 3.
FIGURE 3. Inserting Cable through Case Top
6. Solder one lead to pin #1.
7. Solder the other lead to pin #3. See Figure 4.
NOTE: Pin numbers are on the side of the switch.
FIGURE 4. Lead Placement
