Telwin TECHNOLOGY 150 - Disassembly and Assembly Illustrations

conditions for the particularTechnology model (see tables at point
1.2 D), switch on the machine and leave it running until the
thermostatic capsules trigger (machine in alarm). After making
sure the internal wiring is positioned correctly assemble the
machineonce and forall.
with the machine set up according to the instructions in the
handbook make a test weld with an electrode diam. 2.5 and the
currentsetting at 80A.Monitor the dynamic behaviour of the power
source, also checking for the presence of the Arc Force SW1 on
HARD(in the centre)
C)Weldingtest
MMA:
TECHNOLOGY 150-170-200-186CE/GE
TECHNOLOGY 150-170-200-186CE/GE

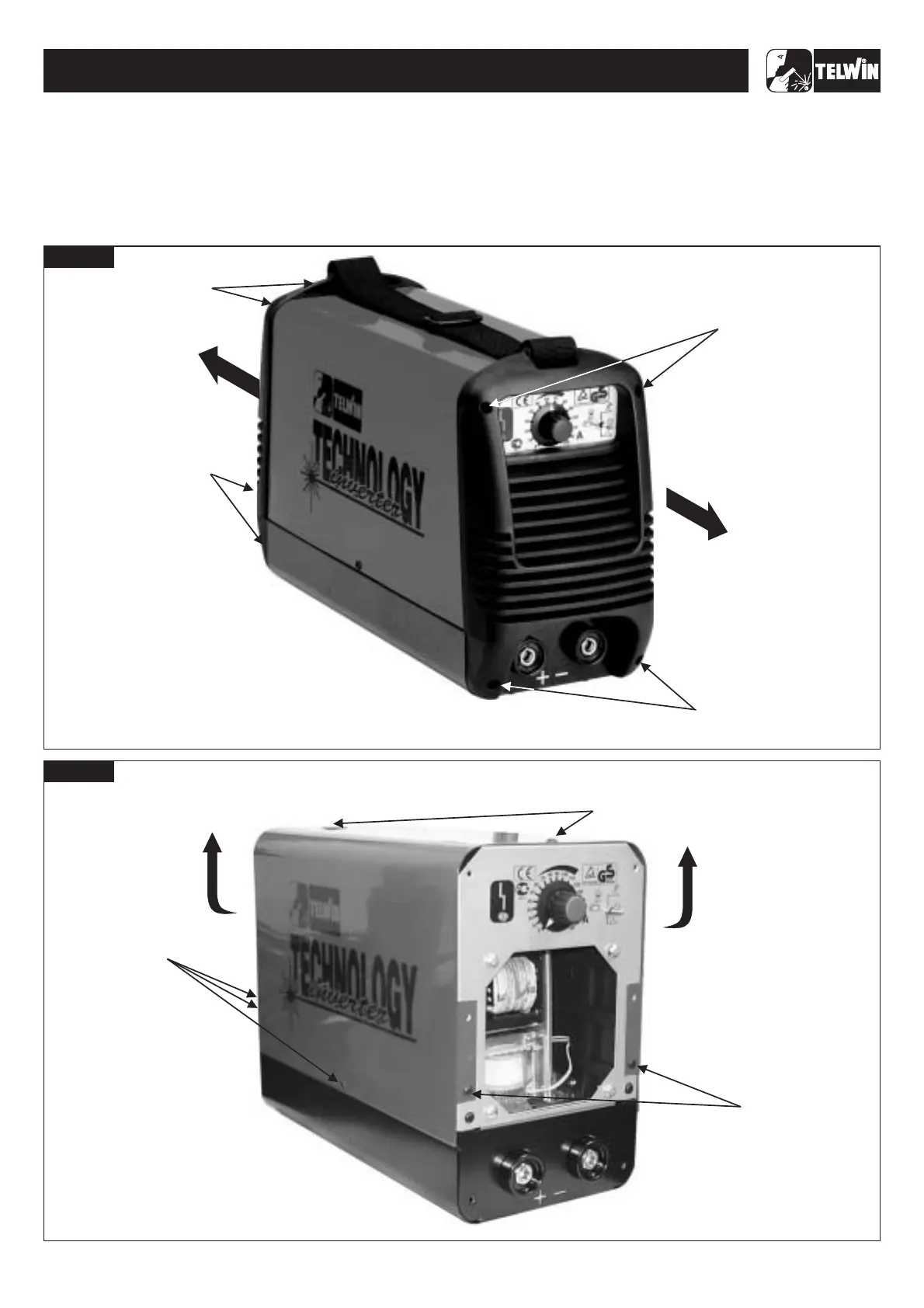

FIG. 1A
FIG. 1B
ILLUSTRATIONS
TO
COVER SCREWS
TOP
COVER SCREWS
TOP
COVER SCREWS
- 17-
SCREWS
FASTENING
BACK PANEL
SCRAWS
FASTENING
BACK PANEL
SCREWS
FASTENING
FRONT PANEL
SCREWS
FASTENING
FRONT PANEL
