Tempstar F97CMN - Page 73

F97CMN and G97CMN: Installation, Start-up, Operating and Service and Maintenance Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
73
338307-201 Rev.N
A200364

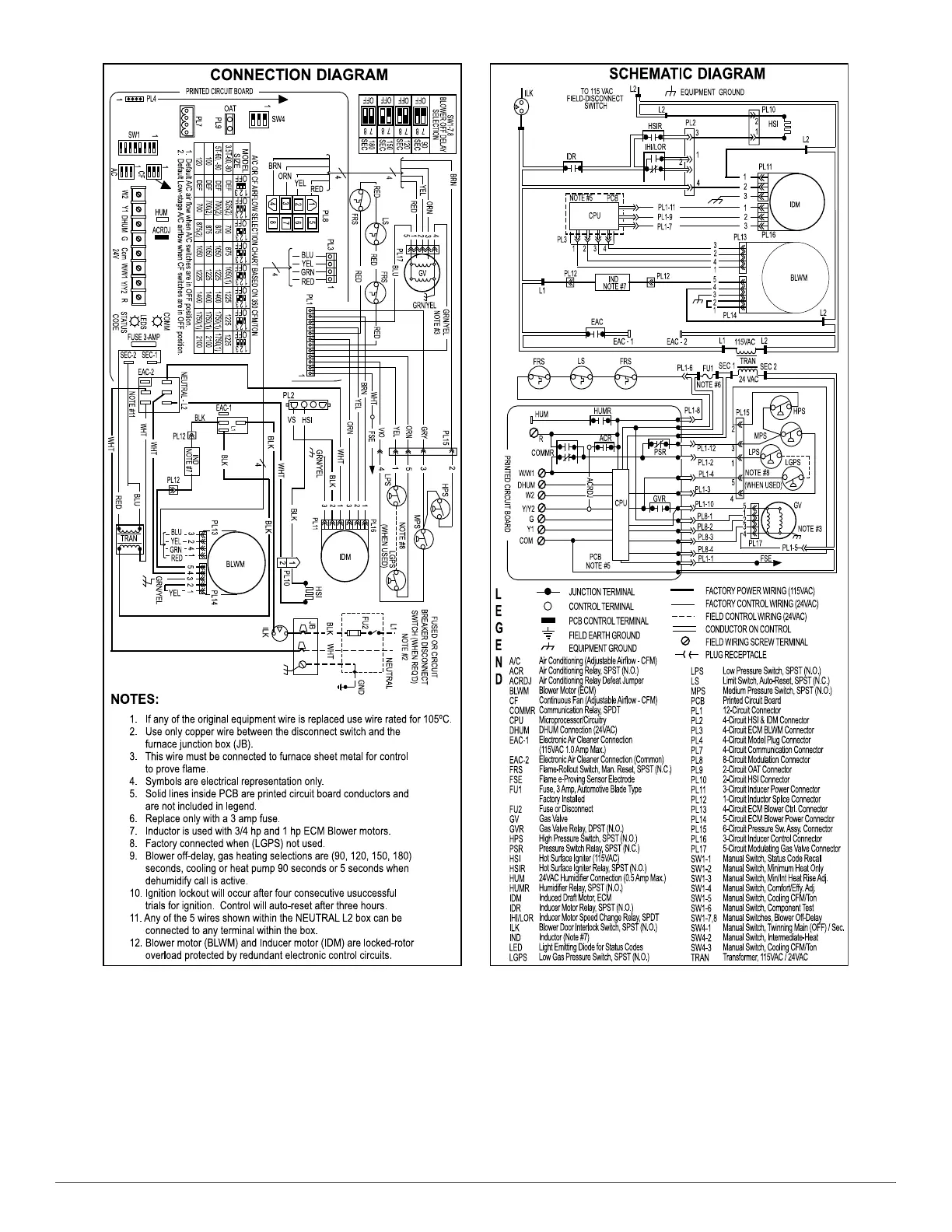

Fig. 72 – Wiring Diagram
