TEMPUR ERGO SMART - Quick Reference Guide

7
Not to scale. For illustration purposes only. Read all instructions before beginning installation.

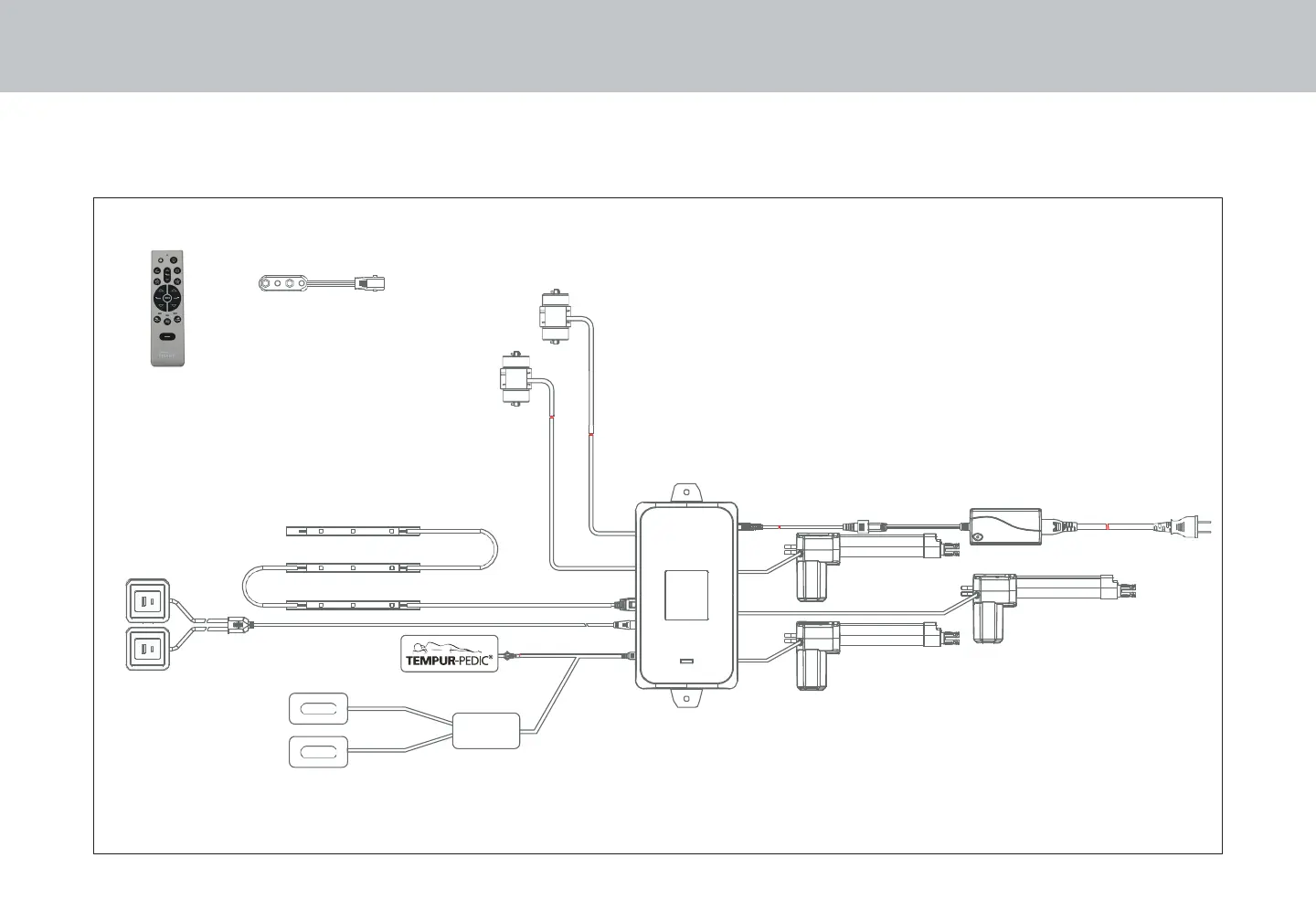

quick reference guide
USB Charging
Ports
Remote Control
Battery
Backup Strap
Sleeptracker-AI
®
Sensors
LED Brand
Badge
Control Box
Sleeptracker-AI
®
Processor
Under Bed
Lighting
Massage Motors
Power Supply
Power Cord
Foot Motor
Head Motor
Lumbar Motor
Input Cord
POWER
FOOT
LUMBA R
HEAD
MULTIFUNCTION
FOOT VIBRATION HE AD VIBRATION 1 2
3
