04 TECHNICAL
INSTRUCTIONS

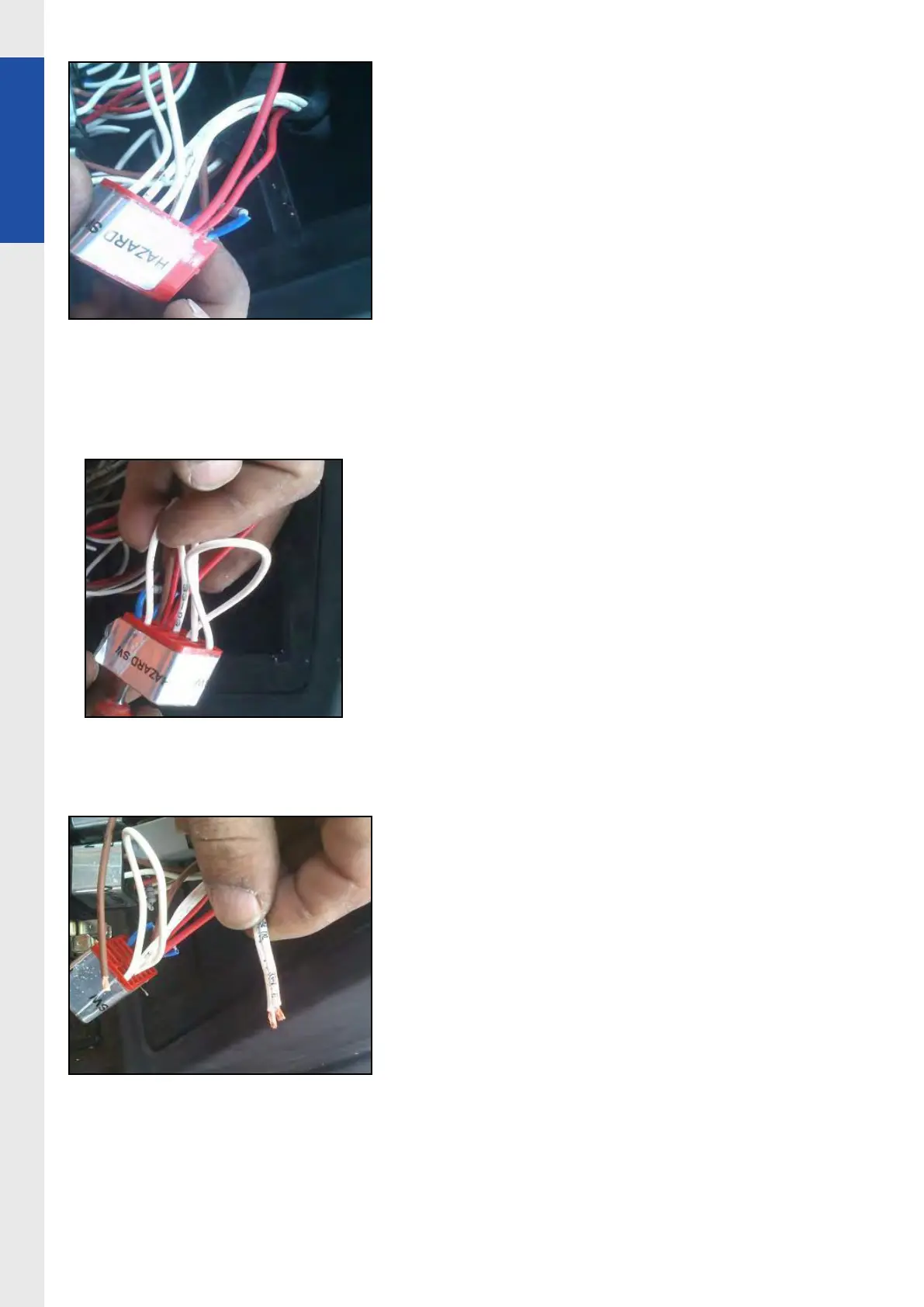

Photo 11
5. Dismante and cut terminal of white 33-04 cable
which is available in 17th pin of hazard switch and
then put this 33-04 and other 33-04 together in a
terminal (other 33-04 which is available in modication
harness) and then connect this terminal into 17th pin
of hazard switch.
Photo 12
Photo 13
