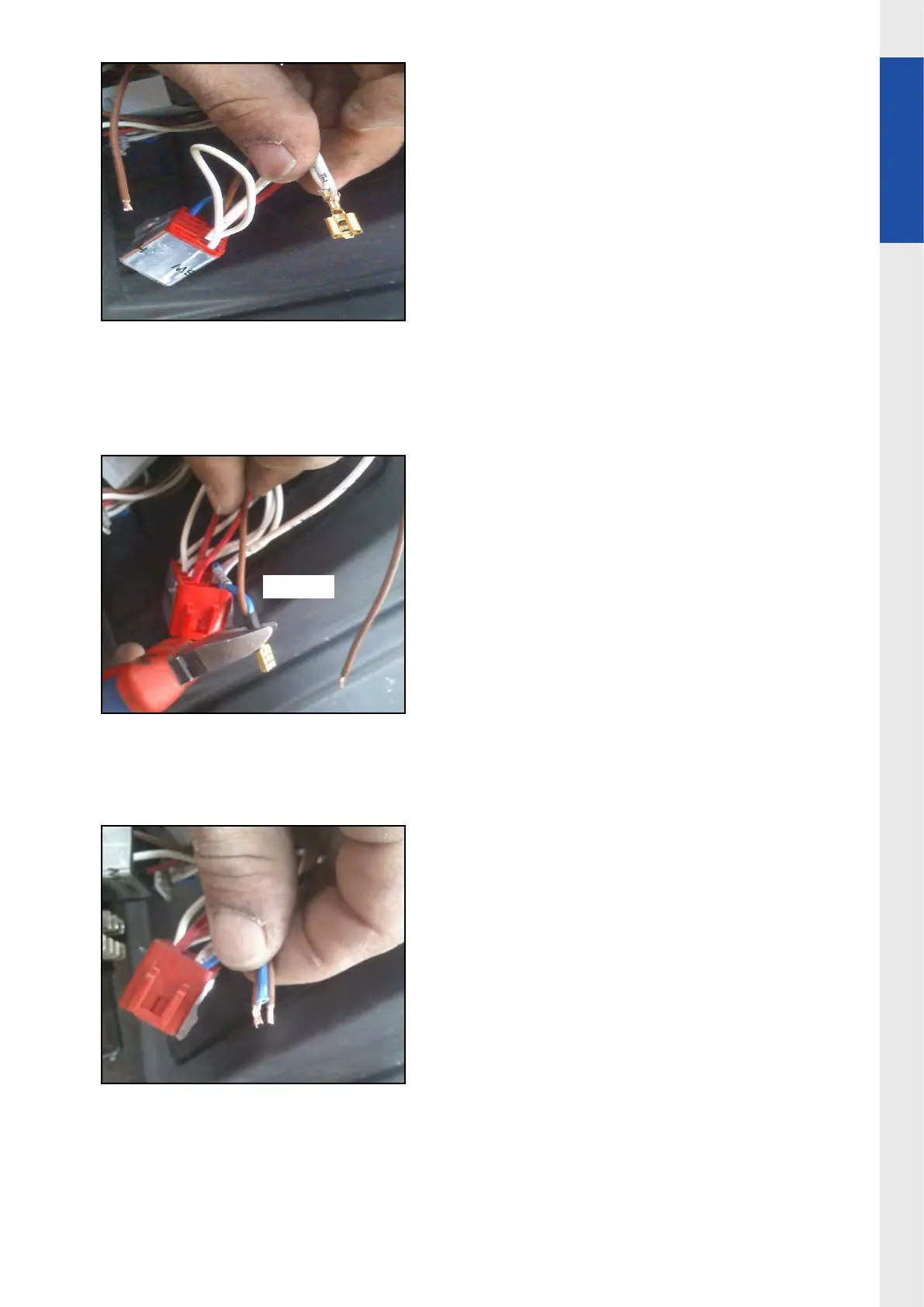

Photo 14
6.Put together in a terminal cables below brown
cable in modication cable and brown cable in 10th
pin of hazard switch and blue cable with resistor
available in hazard switch and then connect this
terminal to 10th pin of hazard switch.
Photo 15
cut here
Photo 16
