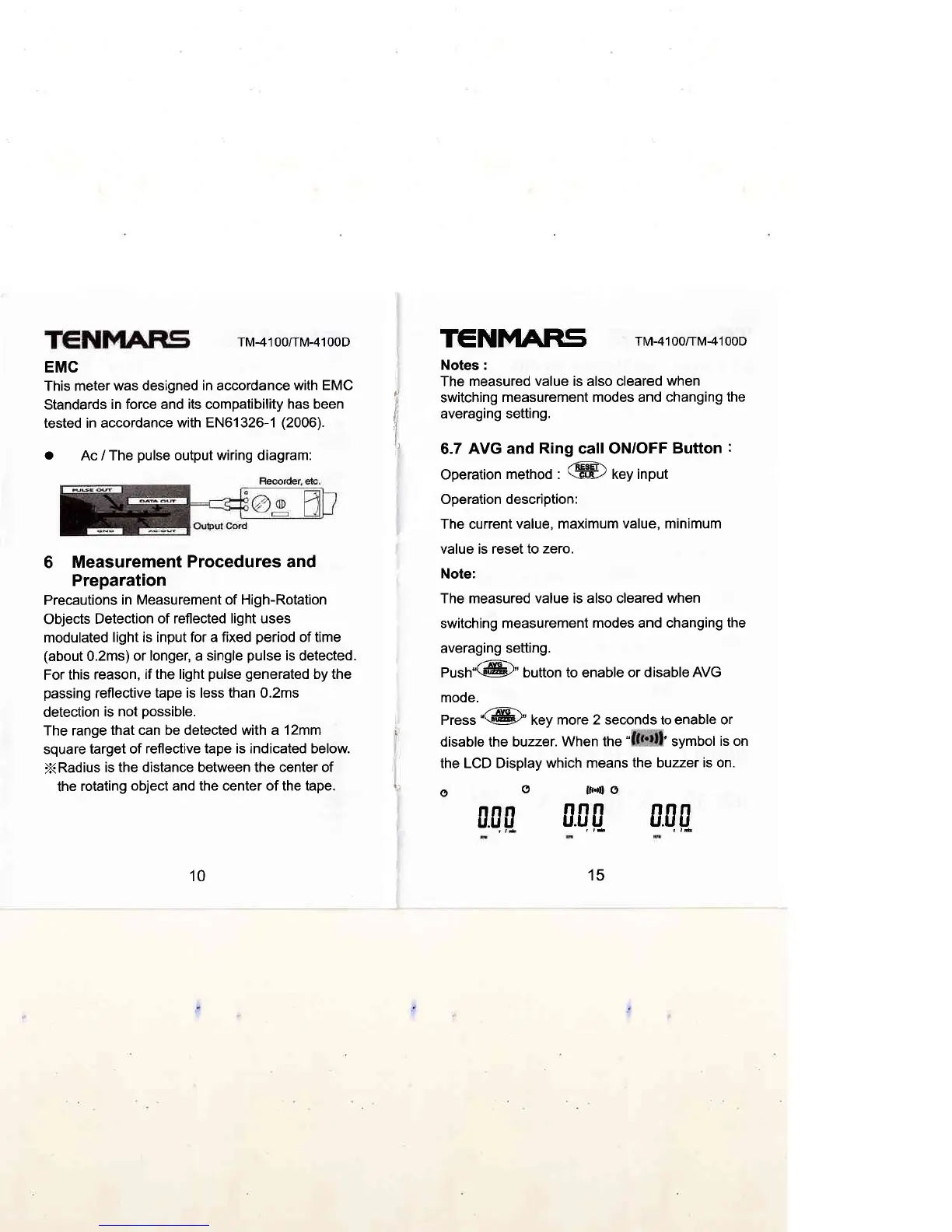

TM4100/TM-4100D
EMG
This meter
was designed
in
accordance
with EMC
Standards
in force and
its
compatibility
has been
tested in accordance
with EN61326-1
(2006).
.
Ac / The
pulse
output
wiring
diagram:
6
Measurement
Procedures and
Preparation
Precautions
in Measurement of High-Rotation
Objects
Detection
of reflected light uses
modulated
light is input for a fixed
period
of time
(about
0.2ms)
or longer, a single
pulse
is
detected.
For this
reason,
if the light
pulse generated
by the
passing
reflective
tape is less than 0.2ms
detection
is not
possible.
The range
that can be detected with a 12mm
square
target of
reflective tape is indicated below.
XRadius
is
the distance between the center of
the
rotating
object and the center of the tape.
TENIII/ARS
TM-4100iTM4100D
Notes :
The measured
value is also cleared
when
switching
measurement modes and
changing the
averaging setting.
6.7
AVG and Ring callON/OFF
Button
:
/6E->\
Operation
method : :E/ key input
Operation description:
The
current
value, maximum
value, minimum
value is reset
to zero.
Note:
The measured value is also cleared
when
switching measurement
modes and changing
the
averaging setting.
Push"@" button to enable
or disable AVG
mode.
press
"@"
key
more 2 seconds to enable or
disable the buzzer.
When the symbol
is on
the LCD Display
which means
the
buzzer
is on.
o
o
ltF4o
0qg_
nnn
U.U U
BOB
u.
15
10
