SHARPENING BLADES
Your TENNSMITH shear features “Tri-Action” ground blades. The upper blade has two cutting edges which are ground
with a 2 degree edge relief. The upper blade can be turned over to expose the new cutting edge. It can be sharpened
on a surface grinder by grinding both wide sides to the blade. The lower blade has one cutting edge with a 2 degree
cutting edge relief and a 1 degree face relief. It can be sharpened on a surface grinder by grinding the wide side of the

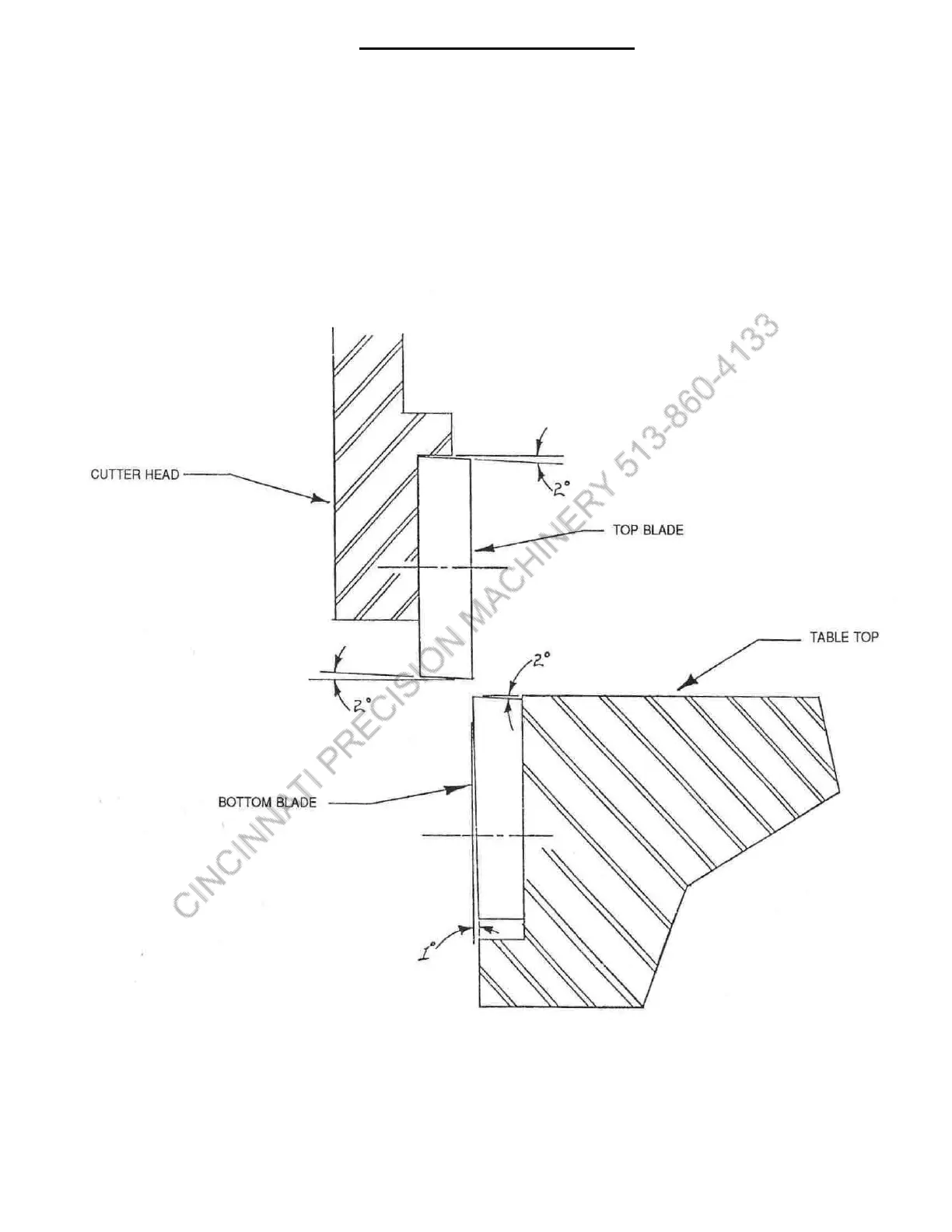

blade having the 1 degree relief. See Figure 2). Blade sharpening service is available from the factory.
9
