21

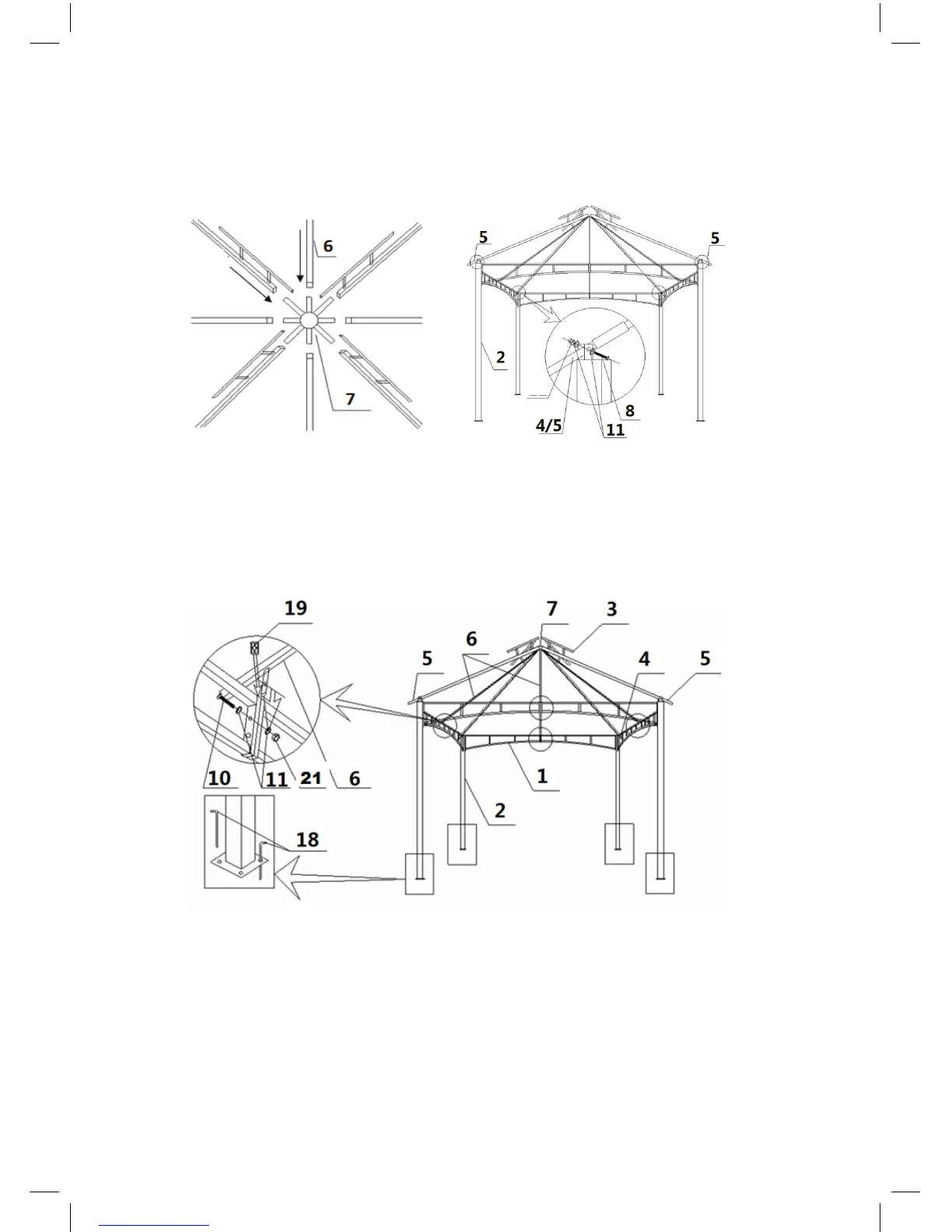

Step 4
3+4
3+4
3+5
3+5
Insert the roof supports (3+4) and (3+5), as well as the short poles (6) into the roof cross
piece (7).
Put the roof structure onto the frame.
Fasten the roof supports (3+4) and (3+5) using screws (8), washers (11) and nuts
(12) at the top of he support legs.
Step 5
While standing inside the gazebo, insert the ends of the short poles (6) into the right
hole in the middle of each frame part group (1+1).
Close the left hole by the end cap for the frame part (19).
Screw the screws (10) with washers (11) and nuts (21) into the top holes of the
frame part group (1+1).
Tighten now all screws and nuts.
Put the covering caps (13) onto the screws (8, 9 and 10).
Fix the support legs using pegs (18).
12
P160150_TEPRO_5524,5525,5526,5527,5528,5529_Waya_Pav_DE_GB_20161003.indd 21 18/11/16 11:46 AM
