22
Step 6

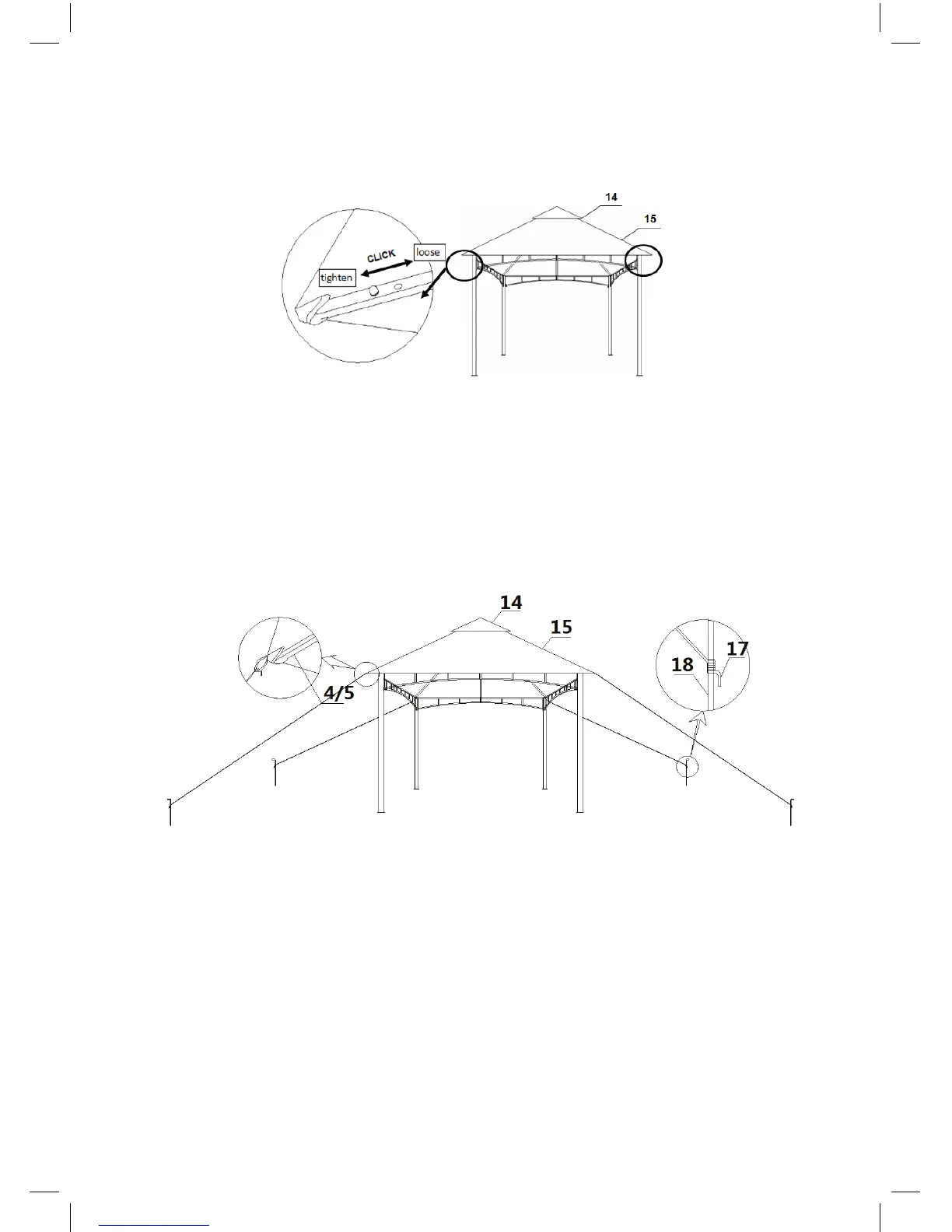

Position the large roof textile piece (15) over the roof structure so that the seams lie on
the corners of the gazebo.
Stretch the small roof textile piece (14) at the gazebo top over the roof supports (3).
Tension and fasten the large roof textile piece. The roof textile tensioners (5) are adjust-
able in length and thus can loosen or tauten the roof textile. Release the ball stops by
pressing on the ball and sliding the parts together or pulling them apart. The ball stops
must click into place audibly.
Step 7
Tie the tension ropes (17) to the loops on the corners of the roof textile (15).
Tie the ends of the tension ropes to every peg (18).
Pull the tension ropes at an angle of approx. 45° tightly to the ground.
Hammer in the peg at the appropriate point. In doing so, make sure to maintain good
tension.
The gazebo can be disassembled again in the reverse order.
