Ter Welding Multi 400K - REMOTE WIRE FEEDER DOUBLE PULSE SETTINGS; Inductance and Trigger Adjustments

GB
English
Instruction Manual
23.2 Inductance - Setting From The Remote Wire Feeder Unit
(1) press the key SELECT until inductance icon (2) is on
(3) the display shows the inductance value
(4) using the keys – and + set the inductance.The display (3) return to the previous
value 1 second after the last key touch or pressing the key SELECT once again
(5) set the trigger mode (2T – 4T – 2T slope – 4T slope –the slope values are already
pre-set)
NOTE: with the DUO conguration (wire spool inside the machine and another
one inside the remote wire feeder – double torch) you can set two independent
welding jobs. Process and programs are automatically released pressing the
respective torch trigger or any one key on the wire feeder unit or generator
main panel.

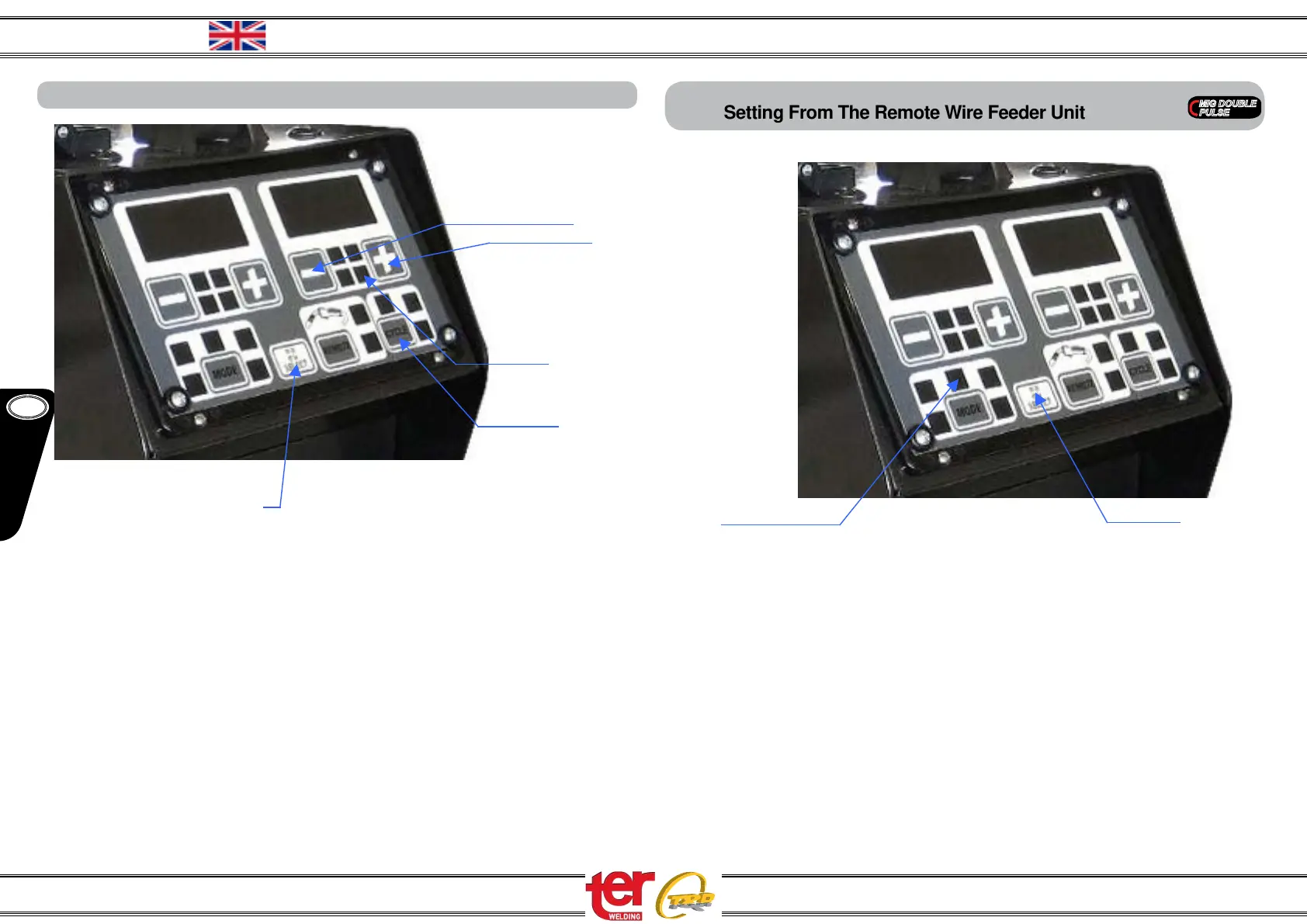

(1)
(2)
(3)
(4)
(4)
(5)
23.3 Mig Double Pulse
Setting From The Remote Wire Feeder Unit
(1) press the key MODE until icon “twice” light on
(2) press the key SELECT until display (3) shows the pulse value
(number / seconds)
(3) with keys – and + (left side) adjust the pulse value eventually
All other parameters can be adjusted as described in chapter MIG pulse.
(1)
(3)
(2)
MIG DOUBLE
PULSE
21
