Ter Welding Multi 400K - REMOTE WIRE FEEDER MMA AND SYNERGIC SETTINGS; MMA Current and Synergic Thickness Setup

GB
English
Instruction Manual
23.4 Mma Mode

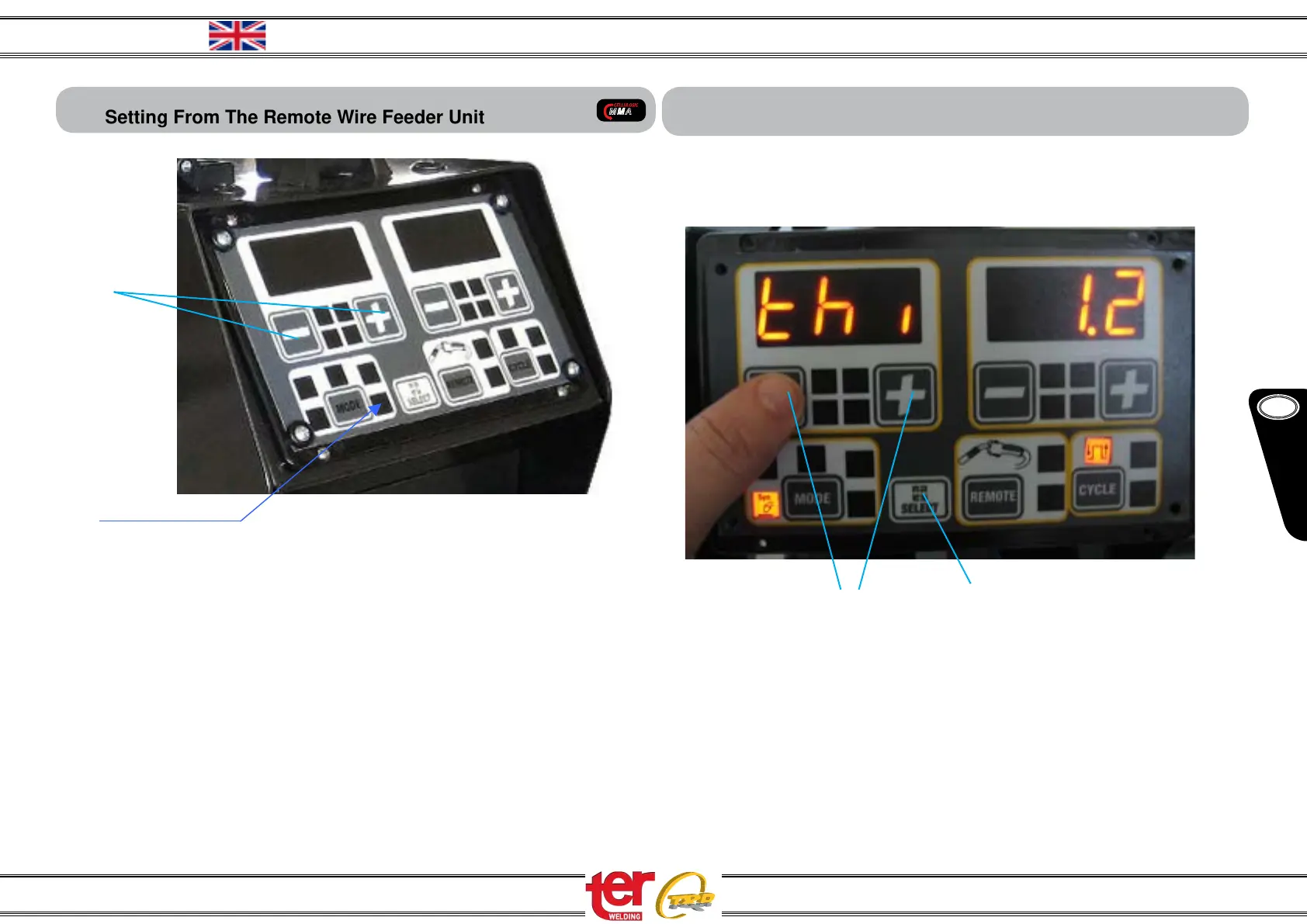

Setting From The Remote Wire Feeder Unit
(1) press the key MODE until icon “MMA-stick” light on
(2) with keys – and + (left side) adjust the current value (3)
NOTE: setting of any synergic program is made always from front machine
main panel while adjustments can be performed directly on the remote wire
feeder unit panel.
(1)
(3)
(2)
MMA
CELLULOSIC
22
23.5 Synergi mode : Setting thickness
In the synergic mode it is possible to set the thickess of the material. When you set
the thickness all other welding parameter will be updated automatically.
(1) press the key SELECT until display-1 shows the message “thi”
and the display-2 the value of thickness.
(2) with keys – and + (left side) adjust the thickness value.
All other parameters will be update for the thickness selected.
display-1 display-2
2
1
