Teral CTFII - Fan Configuration and Components; Part Identification by Transmission Type

2-1

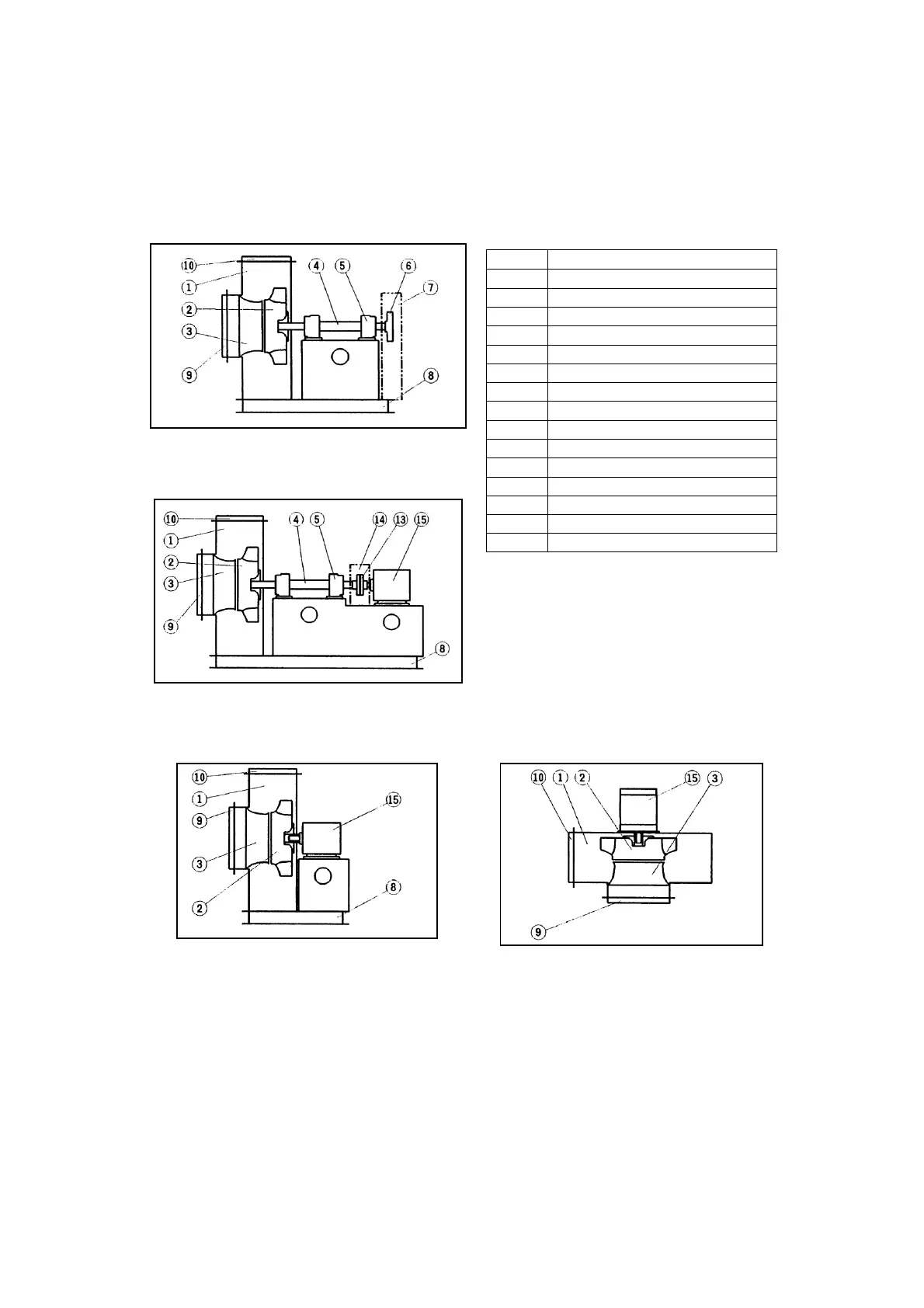

2. Configuration and overview of the fan
2.1 Construction and name of each part by transmission method
(1) OB Type
(2) MOB Type
No. Part name
c
Fan casing
d
Impeller
e
Air intake
f
Main shaft
g
Bearing
h
V-belt pulley
i
Belt guard
j
Common base
k
Suction flange
l
Discharge flange
{
11
Vibration insulating liner
{
12
Vibration insulating base
{
13
Shaft coupling
{
14
Shaft coupling guard
{
15
Motor
(3) HOH Type (4) VOH Type
