4-7
(2) External output signals
Connect wires to the external output terminals as shown in the following diagram.
Note
The parameter P100 allows you to select an external relay output pattern from
5 options.
For details and the setting method, refer to “7.5 Parameter setting.”
External output terminals
(Control board I/O terminal block)
B6 B7 B8 MC M1 M2 M3 M4 M5
Power supply
#3 failure
#4 failure
#1 operation
#3 operation
#4 operation
B5B4B3
Trouble
Receiver tank low
Racing prevention
Receiver tank full
B2
#2 failure
B1
#1 failure
BC
#5 failure
#2 operation
Power supply
#5 operation

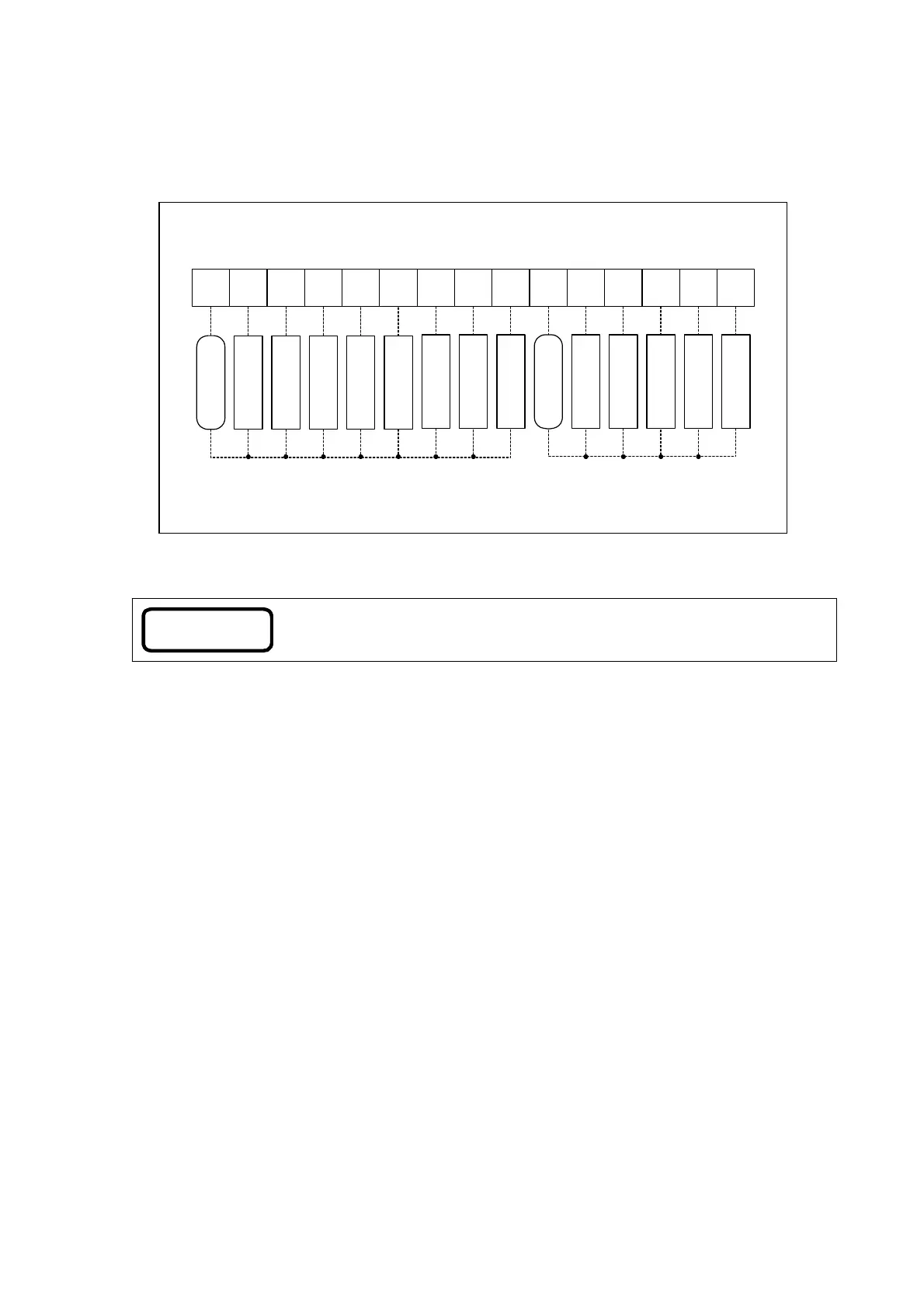

Fig.4-3-2 External output terminals
(Parameter: P100, setting: 0)
To Next Page
