Terex RMX Series User Manual

RMX SERIES
1-14
483018 - 3/15 Terex South Dakota RMX Series

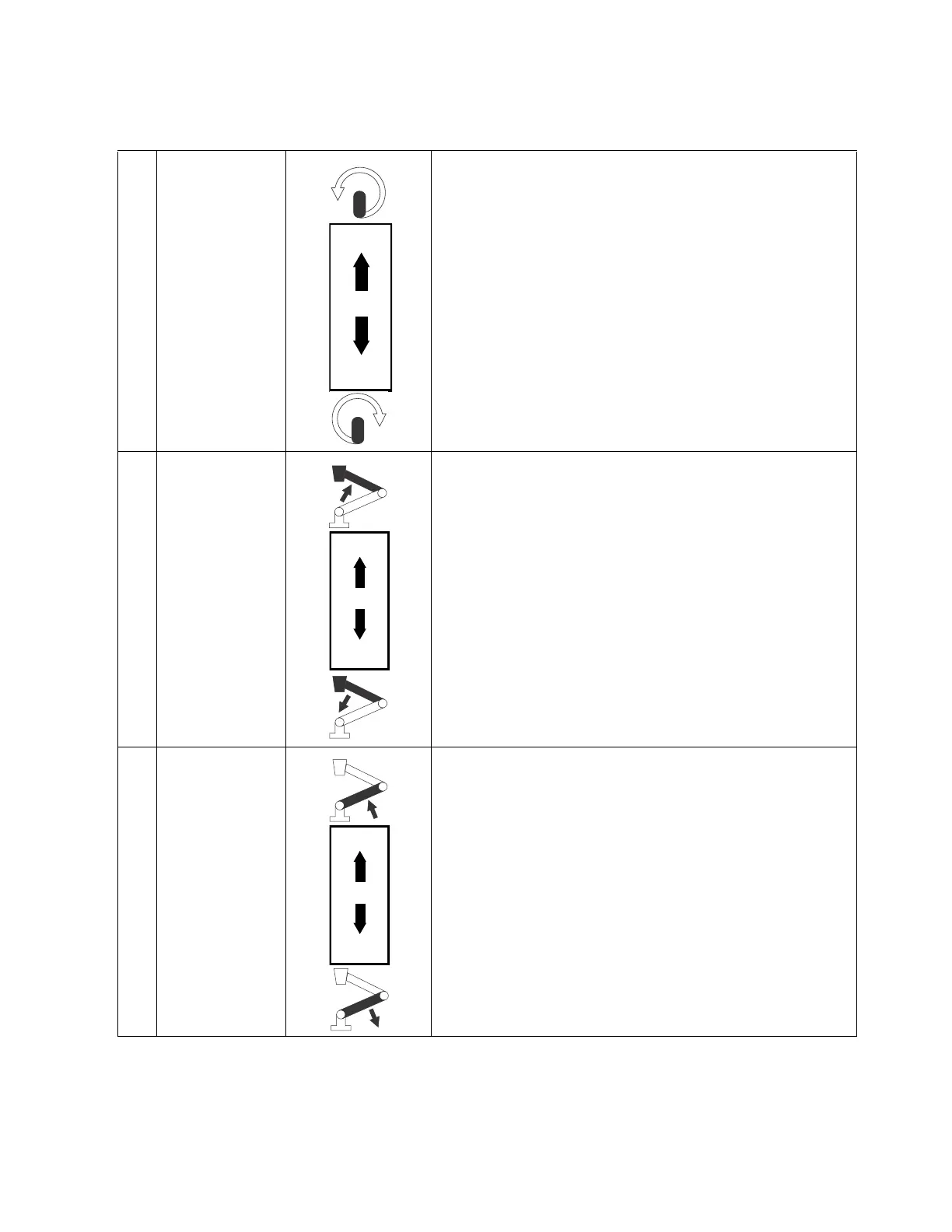

OPERATION GUIDELINES
1. Turntable
“Boom Rotation”
Pull lever up to rotate “LEFT” or clockwise (CW).
Push lever down to rotate “RIGHT” or counterclockwise
(CCW).
2. Upper Boom
Pull lever up to unfold upper boom “UP”.
Push lever down to fold upper boom “DOWN”.
3. Lower Boom Pull lever up to fold lower boom “UP”.
Push lever down to unfold lower boom “DOWN”.
As lower boom is articulated the upper boom will maintain the
same angle to the truck.
LEFT
TURNTABLE
RIGHT
UP
UPPER BOOM
DOWN
UP
LOWER BOOM
DOWN
