Terex RMX Series User Manual

RMX SERIES
1-15
RMX Series Terex South Dakota 483018 - 3/15

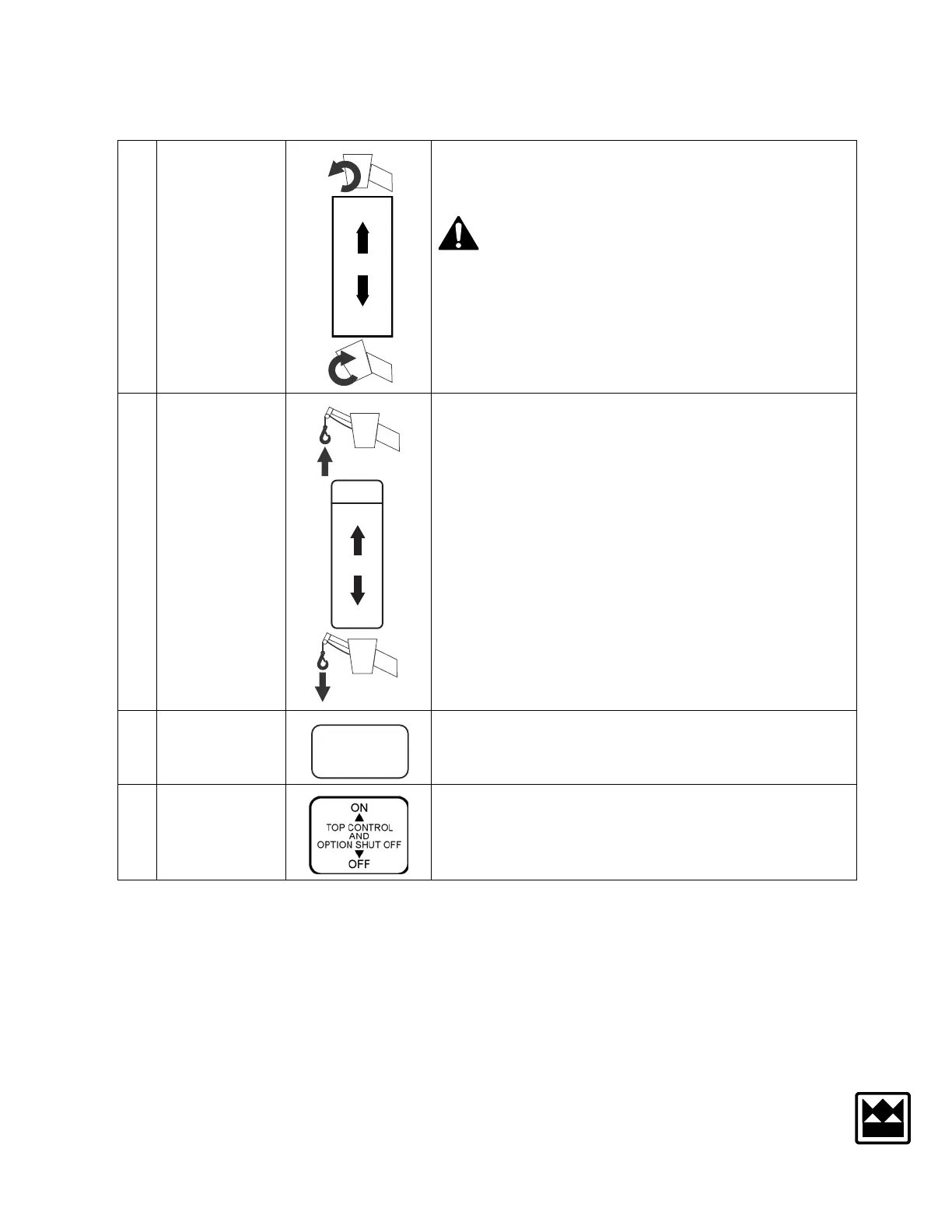

OPERATION GUIDELINES
4. Platform Leveling Pull lever up to tilt platform counterclockwise “CCW”.
Do not operate when personnel are in the platform.
Push lever down to level platform clockwise “CW”.
5. Winch Pull up to raise load or wind up winch line “UP”.
Push down to lower load or pay out winch line “DOWN”.
6. Palm Switch Depress and hold switch to operate lower hydraulic controls.
7. Top Control and
Option Shut-Off
Pull up to turn “ON”.
Push down to turn “OFF”.
Must be in the “ON” position to operate the jib, winch,
platform rotate and hydraulic tools at the platform location.
CCW
PLATFORM
LEVELING
CW
WINCH
DOWN
457487
UP
PRESS AND HOLD
TO
OPERATE TOWER
H25364B
