Terex TA30 - Suspension System - Levelling Valve; Levelling Valve

Section 180-0022
1SM 1481 9-98
SUSPENSION SYSTEM - Levelling Valve
SM - 978
34 - Control Lever
35 - Clamp
36 - Connecting Rod
37 - Nut
38 - Lockwasher
39 - Washer
40 - Bolt
41 - Nut
42 - Lockwasher
43 - Washer
44 - Bolt
23 - Key
24 - Sealing Ring
25 - Reducer
26 - Roll
27 - Washer
28 - Driver
29 - Nut
30 - Bolt
31 - Washer
32 - Joint
33 - Split Pin
12 - Compression Spring
13 - Piston Pin
14 - Grooved Pin
15 - Washer
16 - Spiral Back Ring
17 - 'O' Ring
18 - Housing
19 - Valve Head
20 - Compression Spring
21 - Sealing Ring
22 - Reducing Nipple
1 - Clamp Ring
2 - Protection Cap
3 - Screw
4 - Washer
5 - Diaphragm
6 - Supporting Ring
7 - Felt Ring
8 - Locknut
9 - Stud
10 - Piston
11 - Pin

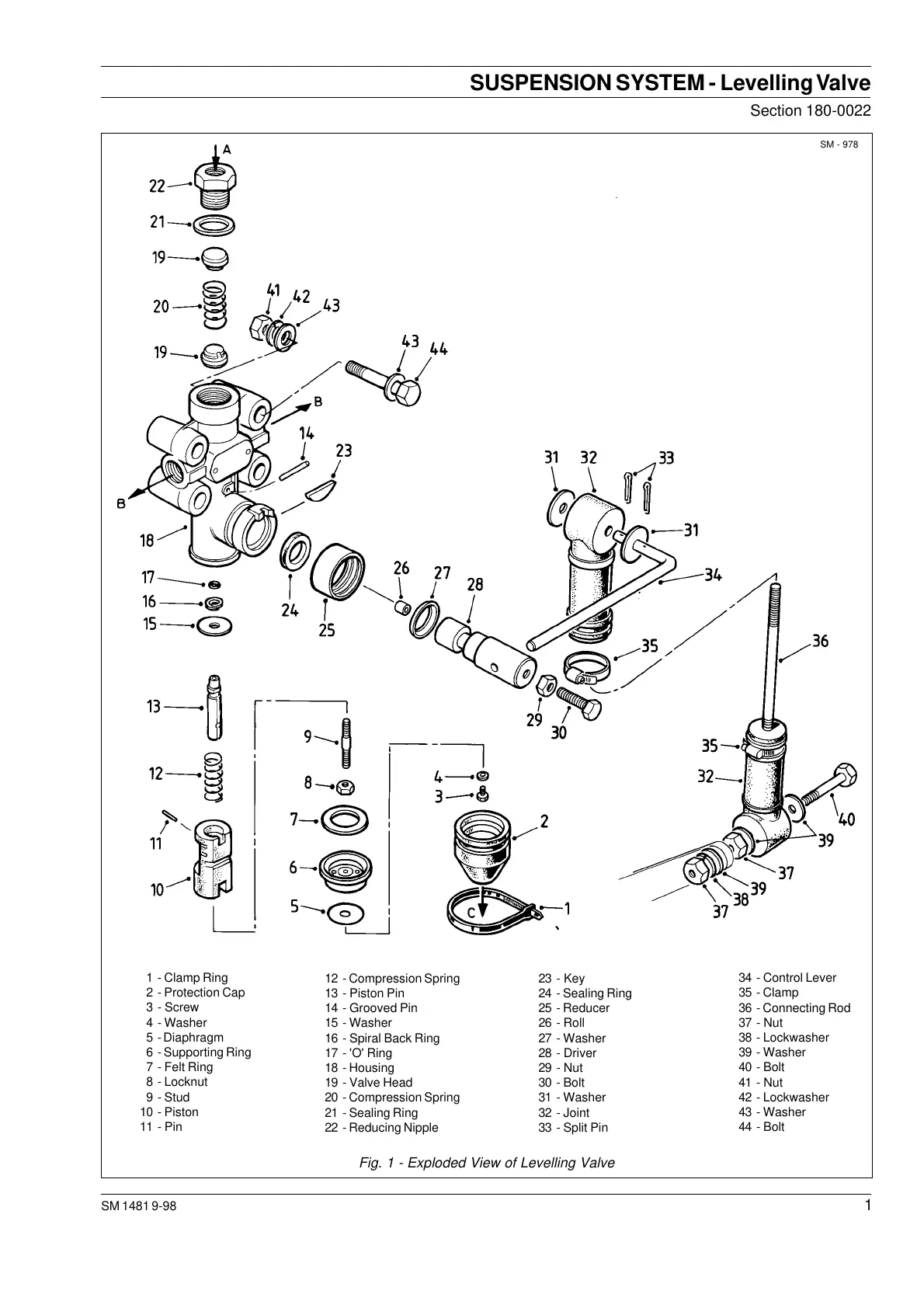

Fig. 1 - Exploded View of Levelling Valve
