SM 1956 4-00
5
Section 230-0130
* * * *
Body System - Body Cylinder
SPECIAL TORQUE SPECIFICATIONS
TORQUE
FIG. NO. ITEM NO. ITEM NAME Nm lbf ft
1 3 End Cap 237 175
1 12 Piston 1 356 1 000
1 15 Grub Screw 49 36
1 26 Bolt 66 49
SM - 2470

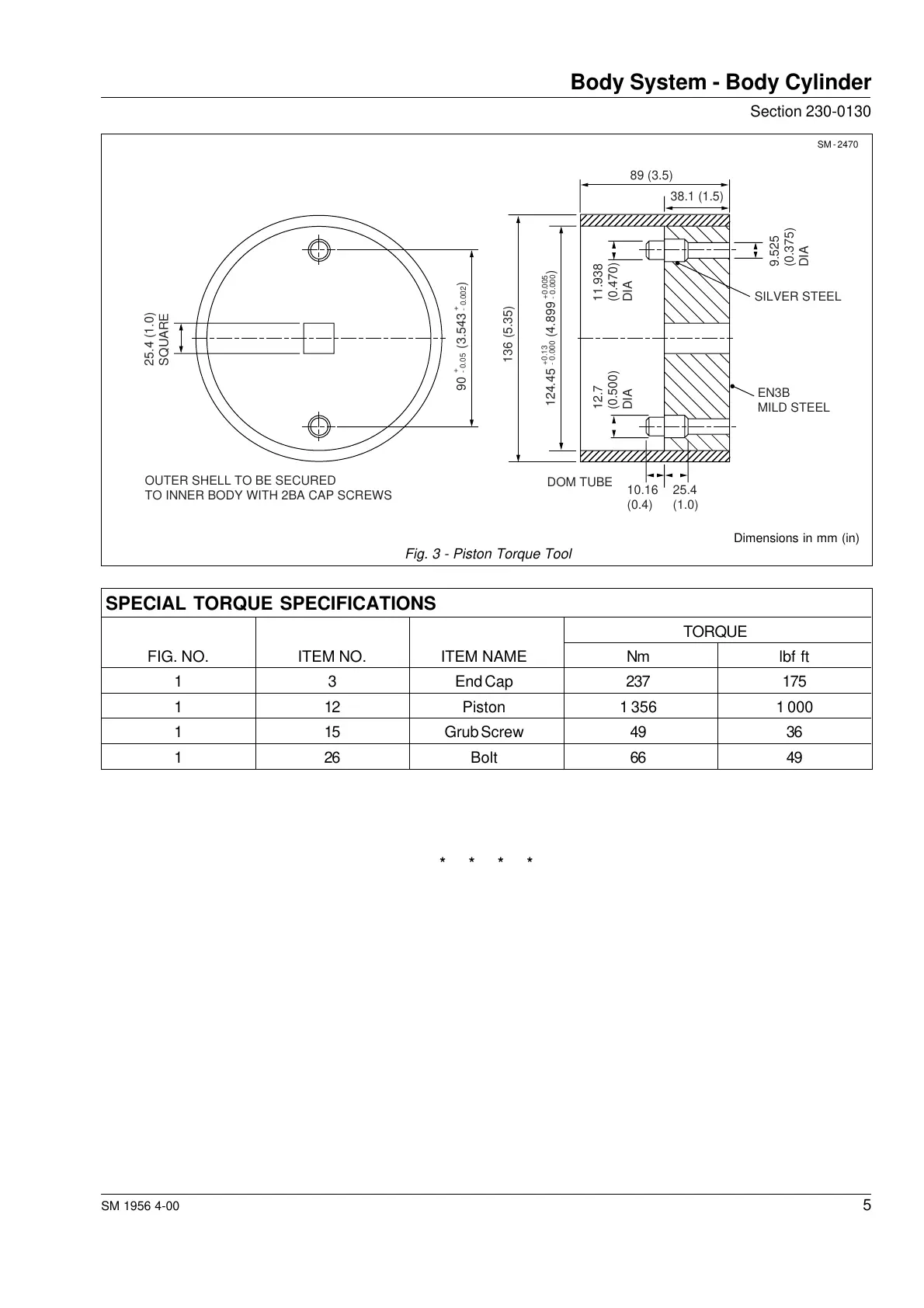

Fig. 3 - Piston Torque Tool
12.7 (0.500) DIA
11.938 (0.470) DIA
9.525 (0.375) DIA
136 (5.35)
25.4 (1.0) SQUARE
25.4
(1.0)
10.16
(0.4)
38.1 (1.5)
89 (3.5)
124.45
+0.13 - 0.000
(4.899 )
+0.005 - 0.000
90
+ - 0.05
(3.543 )
+ - 0.002
SILVER STEEL
EN3B
MILD STEEL
DOM TUBE
OUTER SHELL TO BE SECURED
TO INNER BODY WITH 2BA CAP SCREWS
Dimensions in mm (in)
