3-11

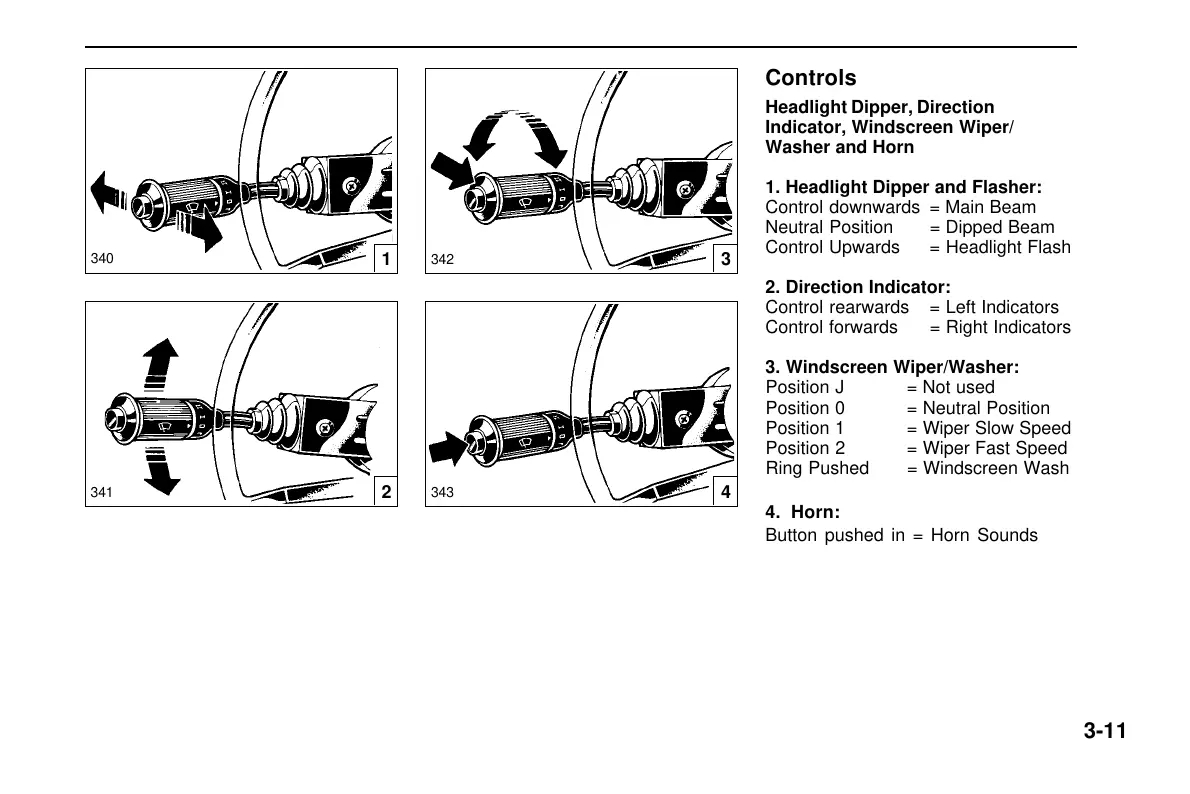

Controls
Headlight Dipper, Direction
Indicator, Windscreen Wiper/
Washer and Horn
1. Headlight Dipper and Flasher:
Control downwards = Main Beam
Neutral Position = Dipped Beam
Control Upwards = Headlight Flash
2. Direction Indicator:
Control rearwards = Left Indicators
Control forwards = Right Indicators
3. Windscreen Wiper/Washer:
Position J = Not used
Position 0 = Neutral Position
Position 1 = Wiper Slow Speed
Position 2 = Wiper Fast Speed
Ring Pushed = Windscreen Wash
4. Horn:
Button pushed in = Horn Sounds
340
341
342
343
1
2 4
3
