TermaTech TT21R Manual

36 37

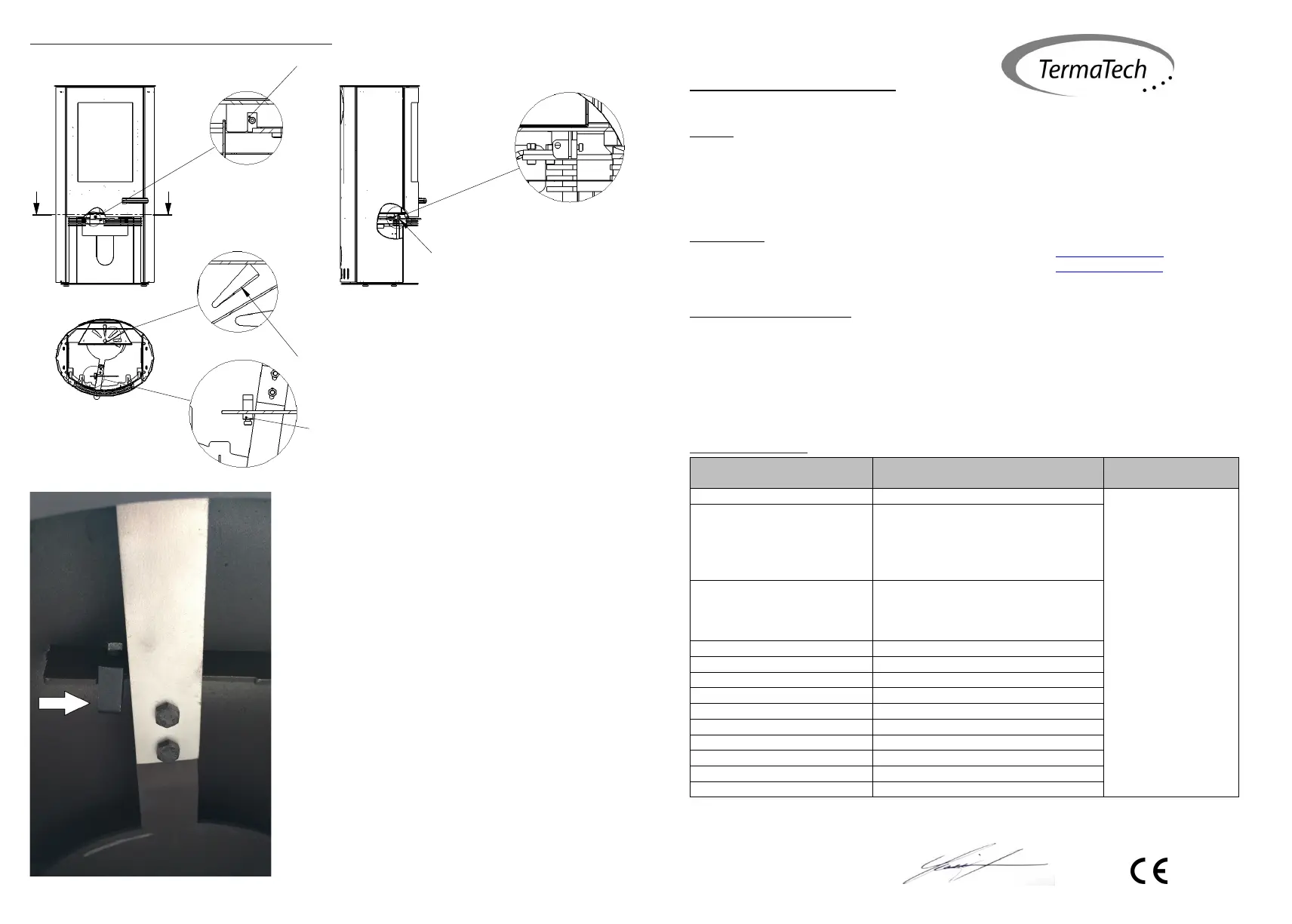

Damper control unit for smoke control areas
A A
Bracket and screw
SECTION A-A
DETAIL B
SCALE 1 : 2
Bracket and screw
DETAIL C
SCALE 1 : 2
DETAIL D
SCALE 1 : 2
Bracket and screw
DETAIL E
SCALE 1 : 2
OPEN
The Bracket make the secondary air open with ca. 40%
If you change the direction of the bracket the
secondary air will be open with ca. 30%.
Material:
Scale:
Tegningsnr. / emnenavn:
Stk. pr. ovn:
Title:
Model:
Initialer:
Revision
1:10
TT20
PROPRIETARY AND CONFIDENTIAL. The information contained in this drawing is the sole property of TermaTech AS.
Any reproduction in part or as a whole without the written permission of TermaTech AS i prohibited.
Denne tegning er vor ejendom, den må ikke kopieres på nogen måde
og ikke gøres tilgængelig for trediemand uden vor skriftelige tilladelse
EMN
-
Created date
40102 TT20 Stove assy - smoke - GB
Jegstrupvej 60
DK 8361 Hasselager
TT20 Stove assy - smoke -GB
25. april 2014
25. april 2014
Rev.
..
Declaration of Performance
TT20-CPR-2011-Version 2
Product:
Product type/application: Room heater burning solid fuel without hot water supply
Type: TT20: S01-600/601, TT20R: S01-602/603, TT20SA: S01-626,
TT20S: S01-618/619, TT20RS: S01-620/621, TT20BAZIC / R: S01-606/608
Fuel: Wood
Productions no. Please see nameplate on the back of the oven
Manufacturer:
TermaTech A/S E-mail: info@termatech.com
Gunnar Clausens Vej 36 Web: www.termatech.com
8260 Viby J Tel.: +45 8742 0035
Denmark
Certification and requirements:
AVCP system: System 3
European standard:
Certification: Rhein-Ruhr Feuerstätten Prüfstelle GmbH, notified body no. 1625, has
performed determination of the product type and declared performance on
the basis of type testing and issued test report no. 40 11 2613. Technologic
Institute, notified body no. 1235, has performed determination of the product
type and declared performance on the basis of type testing and issued test
report no. 300-ELAB-1520-SIK-Rev-1.
Declared performance:
The undersigned is responsible for the manufacturing and conformity with the declared performance.
Viby 1.03.2011 Søren Toft______________________________
Essential characteristics
Performance
Harmonised technical
specification
Reaction to fire
AI
CE/DS/DIN/EN
13240:2001+
A2:2004/AC2007
Distance to combustible materials
Rear: min. 150 / 100mm
Sides: min. 350 mm
To the corner 45⁰ min. 125mm / 100mm
Other safety distances – please see User
and mounting manual
Emission of combustion products
CO = 0,08 %
NOx = 125 mg/m³
OGC = 107 mgC/Nmᶟ
PM = 24 mg/m³
Electrical safety
NPD
Maximum operating pressure
NPD
Risk of burning fuel falling out
Passed
Surface temperature
Passed
Clean ability
Passed
Mechanical strength
Passed
Emission of hazardous materials
Passed
Flue gas temperature
273° Celsius
Output
5,0 KW
Energy efficiency
83,4 %

TermaTech TT21R Specifications

General

Brand	TermaTech
Model	TT21R
Category	Wood stove
Language	English
