The hardware at a glance.

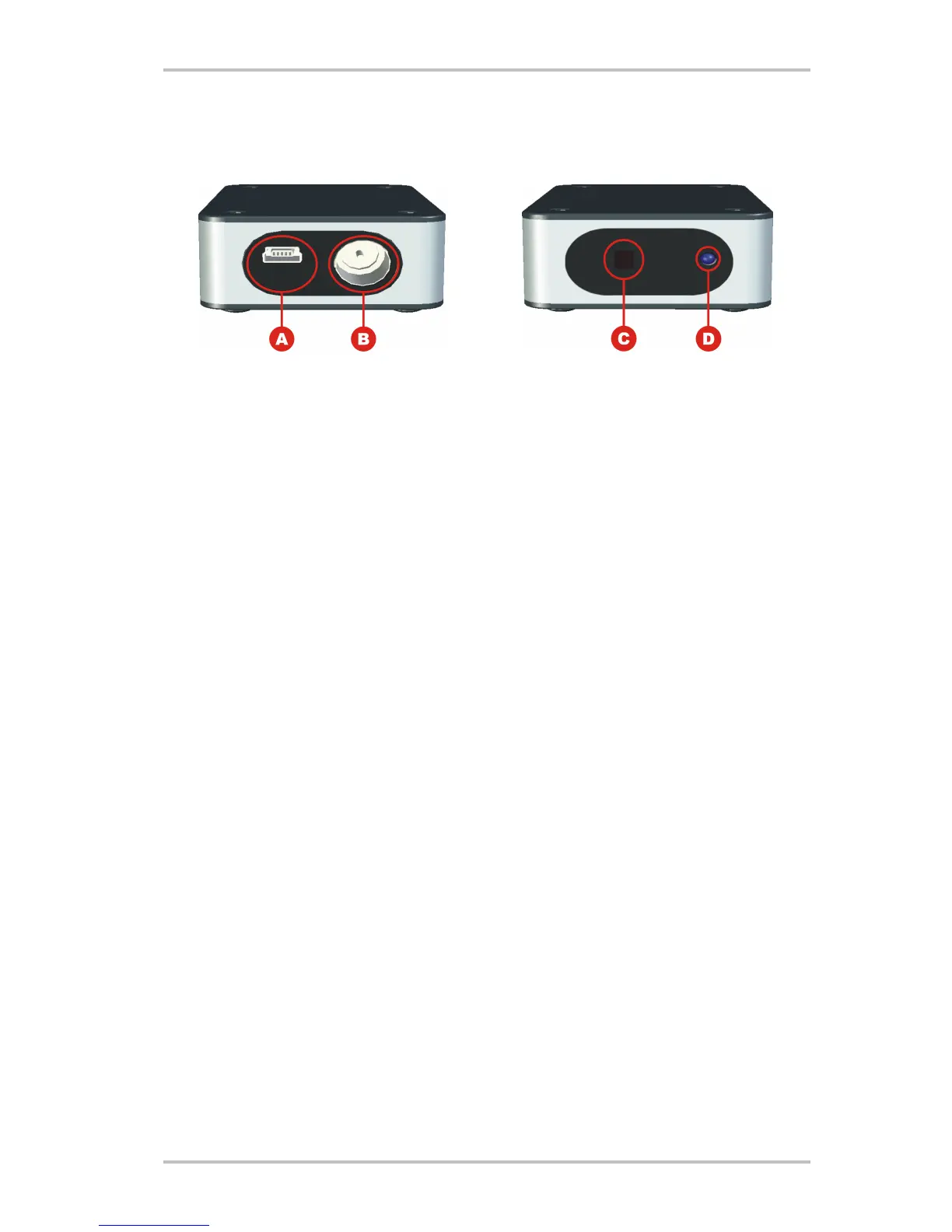

The hardware and connections of the Cinergy T².
A. Mini USB 2.0 connection
B. TV antenna input
C. Infrared receiver
D. Activity LED
TV antenna input
Connect the antenna output of the included magnetic-base rod antenna or another DVB-T-
compatible antenna system to this input.
Mini USB 2.0 connection
Use this socket and the included USB cable to connect the device to your PC.
Activity LED
The activity LED indicates that the application is requesting data from the Cinergy T² via the
USB connection. A good sign.
Infrared receiver
The integrated infrared receiver is used for communication with the remote control. For further
information on the remote control and its software, please refer to the documentation (Auto-
starter à Documentation à Software).
10 Cinergy T² Hardware (English)
