User Guide
6 7
Original Instructions Original Instructions
250W Grass Trimmer
The 250W Grass Trimmer Introduction
This User Guide provides instructions on the correct assembly and safe use of the 250W Grass
Trimmer.
The 250W Grass Trimmer is designed for the cutting of grass and weeds under bushes and
on slopes / edges that cannot be reached with a lawn mower. It is intended for use in private
households and as a hobby device in the garden.
Assembly

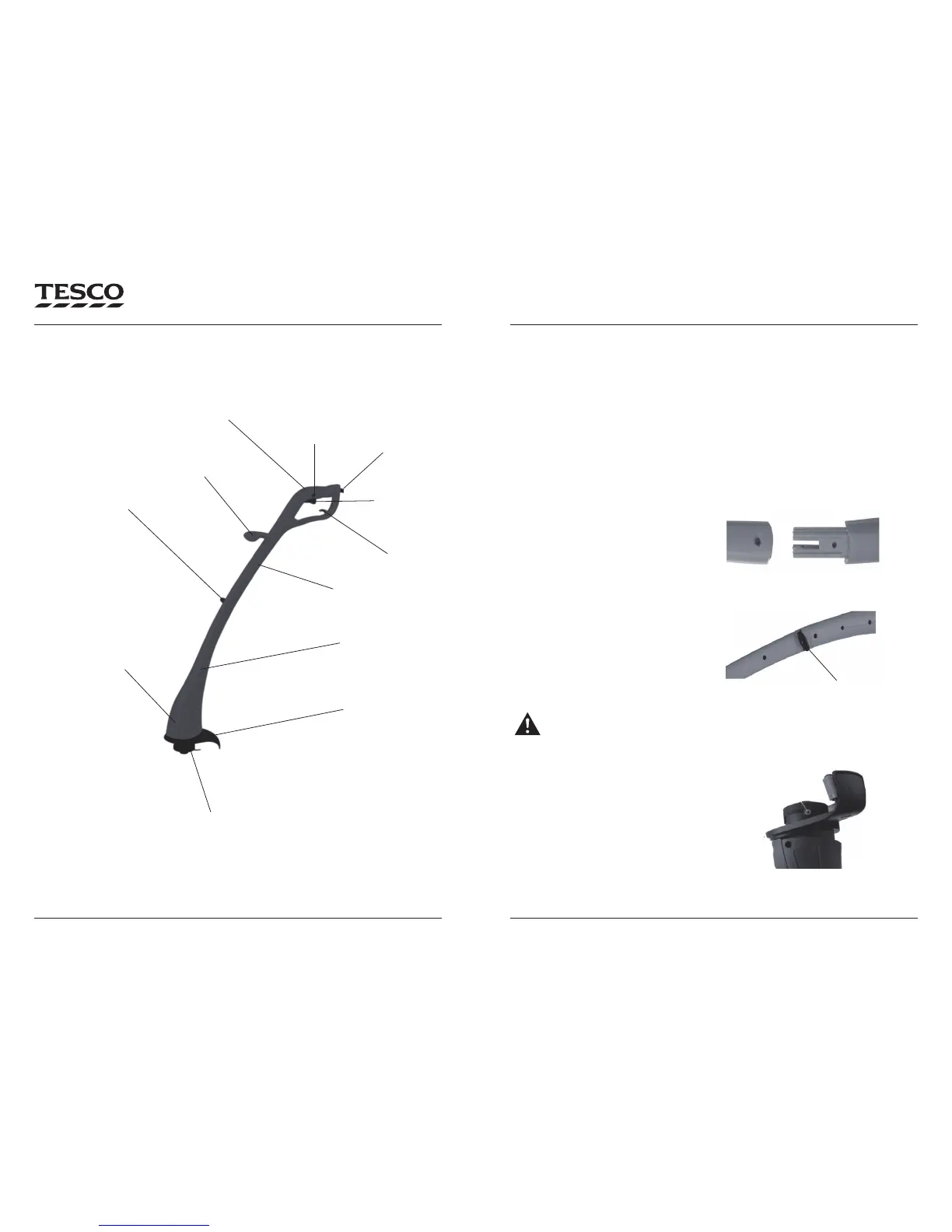

Assembling the Body of the Grass Trimmer
1. Push the Upper Body Section into the Lower
BodySection(g.1)untilthe2setsofholesline
up.
2. Place the nut provided into the hexagonal
groove on the Main handle.
3. Push the locking screw through the circular
hole in the Main Handle and tighten until secure.
(g.2).
Upper Body
On/Off Trigger
Cable Hook
Locking
Screw
Power Cable
Cutting Guard
Cover
g. 1
g. 2
On/Off Switch
Line Spool
Lower Body
Fitting the Cutting Guard Cover
Beware of the sharp blade on the Cutting
Guard Cover.
1. Fit the Cutting Guard Cover to the Trimmer
Head so that the square hole on the Cutting
Guard Cover clips onto the notch on the Trimmer
Head(g.3).
2. Ensure that the screw hole on the Cutting
Guard Cover lines up with the hole on the
Trimmer Head.
Trimmer
Head
g. 3
Locking Screw
Handle
Handle
