7

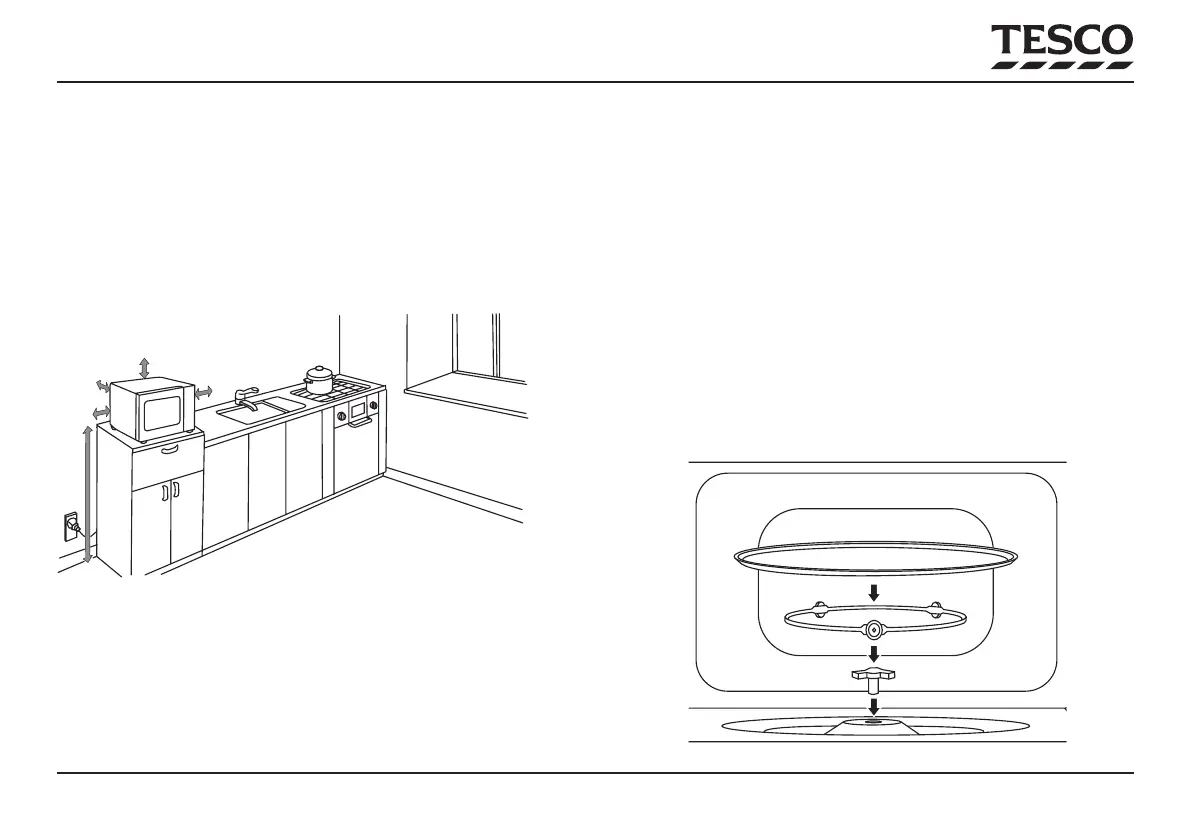

Placement
Place your microwave oven on a at, level stable work surface
at least 85cm above oor height and away from sources of cold,
heat and moisture.
For good ventilation, the rear of the oven should be placed
against the wall, the free distance above the top should be at
least 30cm with a gap of 20cm at the left and right sides. This
oven is not suitable for operation in a cabinet or other enclosure.
Installing the oven
Always operate your microwave oven with the turntable
assembly properly installed.
Open the door. Drop the turntable rotor gently through the hole
in the centre of the oven and locate it on the spindle beneath.
There is a at machined on the spindle to hold the rotor secure
during operation.
Place the support ring in the recess.
Place the turntable on the support ring with the smooth side
uppermost.
Locate the turntable on the rotor and check that it is central to
and properly supported by the ring. Refer to the drawing below.
Close the door.
20cm
30cm
20cm
0cm
