LIFT AREAS
The high voltage battery is located below the floor, under a floor pan. A large section of the undercarriage houses this battery. When lifting Model S, do not push
on the high voltage battery. When lifting or jacking, use only the designated lifting areas.

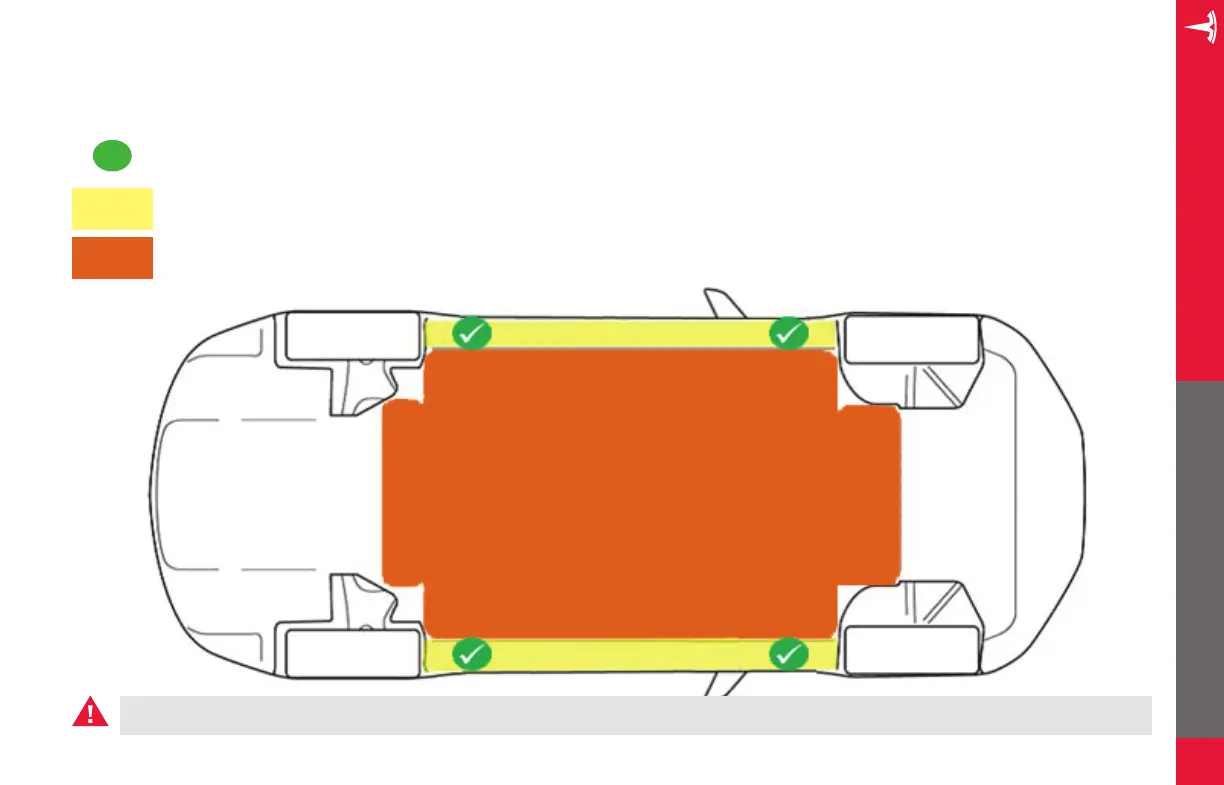

Appropriate lifting locations
Yellow Safe stabilization points for a side-resting Model S
Orange High voltage battery. DO NOT USE THIS AREA TO LIFT OR STABILIZE MODEL S!
LIFTING MODEL S
LIFTING MODEL S
WARNING: Regardless of the disabling procedure you use, ALWAYS ASSUME THAT ALL HIGH VOLTAGE COMPONENTS ARE ENERGIZED! Cutting, crushing or touching high voltage
components can result in serious injury or death.
