TN-18-16-001 R2 Page 5 of 15
HV Battery Assembly Part
Grid Locations
1
Front skid plate
A24 – A30
2
Side ski zones
A23 – J23, A31 – J31
3
Longitudinal skis
A25 – J25, A29 – J29
4
Center ski
A27 – J27
5
Baseplate:
A24 – J24, A26 – J26, A28 – J28, A30 – J30
6
Rear skid plate bracket
K24 – K30
7
Rear skid plate
K25 – K29
Figure 5 – HV battery bottom grid

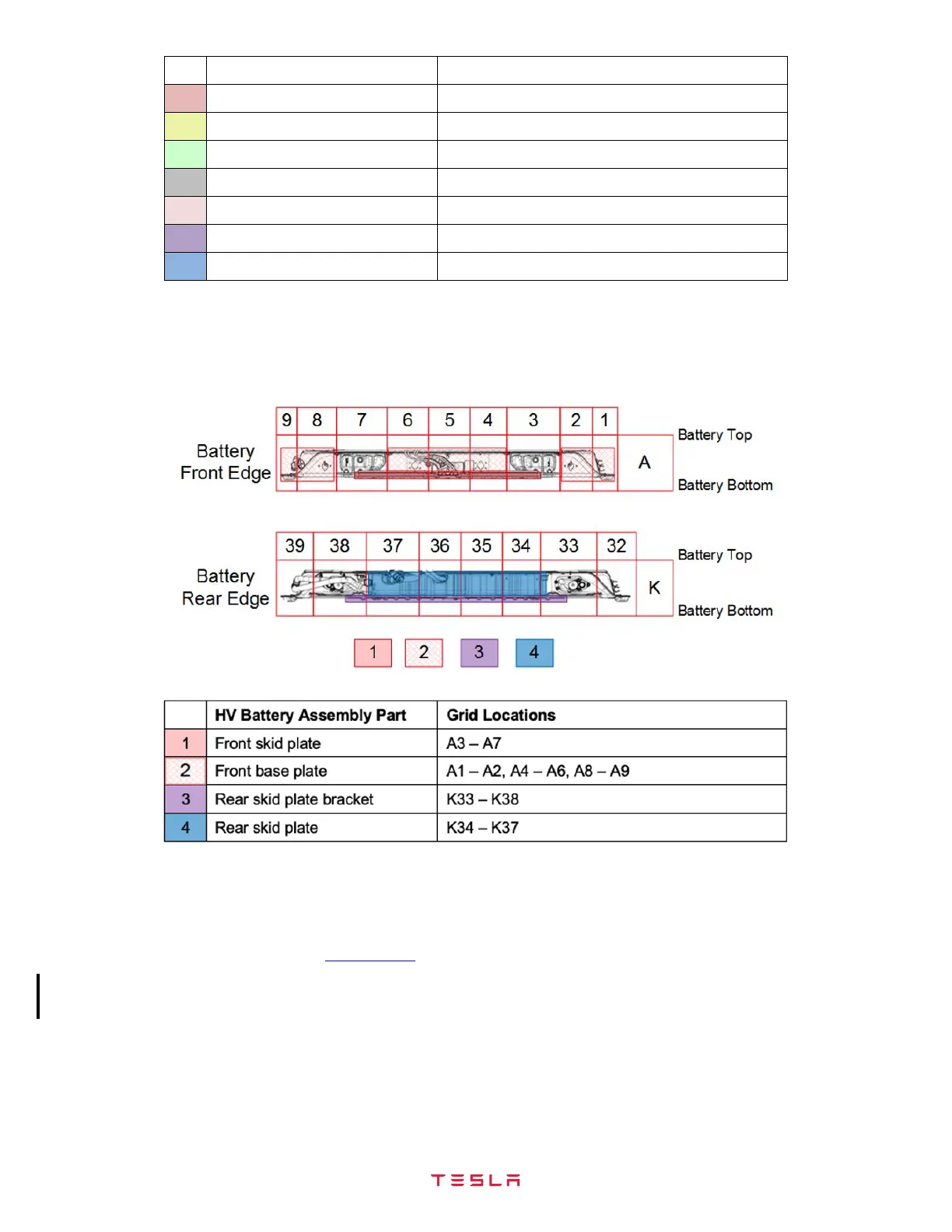

The grid locations for the front and rear edges of the HV battery assembly are shown in Figure 6.
Figure 6 – HV battery edge grid
If there is noticeable damage to the bottom of the HV battery assembly:
1. Create a Toolbox session with Article 37566 marked as an issue.
2. Add the comment “@NACompromisedBattery”, “@EUCompromisedBattery”, or “@APACCompromisedBattery”,
depending on your region,” to add HV battery inspection engineers as watchers.
