3. Collect the following information and upload it to the session:
a. Several pictures of the damage, taken with a high-resolution camera: If there isn’t a visible open hole,
crack, or tear, measure the depth of the HV battery enclosure damage (Figure 7) while wearing proper
PPE. If the damage is not obvious, take an overall picture of the HV battery, with pointers to the damaged
area or areas.

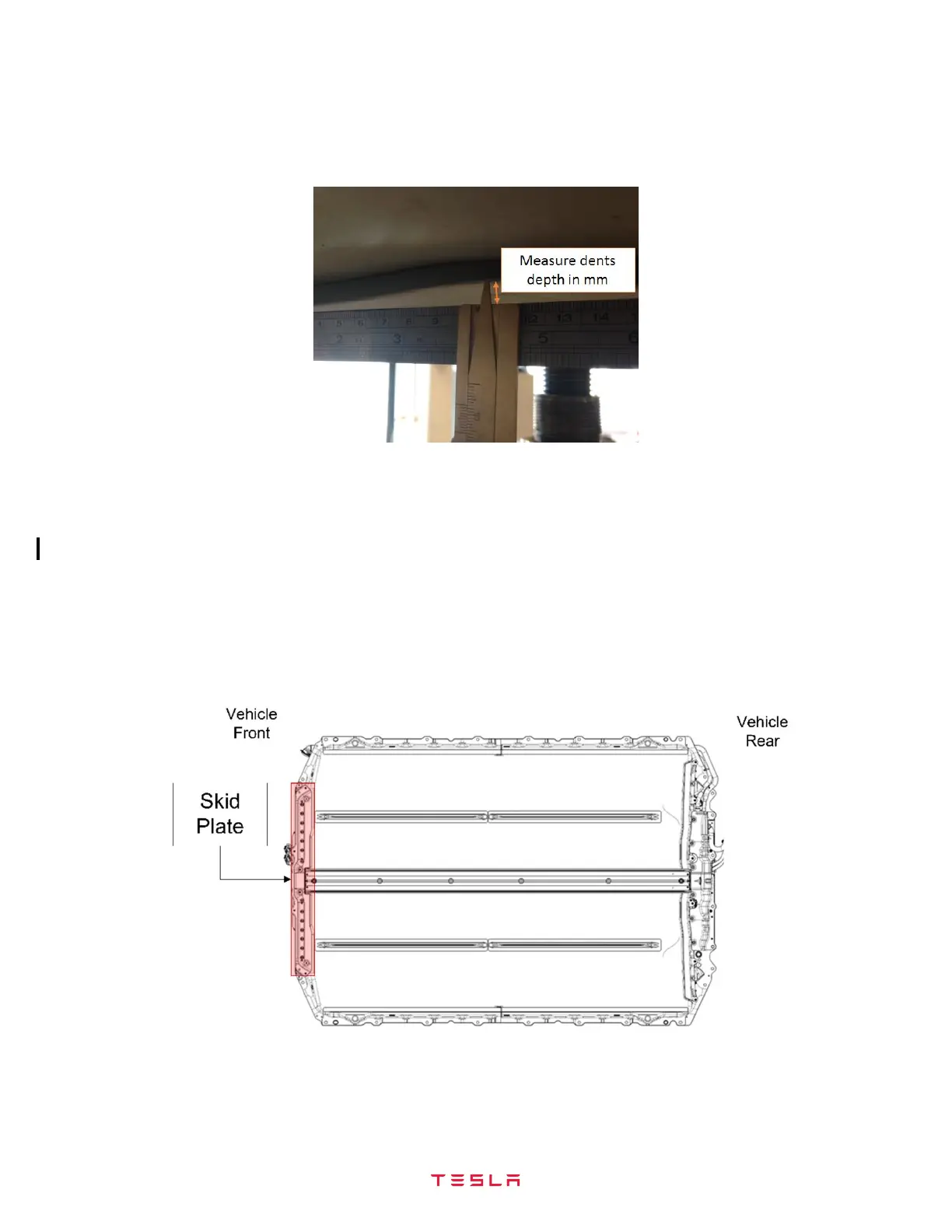

Figure 7 – Measuring the depth of enclosure damage
b. Information from the customer about the incident that may have caused the damage, if available.
c. The location of the damage according to the specific zone.
4. Perform the appropriate repair according to the corresponding zone below.
Front Skid Plate
The front skid plate is located at the front of the HV battery, as shown in Figure 8:
Figure 8 – Front skid plate location
