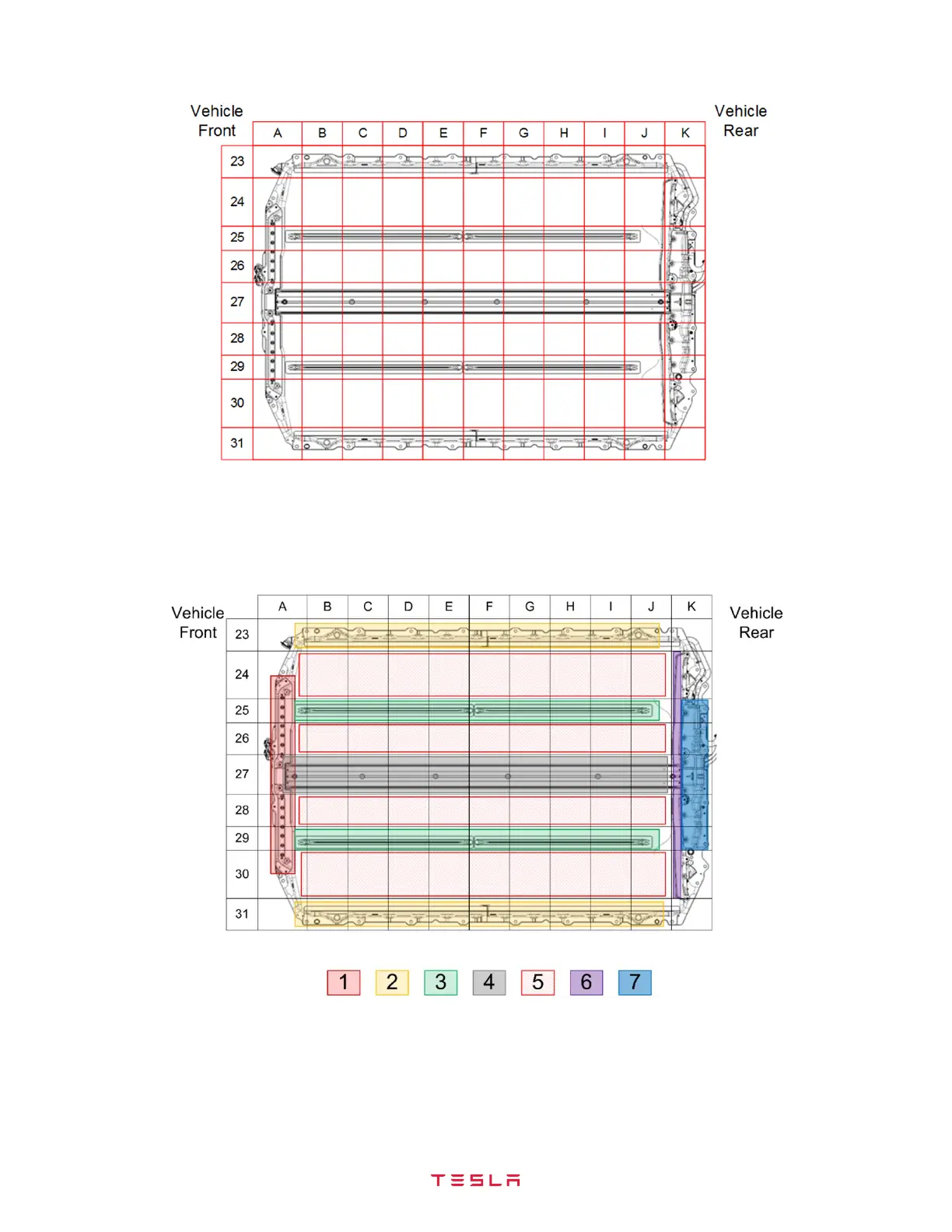

The bottom of the HV battery assembly can be divided into a grid to make it easier to track and report damage (Figure 4).
Figure 4 – HV battery grid layout
The grid locations for the underside components of the HV battery assembly are shown in Figure 5.
