An optional wall mount can be used with your television. Consult with your local dealer for a
wall mount that supports the VESA standard used by your TV model. Carefully attach the wall
mount bracket at the rear of the TV. Install the wall mount bracket on a solid wall perpendicular
to the floor. If you are attaching the TV to other building materials, please contact qualified
personnel to install the wall mount. Detailed instructions will be included with the wall mount.
Please use a wall mount bracket where the device is adequately secured to the wall with
enough space to allow connectivity to external devices.
• Disconnect the power before moving or installing the TV. Otherwise electric shock may
occur.
• Remove the stand before installing the TV on a wall mount by performing the stand
attachment in reverse.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an
authorized wall mount and contact the local dealer or qualified personnel. Otherwise it is
not covered by the warranty.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance
with the installation instructions.
• Use th e screws and wall mounts that meet the following specifications. Any damages or
injuries by misuse or using an improper accessory are not covered by the warranty.
Note:
1) The pictures are for reference only.
2) For the TV sets with terminals towards the wall, in order to leave enough space to use the
terminals, a rubber cushion is needed together with the screw to fix the wall mount. It is a
small hollow pillar whose internal diameter is 8mm, external diameter is 18mm and height
is 30mm.

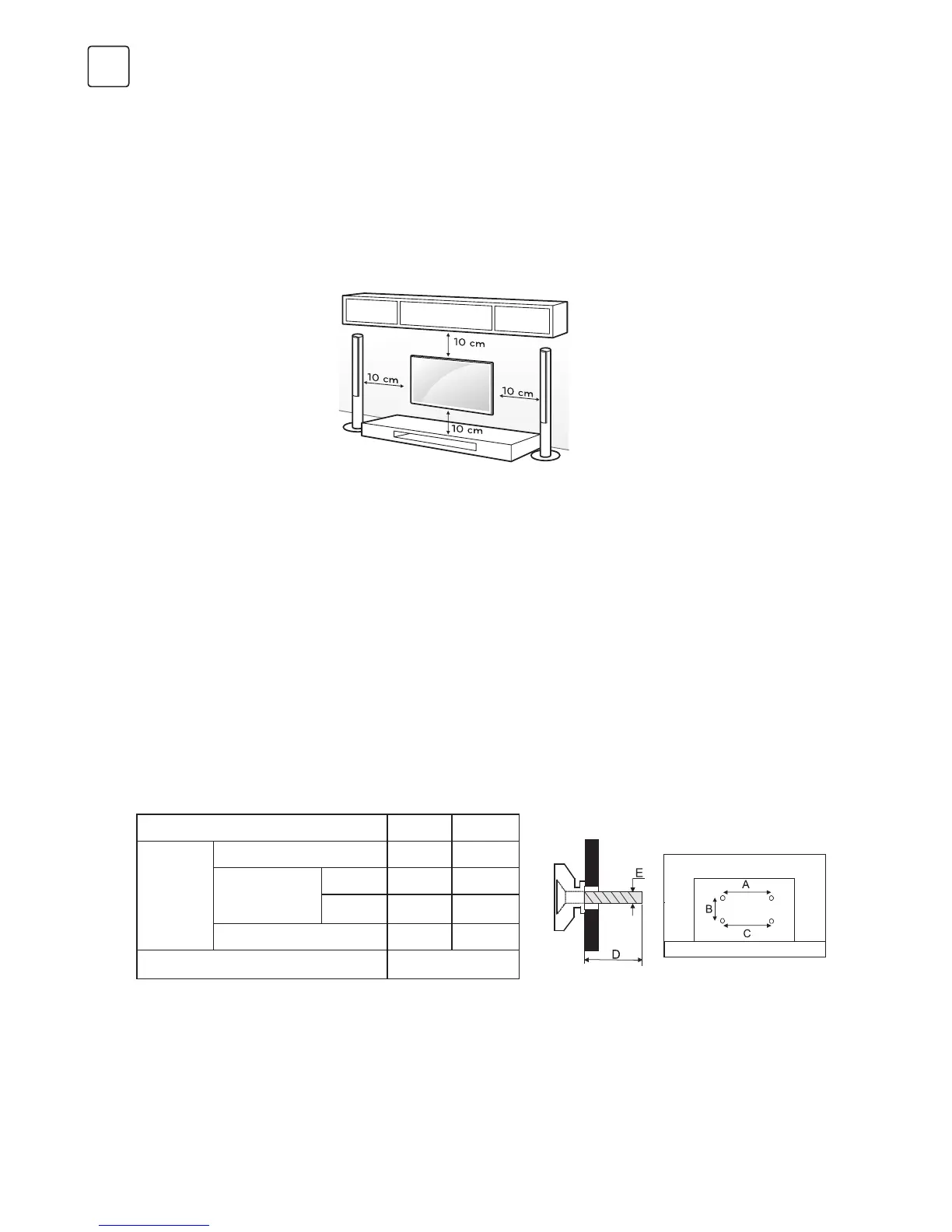

Mounting on a Wall
CAUTION
Model Size: 32" Top Down
Screw
Diameter (mm) "E" M4 M4
Depth (mm)
“D”
Max 9 9
Min 6 6
Quantity 2 2
VESA (AxBxC) 100x100x100
To Next Page
