PULLER-TENSIONER
Model: AFS303
Manual: MI-AFS303-320-00-GB
4.5 ELECTRONIC MULTIFUNCTION DAVICE PAGES

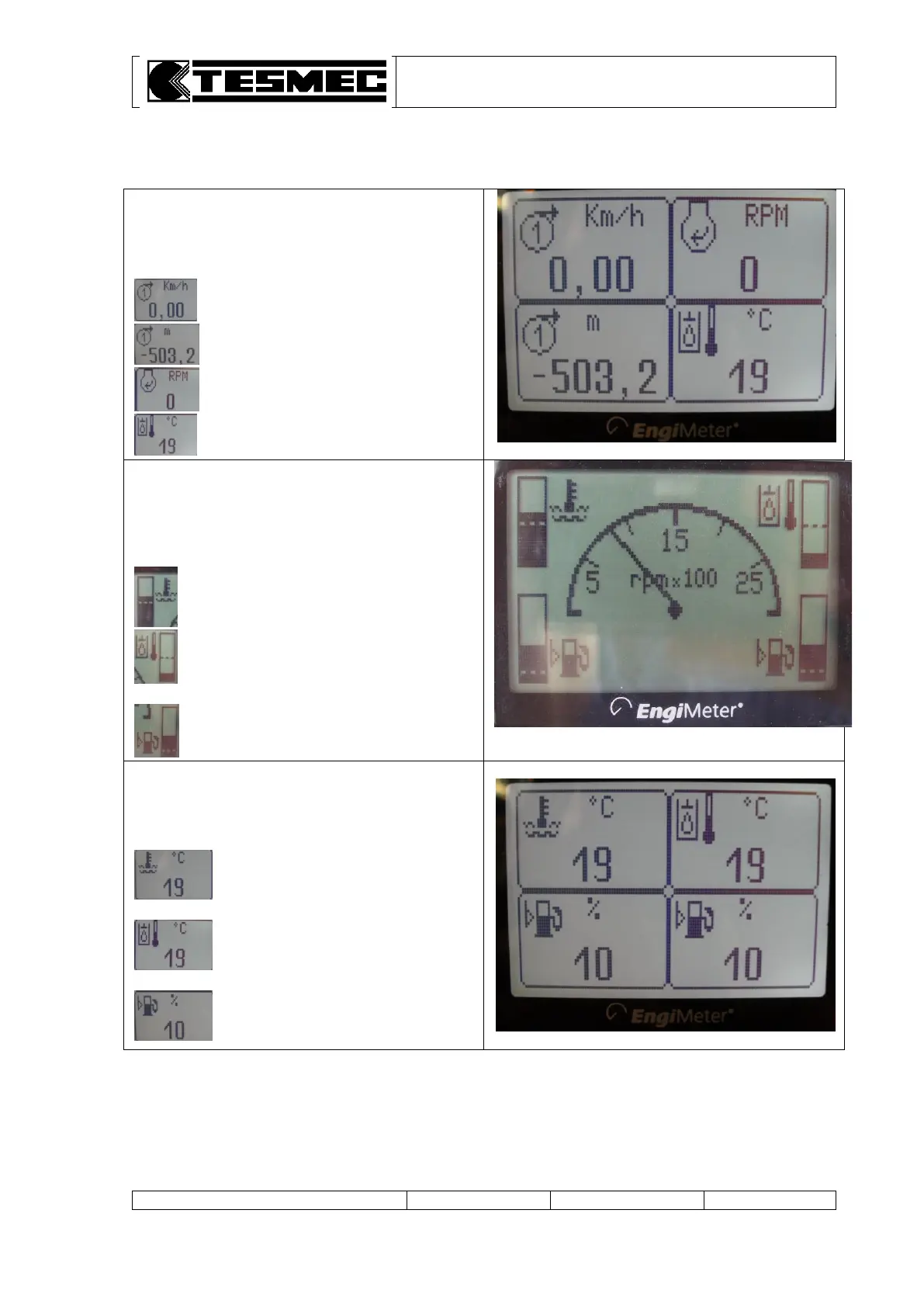

The electronic multifunction display shows 4 working pages:
1. METER COUNTER & SPEED PAGE
This page shows the speed and the meter
counter for each independent circuit
speed of capstan nr.1
meter counter of capstan nr.1
RPM diesel engine
hydraulic oil temperature
2. RPM & DIESEL ENGINE PAGE
This page shows the rpm of the diesel engine in
the center and 4 percentage check icons on the
edges:
diesel engine water cooling temperature
hydraulic oil temperature
diesel engine fuel level
3. DIESEL ENGINE DATA PAGE
This page shows 4 percentage check icons of
diesel engine data:
.diesel engine water cooling
…...temperature
hydraulic oil temperature
diesel engine fuel level
